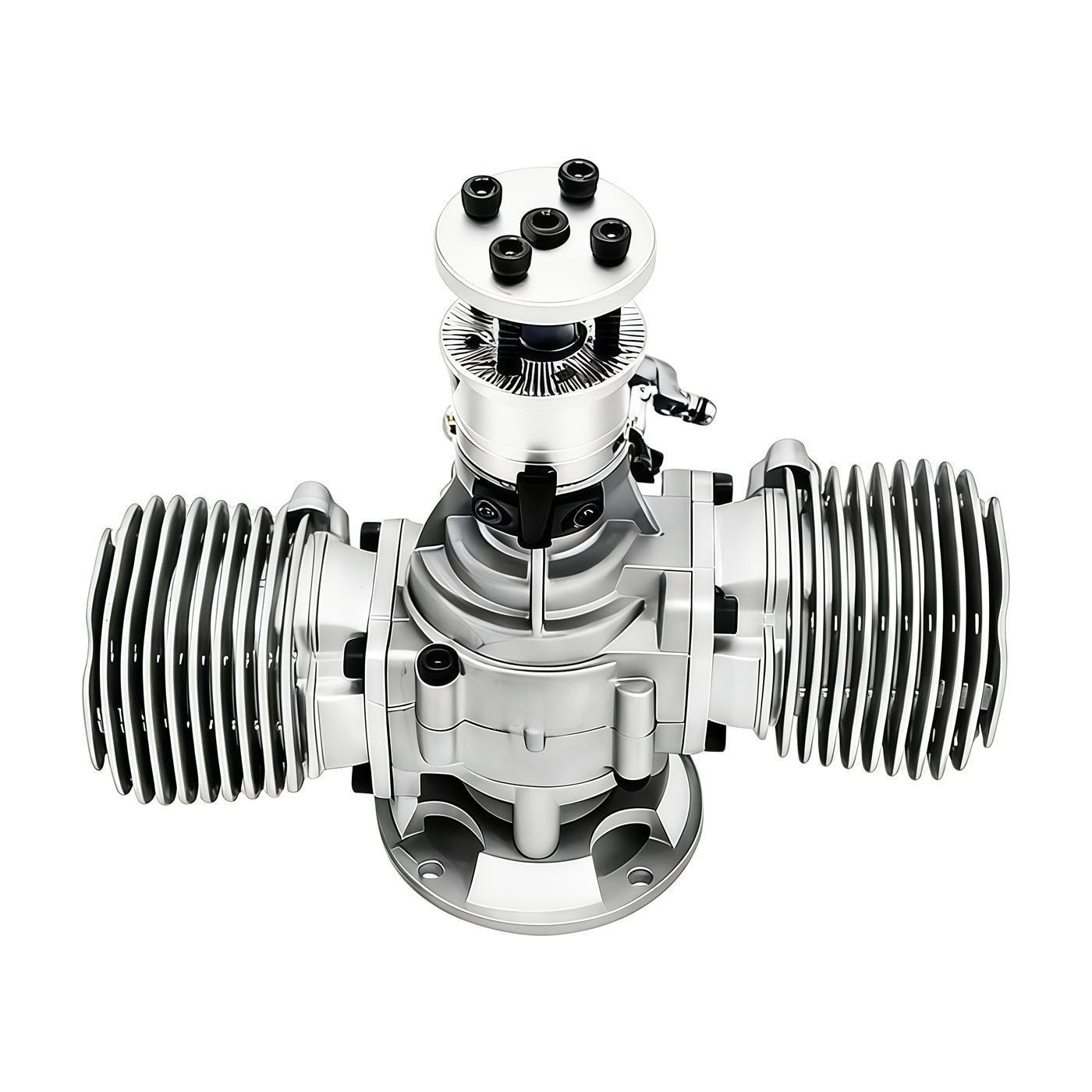

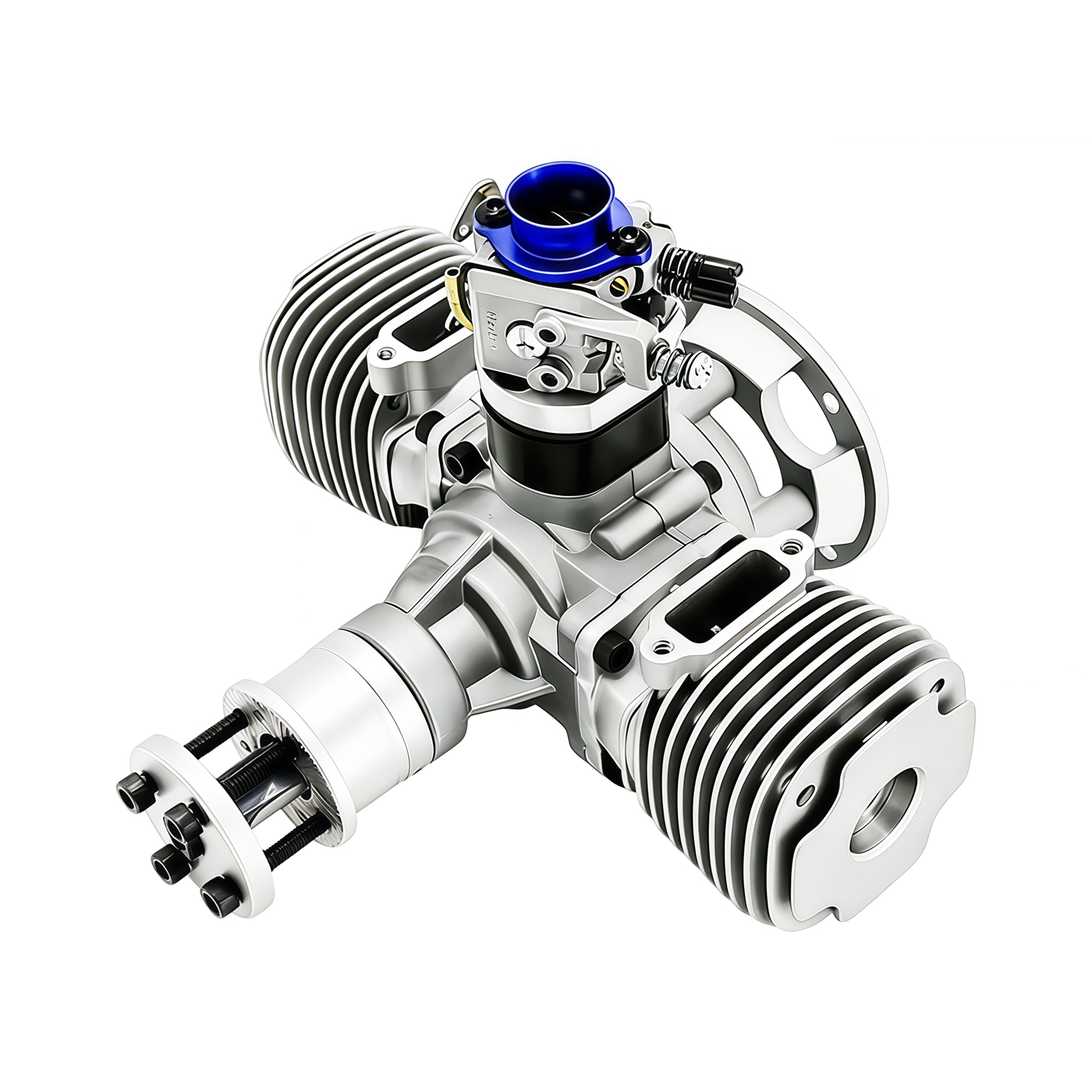

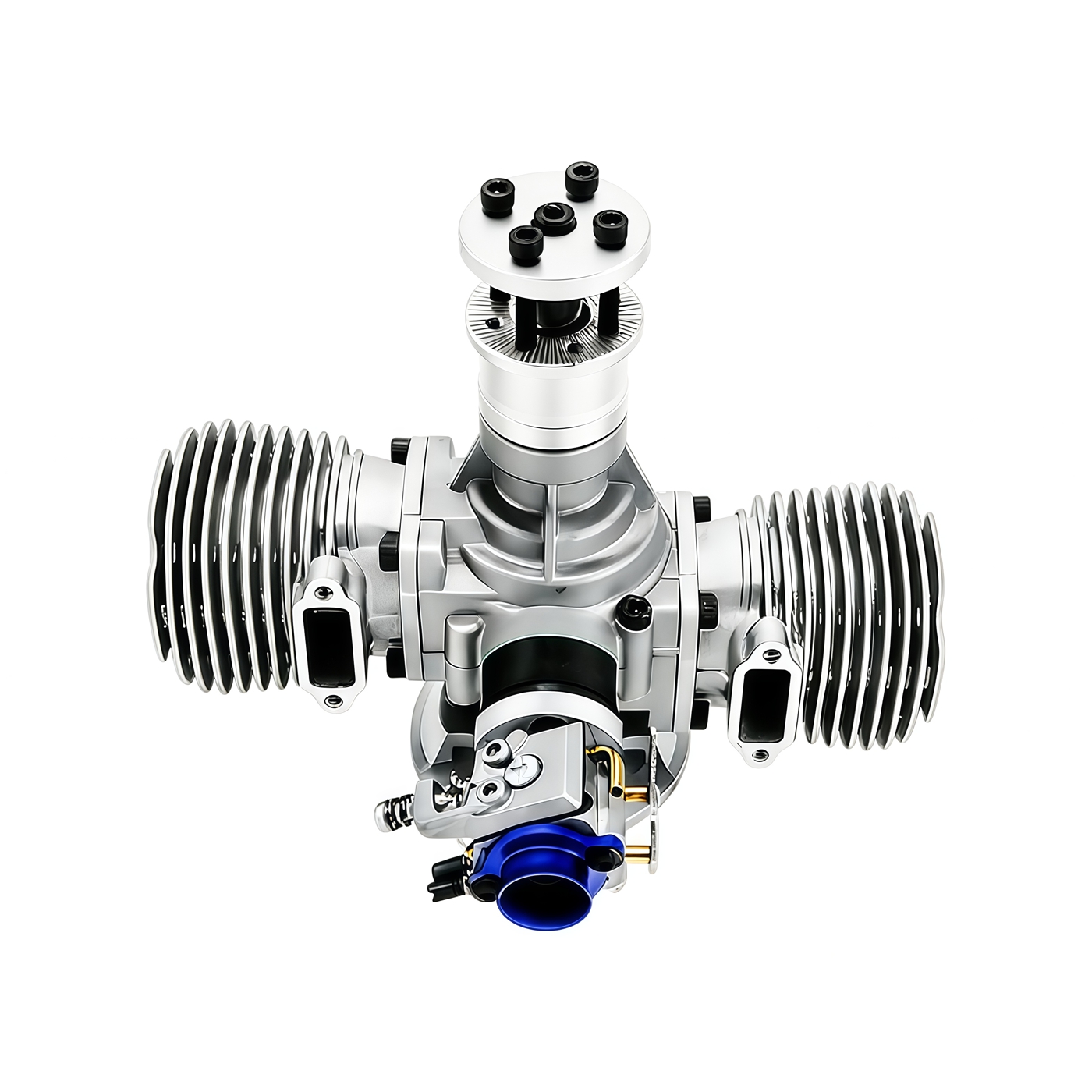

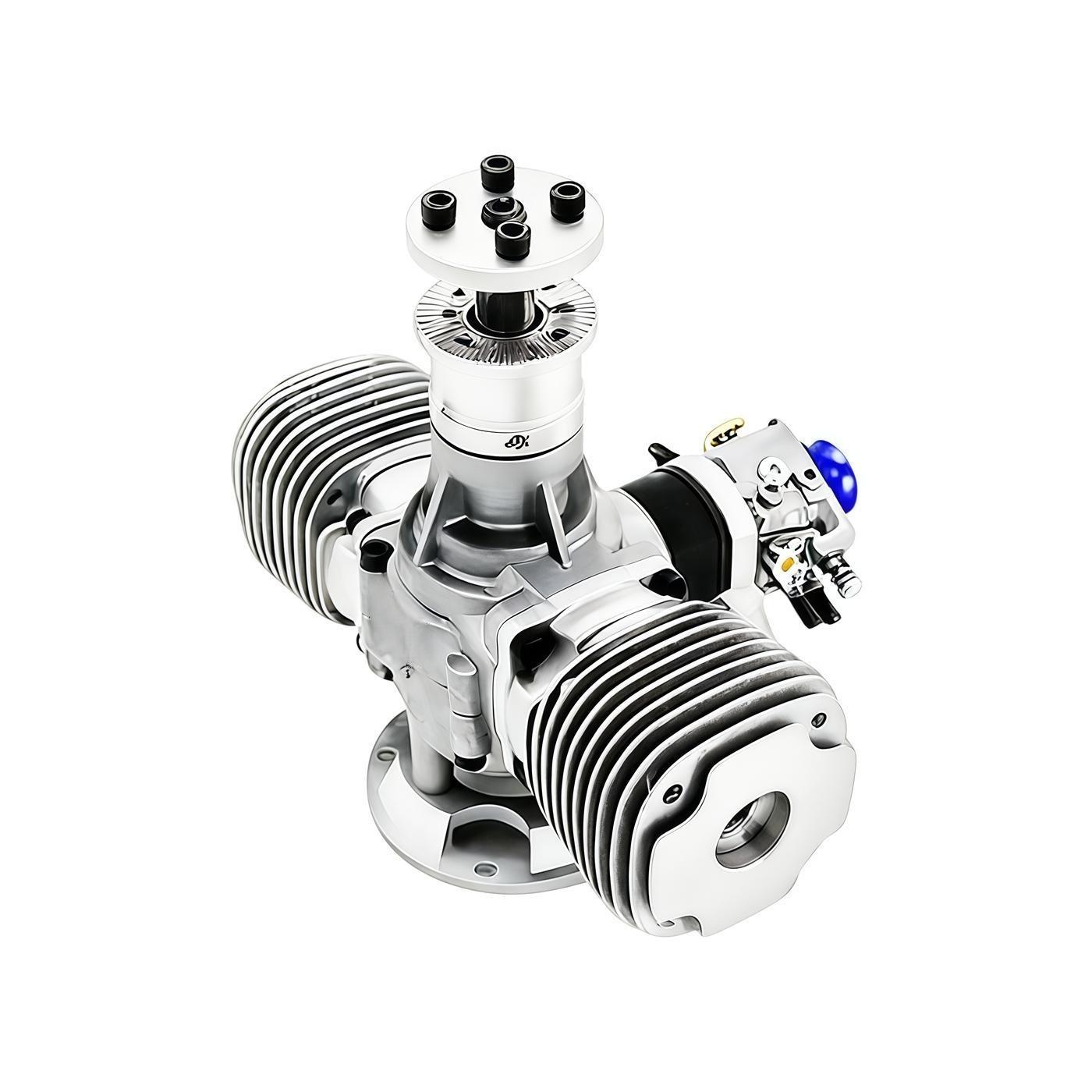

Unleashing Unmatched Power: The China Moneypro MOPGTT70 Gasoline Engine Review
For RC aviation enthusiasts and UAV operators, the quest for a reliable, high-performance gasoline engine is never-ending. Enter the China Moneypro MOPGTT70, a professional-grade two-stroke marvel that redefines expectations in power, precision, and durability. Engineered specifically for demanding applications, this horizontally opposed twin-cylinder engine represents the pinnacle of China Moneypro’s commitment to quality. From its compact structure and beautiful appearance to its stable performance and abundant power, the MOPGTT70 is a game-changer for RC aircraft and fixed-wing UAVs. In this comprehensive guide, we’ll dive deep into what makes this engine stand out, exploring its innovative design and advanced features that have earned high praise from enthusiasts worldwide.
Exceptional Engineering and Design Philosophy
The MOPGTT70 is not just another engine; it’s a testament to precision engineering. Derived from the successful GT35 engine, this twin-cylinder variant is built with a focus on reliability and performance. Every component, from the crankshaft to the cylinder liner, is crafted to exacting standards, ensuring that the engine delivers consistent power under varying loads. The engine’s horizontally opposed layout minimizes vibration, a crucial factor for stable flight in RC aircraft and UAVs. Whether you’re flying a scale model or a high-endurance drone, the MOPGTT70 provides the smooth, responsive power you need.
Precision Forged Connecting Rod with Needle Roller Bearings
At the heart of the MOPGTT70’s durability is its precision forged connecting rod, which incorporates needle roller bearings. This design reduces friction and wear, extending the engine’s lifespan significantly. The use of advanced metallurgy ensures that the rod can withstand the high stresses of continuous operation, making it ideal for both recreational and professional use.
Advanced Crankshaft and Bearing System
The crankshaft is assembled with three high-quality deep groove ball bearings, providing exceptional support and smooth rotation. This configuration minimizes play and enhances the engine’s ability to maintain consistent timing, even at high RPMs. The result is a powerplant that delivers reliable performance flight after flight.
Cylinder Liner Technology: Precision Meets Compliance
One of the standout features of the MOPGTT70 is its cylinder liner, made from wear-resistant nodular cast iron. The bore tolerance is maintained within an astonishing 0.01mm, far surpassing the typical 0.03mm roundness tolerance of aluminum alloy chrome-plated liners. This level of precision ensures optimal compression and efficient fuel combustion, translating to more power and cleaner operation. Additionally, China Moneypro has chosen nodular cast iron over chrome-plated alternatives because the latter does not meet EU environmental regulations. This commitment to eco-friendly engineering without sacrificing performance is a clear differentiator.
Innovative Intake and Ignition Systems
Crankshaft Intake Mode for Accurate Timing
The MOPGTT70 employs a crankshaft intake mode, which offers superior accuracy in opening and closing times compared to reed valve systems. Reed valves suffer from spring delay inconsistencies and varying crankcase negative pressure, leading to imprecise intake timing. By eliminating these variables, the crankshaft intake ensures optimal air-fuel mixture delivery, enhancing throttle response and overall efficiency.
Automatic Timing Synchronization Ignition System
Customized specifically for China Moneypro by Rcxel, the automatic timing angle capacitor discharge system provides double-cylinder synchronous ignition. This setup automatically adjusts timing based on engine speed, maximizing power output while minimizing detonation. The result is a smooth, reliable firing sequence that contributes to the engine’s impressive 7.3HP peak output.
Performance Specifications at a Glance
| Parameter | Value |
|---|---|
| Displacement | 69.92cc (34.96cc x 2) |
| Bore | 37.3mm |
| Stroke | 32mm |
| Practical Speed Range | 1600-8000 rpm |
| Output Power | 7.3 HP / 8300 rpm |
| Tensile Force | 16.5 kg |
| Engine Weight | 2070 g |
| Ignition Weight | 160 g |
| Ignition Power | DC 6V – 14.4V, 1000 mAh |
| Recommended Propeller | 23×8-10, 24×8-10 (Two-blades) |
| Fuel | 92# unleaded petrol + fully synthetic 2T lubricants |
| Lubrication Ratio | Gasoline : Lubricant = 40:1 |
Key Features and Applications
Designed for RC Aircraft and UAVs
The MOPGTT70 is ideal for RC aircraft with takeoff weights of 10-15 kg and fixed-wing UAVs in the same weight class. When equipped with the China Moneypro electric starter, it’s also suitable for vertical takeoff and landing (VTOL) UAVs, offering a versatile power solution for various applications.
Standout Features
- Integrated Welded Single Exit Exhaust Muffler: Effectively reduces noise while improving exhaust flow.
- Front Walbro Carburetor: Ensures reliable operation and simple field debugging.
- CNC Carved Radial Engine Mount: Provides stable installation with minimal vibration.
- Double Nut Locking Output Shaft: Secures propeller attachment for safety.
- Rcxel Automatic Timing Synchronization Ignition: Specially made for China Moneypro, optimizing performance.
- Rcxel Spark Plug CM6: High-quality ignition component for consistent firing.
- High-Quality Bearings: All critical rotating parts are supported by premium bearings for longevity.

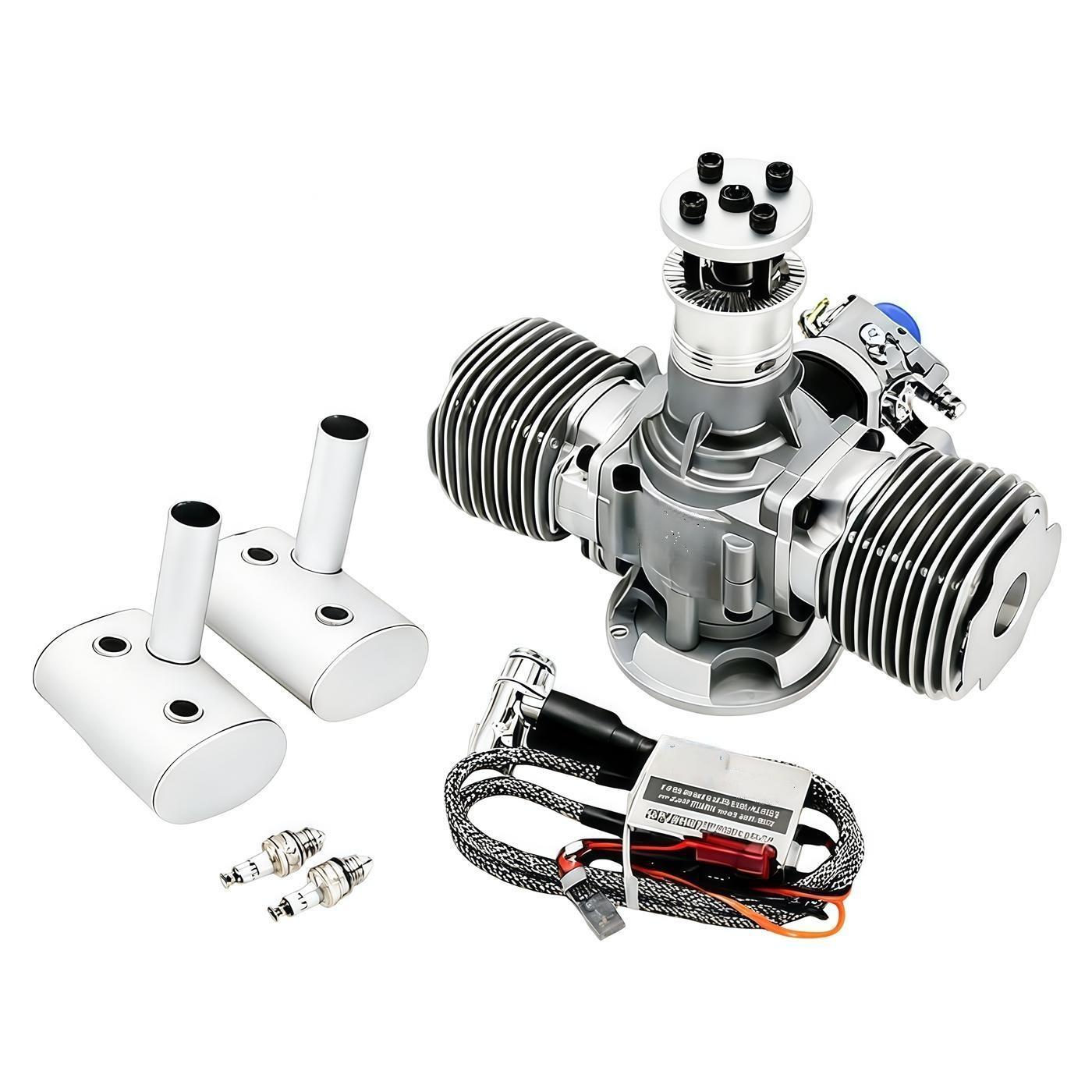

Optional Exhaust System for Enhanced Performance
For those seeking additional noise reduction and power gains, an optional surround exhaust pipe is available. This accessory has been highly praised by RC enthusiasts in Europe and America, effectively improving exhaust scavenging while lowering sound levels. It’s a worthy upgrade for professionals who require discretion and peak efficiency.
Conclusion: Why the MOPGTT70 is a Top Choice
The China Moneypro MOPGTT70 is more than just a gasoline engine; it’s a precision instrument designed to elevate your RC flying experience. With its twin-cylinder configuration, advanced materials, and thoughtful engineering, it offers power, reliability, and environmental compliance in one package. Whether you’re pushing the limits of scale aerobatics or require a dependable powerplant for a UAV mission, the MOPGTT70 delivers consistent performance. From its ultra-precise cast iron cylinder liners to its synchronized ignition system, every detail reflects a commitment to quality. For enthusiasts seeking a professional-grade gasoline engine that excels in both form and function, the China Moneypro MOPGTT70 stands ready to take your projects to new heights.
