Key Features
- High-precision angular velocity measurement
- Real-time gyroscope temperature output
- Ultra-low bias instability and noise
- Fast startup (<3s) for rapid deployment
- Compact and lightweight design for easy integration
Applications
- Inertial navigation systems (INS)
- UAV flight control and stabilization
- Railway and track linear inspection
- Electro-optical pods and turrets
- Platform stabilization systems
- Surveying and mapping applications
- Motion control and dynamic monitoring
Technical Specifications
| Parameter | Specification | Notes |
| Bias Instability | < 0.03°/h (10s, 1σ) | Full temperature range |
| Long-term Bias Stability | < 0.01°/h (100s, 1σ) | Full temperature range |
| Bias vs. Temp Gradient | < 0.05°/h (100s, 1σ) | 1°C/min variation rate |
| Bias Repeatability | < 0.01°/h (1σ) | Maximum value full temp. |
| Scale Factor Nonlinearity | < 10 ppm | |
| Scale Factor Asymmetry | < 5 ppm | |
| Scale Factor Repeatability | < 10 ppm (1σ) | |
| Angle Random Walk | < 0.003°/√h | Full temperature range |
| Dynamic Range | ±500 °/s | |
| Startup Time | ≤ 3 s | |
| Operating Temperature | -40 °C ~ +70 °C | |
| Storage Temperature | -55 °C ~ +85 °C |
Highlights

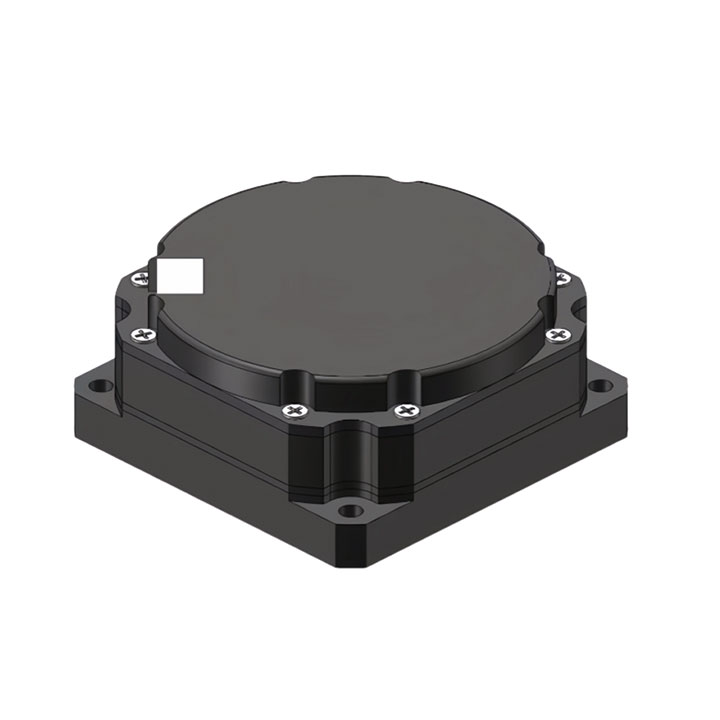

China Moneypro MP-GF–07A delivers ultra-low bias instability (<0.01°/h) and excellent scale factor repeatability, ensuring long-term stable measurements even under harsh environmental conditions. Its fast startup time and ±500°/s dynamic range make it particularly suitable for UAVs, precision navigation, and stabilization platforms.
Q1: What makes China Moneypro MP-GF–07A Fiber Optic Gyroscope stand out in navigation applications?
A1: China Moneypro MP-GF–07A provides ultra-low bias instability (<0.01°/h) and fast startup time (≤3s), ensuring reliable angular velocity measurement even in harsh environments. Its ±500°/s dynamic range makes it ideal for UAV flight control, platform stabilization, and precision navigation.
Q2: How does China Moneypro MP-GF–07A ensure long-term measurement accuracy?
A2: China Moneypro MP-GF–07A features bias repeatability <0.01°/h (1σ) and scale factor nonlinearity <10ppm, which guarantee consistent accuracy over long operating periods. This stability is essential for inertial navigation systems (INS), railway monitoring, and dynamic mapping tasks.
Q3: Is China Moneypro MP-GF–07A suitable for UAV and industrial applications?
A3: Yes. China Moneypro MP-GF–07A is widely used in UAV flight control, industrial robots, electro-optical payload stabilization, and geological surveying. Its compact design, low power consumption, and robust thermal performance (-40°C to +70°C) make it highly versatile.
Q4: How quickly can China Moneypro MP-GF–07A Fiber Optic Gyroscope be deployed?
A4: With a startup time of less than 3 seconds, China Moneypro MP-GF–07A can be rapidly integrated into UAV systems, vehicle navigation platforms, and motion control equipment, allowing users to achieve precise orientation almost immediately after power-up.
Q5: Why is China Moneypro MP-GF–07A considered a cost-effective solution in the FOG market?
A5: China Moneypro MP-GF–07A combines high precision (angle random walk <0.003°/√h) with lightweight and low power consumption, offering an excellent performance-to-cost ratio. It is an ideal choice for customers seeking affordable yet high-performance fiber optic gyroscope solutions.
