Product Features
Default outputs include:
- 3-axis angular velocity
- 3-axis linear acceleration
- System temperature
Applications
- Inertial/satellite integrated navigation
- UAV attitude reference and navigation control
- Radar / infrared / EO pod stabilization platforms
- Fire control and guidance systems
- Vehicle and ship attitude measurement
- Mobile mapping and surveying
- Oil and gas drilling exploration
Performance Specifications
| Parameter | Specification |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Full-Temperature Bias | ≤ 1°/h |
| Bias Stability (1σ, 10s) | ≤ 0.3°/h |
| Bias Repeatability (1σ) | ≤ 0.3°/h |
| Scale Factor Nonlinearity | ≤ 100 ppm |
| Bandwidth | ≥ 200 Hz |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Full-Temperature Bias | ≤ 5 mg |
| Bias Stability (1σ, 1s) | ≤ 0.1 mg |
| Bias Repeatability (1σ) | ≤ 0.1 mg |
| System | |
| Data Update Rate | 200 Hz |
| Electrical Interface | RS422 / RS232 |
| Power Supply | 9 V ~ 36 V |
| Power Consumption | < 10 W |
| Weight | < 1 kg |

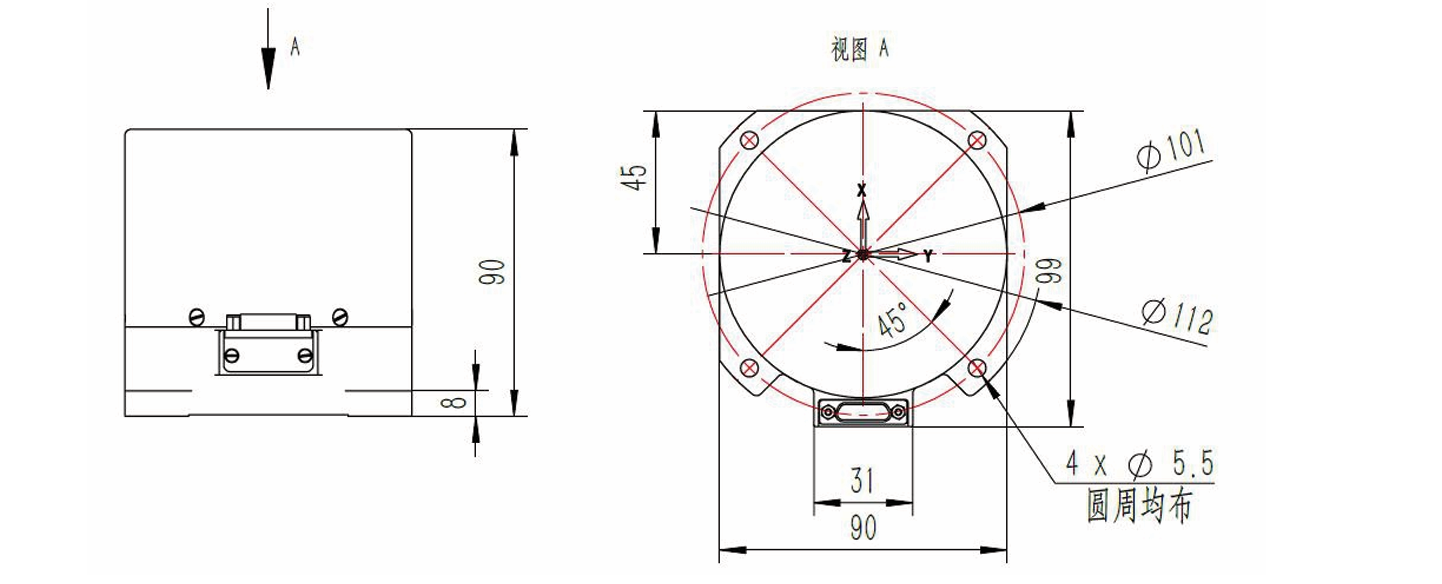

| Dimensions | 99 mm × 90 mm × 90 mm |
| Color | Black |
| Operating Temperature | –40 °C ~ +70 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- High-accuracy fiber optic gyroscope IMU (FOG IMU)with low bias drift
- Advanced error compensation for both static and dynamic environments

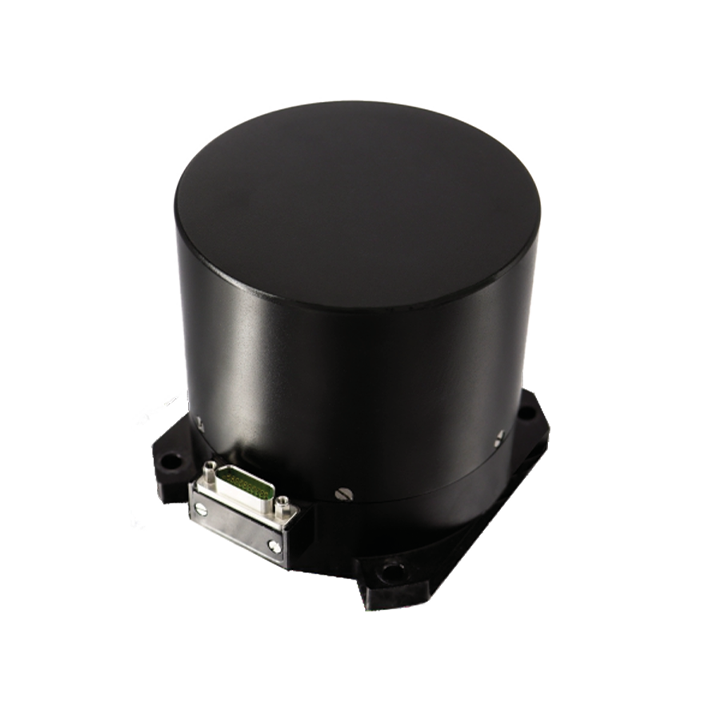

- Rugged cylindrical housing designed for aerospace and industrial integration
- Wide input voltage range (9–36 V) and moderate power consumption (< 10 W)
- Reliable performance in long-duration missions and GNSS-denied environments
FAQs
Q1: How does China Moneypro MP-IMU0303 compare to other brand fiber optic IMU?
A1: China Moneypro MP-IMU0303fiber optic gyroscope IMU (FOG IMU) is designed with a rugged cylindrical housing and weighs < 1 kg, making it slightly heavier than other brand (< 800 g). While both offer gyro bias stability ≤ 0.3°/h, China Moneypro MP-IMU0303 supports RS422/RS232 dual interfaces and a broader power input range (9–36 V), giving it more flexibility for industrial and defense integration.
Q2: What are the accuracy specifications of China Moneypro MP-IMU0303?
A2: China Moneypro MP-IMU0303 high precision IMU achieves:
- Gyroscope bias stability ≤ 3°/h (1σ, 10s)
- Accelerometer bias stability ≤ 1 mg (1σ, 1s)
- Scale factor nonlinearity ≤ 100 ppm
With a bandwidth ≥ 200 Hzand a 200 Hz data update rate, it provides reliable measurements for navigation, control, and dynamic surveying
Q3: In what scenarios is China Moneypro MP-IMU0303 better suited than lighter IMUs?
A3: Thanks to its robust design, dual communication interfaces, and < 10 W power consumption, China Moneypro MP-IMU0303 is particularly suitable for:
- Pipeline inspection and mobile mapping
- Drilling and exploration platforms
- Heavy UAVs and unmanned ground vehicles (UGVs)
- Radar/EO/IR stabilization systemsrequiring stable integration
Q4: Can China Moneypro MP-IMU0303 operate reliably in extreme environments?
A4: Yes. The IMU operates in a wide temperature range of –40 °C to +70 °C and can be stored down to –55 °C. With its rugged housing and stable power design, the NV-IMU3030 is built for aerospace, industrial, and defense-grade environments where durability is essential.
Q5: What are the main integration advantages of China Moneypro MP-IMU0303?
A5: China Moneypro MP-IMU0303 FOG IMU offers:
- RS422 + RS232 dual interface supportfor flexible system integration
- Wide input voltage range (9–36 V) compatible with various platforms
- High-speed error compensationfor both static and dynamic measurements
- Strong performance in GNSS-denied navigation systemsand long-term missions
