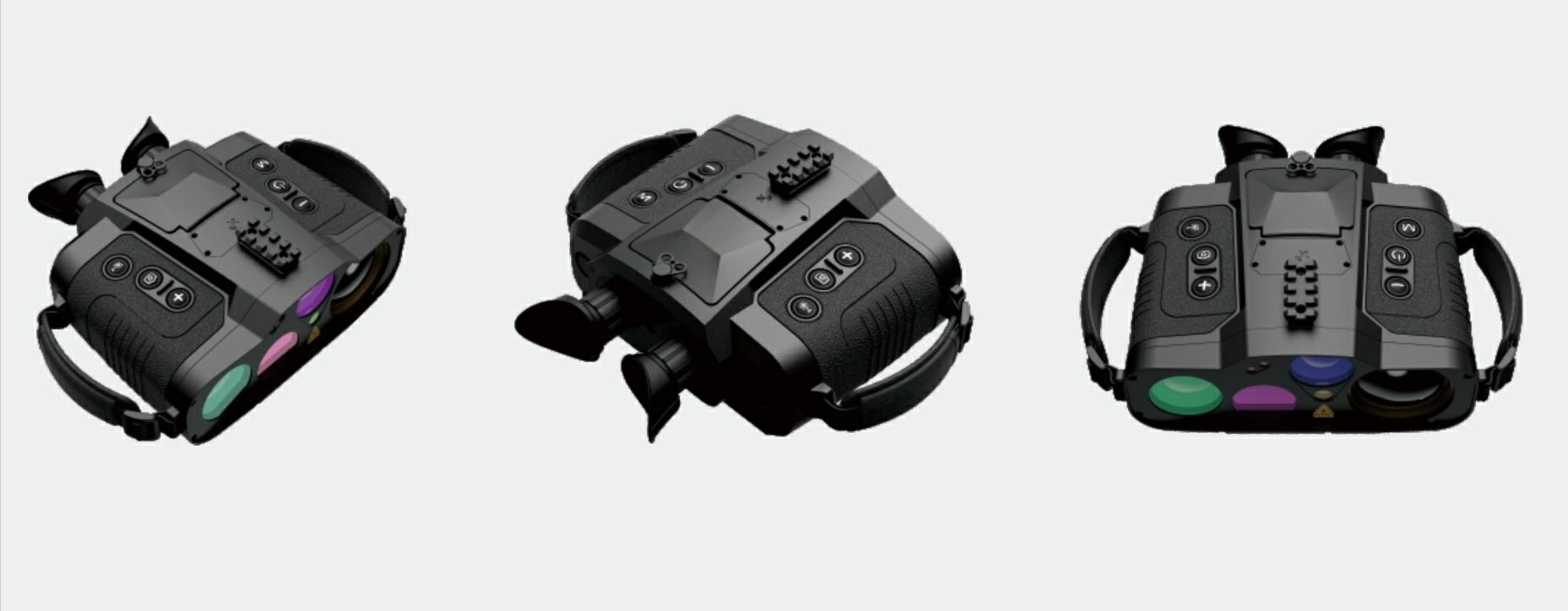

China Moneypro MY5222 Long-Range Multifunction Thermal Binoculars (Uncooled Type)

China Moneypro MY5222 is a multi-functional intelligent observation system engineered for advanced security and battlefield reconnaissance applications. It integrates infrared, visible light, low-light, laser rangefinding, and laser designation into a unified platform with cutting-edge image fusion technology.

Equipped with an embedded positioning module, electronic compass, and Wi-Fi, the system enables real-time target geolocation, marking, and reporting, supporting continuous 24/7 monitoring and search operations. Its HD photo/video recording, rapid data transmission, and instant mission reporting deliver mission-critical intelligence with high precision and efficiency.

This binocular provides unmatched multi-scenario adaptability, operating effectively under extreme conditions such as total darkness, glimmer, fog, or complex terrain, ensuring superior tactical support.

Categories: ,
Description

Key Features

  • Integrates infrared, visible light, low-light, laser rangefinding, and laser designation for multi-scenario adaptability.
  • Embedded BD + GPS + GLONASS positioning module, electronic compass, and Wi-Fi for real-time geolocation and data transmission.

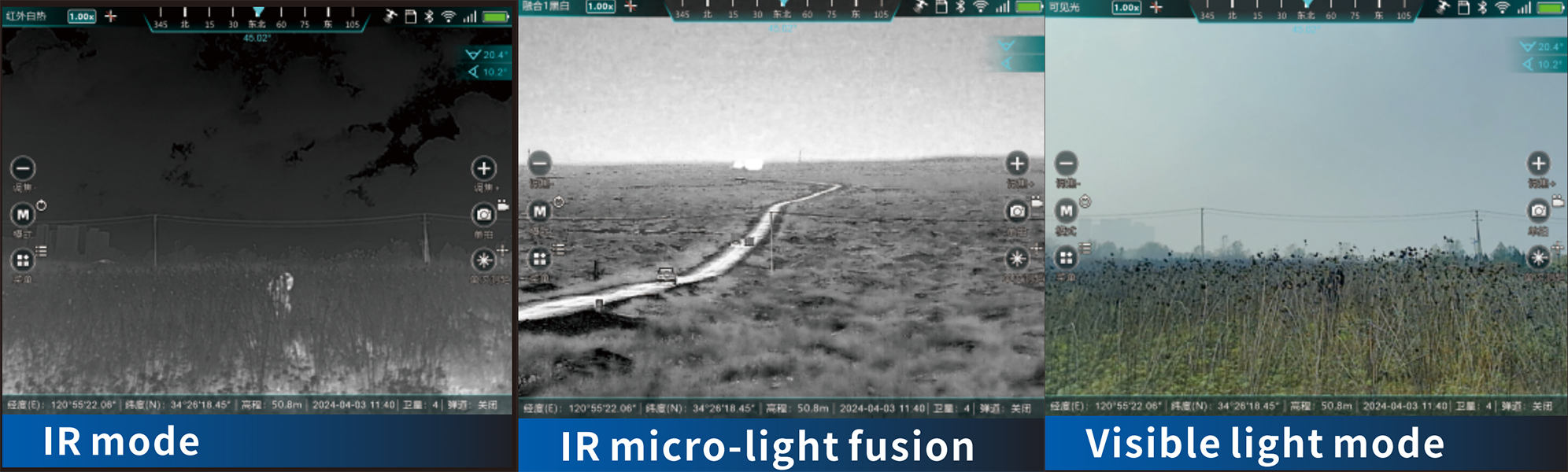

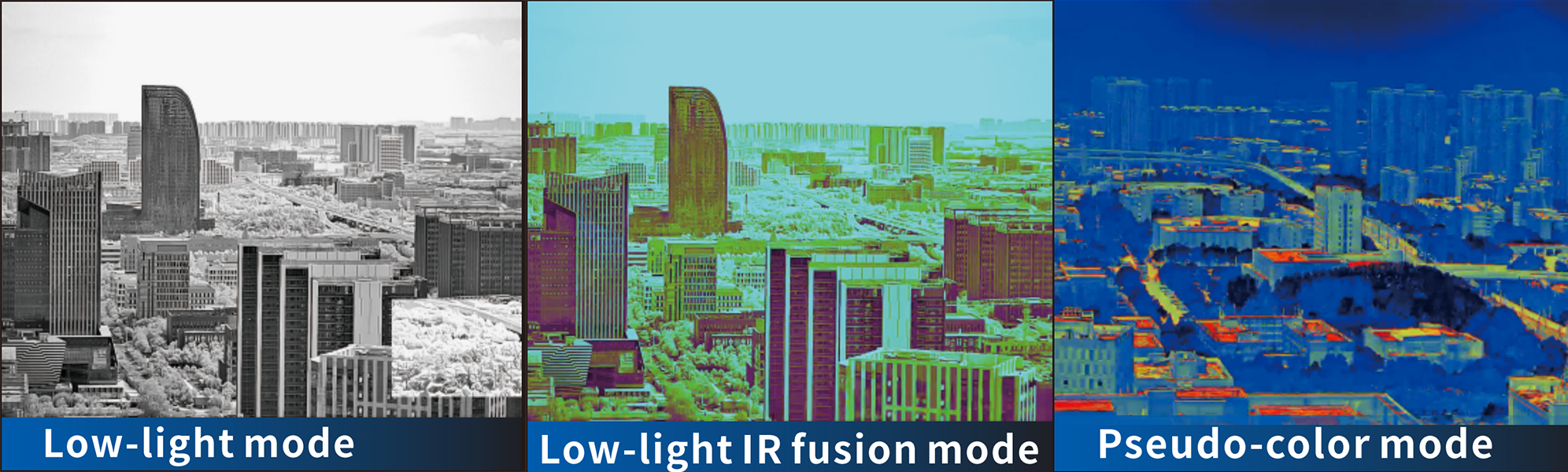

  • Supports infrared-visible fusionand infrared-low-light fusion modes for enhanced recognition.
  • Long-range reconnaissance capability for both day and night, adaptable to varied environmental conditions.
  • Integrated high-precision laser rangefinderfor rapid and accurate distance measurement.
  • Captures operator’s local geographic coordinatesand precisely measures target geolocation.
  • Provides azimuth measurementof targets, enabling comprehensive tactical intelligence.
  • HD photo/video recordingensures clear documentation and post-mission analysis.
  • Rapid Wi-Fi/Bluetooth data transmissiondelivers instant mission reports for decision-making.
  • Enhances combat personnel efficiency through real-time battlefield intelligence.



China Moneypro MY5222 Long-Range Multifunction Thermal Binoculars (Uncooled Type)



Technical Parameters

Optical Specifications

  • Thermal Camera
  • Detector Type: Uncooled IR FPA
  • Resolution: 1280 × 1024 @12μm
  • FOV: ≥12° × 9°
    • Day Camera
  • Detector: Color HD CMOS
  • Resolution: 1/1.8″, 4MP
  • FOV: ≥2.1° × 1.7°
    • Low-Light Camera
  • Detector: HD CMOS
  • Resolution: 1280 × 960 @12μm
  • FOV: ≥17° × 13°

Laser Rangefinder

  • Wavelength: 535 μm (Eye-safe)
  • Range: 50m – 9000m
  • Precision: ≤2m

Positioning & Orientation

  • Positioning Mode: BD + GPS + GLONASS
  • DMC Accuracy: ≤0.5°
  • Self-Position Precision: CEP ≤5m, PE ≤5m
  • Target Locating Precision: CEP ≤10m (target @ 2km)

Laser Designation

  • Wavelength: 830nm / 660nm
  • Performance Range: >600m (Low), >2000m (High)

Image Display

  • Infrared: Contrast & brightness adjustable; switch between white hotand black hot
  • Visible Light: Supports defog + brightness/contrast adjustment
  • Low Light: Brightness & contrast adjustable

Magnification & Frame Rate

  • Magnification: 0× – 4.0× continuous optical zoom & E zoom
  • Frame Rate: 25Hz

Physical & Power

  • Weight: ≤2.4kg (without battery)
  • Battery: 6 × Military 18650 Rechargeable Batteries
  • Operation Time: ≥10hrs(ambient temperature)
  • Interface: USB / PAL / RS232 / HDMI / WiFi / Bluetooth / External power supply
  • Protection: IP67
  • Operating Temperature: -40°C ~ +55°C
  • Storage Temperature: -55°C ~ +70°C

Effective Range

  • Infrared (IR)
  • Personnel Recognition: 5km
  • Vehicle Recognition: 2km
  • Personnel Detection: 3km
  • Vehicle Detection: 6km
    • Visible Light
  • Personnel Recognition: 4km
  • Vehicle Recognition: 6km
  • Personnel Detection: 8km
  • Vehicle Detection: 12km
    • Glimmer
  • Personnel Recognition: 4km
  • Vehicle Recognition: 8km
  • Personnel Detection: 8km
  • Vehicle Detection: 6km



China Moneypro MY5222 Long-Range Multifunction Thermal Binoculars (Uncooled Type) China Moneypro MY5222 Long-Range Multifunction Thermal Binoculars (Uncooled Type)



5 Professional FAQs

Q1: What makes the China Moneypro MY5222 superior compared to conventional thermal binoculars?
A1: China Moneypro MY5222 integrates thermal, day, and low-light imaging with laser designation & geolocation, offering unmatched multi-environment adaptability and real-time battlefield intelligence.

Q2: How accurate is the laser rangefinding and geolocation capability?
A2: The laser rangefinder achieves ≤2m precision up to 9km, while geolocation accuracy is CEP ≤10m (at 2km), making it highly reliable for tactical operations.

Q3: Can the China Moneypro MY5222 operate in extreme environments such as deserts or arctic regions?
A3: Yes, with an IP67 rating, operating range of -40°C to +55°C, and storage range -55°C to +70°C, it is fully ruggedized for desert, jungle, or arctic missions.

Q4: What data sharing options are available for team coordination?
A4: China Moneypro MY5222 supports Wi-Fi, Bluetooth, USB, RS232, HDMI, and PAL video outputs, ensuring flexible and rapid integration into command & control networks.

Q5: How long can China Moneypro MY5222 operate continuously on a single charge?
A5: Powered by 6 × Military 18650 rechargeable batteries, it supports ≥10 hours of operation, ensuring endurance for extended field missions.
