FNV-16 Thermal＆nightvision fusion monocular

It is a electronic monocular used for observation,equipped with both night vision and thermal cameras.During day and night,it present high quality image with not only prominent target but
also rich details of surrounding environment. It is very useful tools for searching/scanning/confirming target.

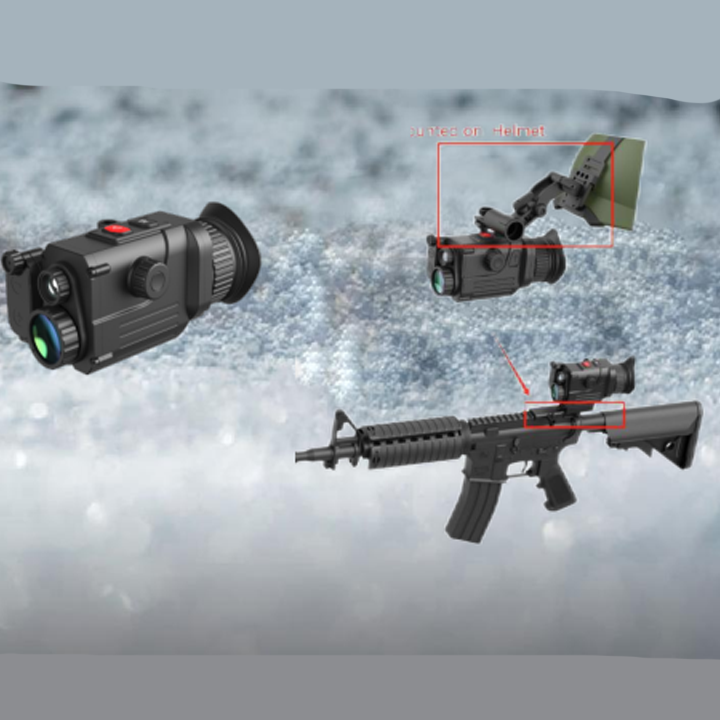

It is lightweight and small size,easy to carry and hold,can be used as single hand monocular. It can also be used as scope or goggle with accessories.

It can work at extreme condition like high-low temperature, high humidity and heavy rain. It is robust,reliable and ergonomic,very easy to use like a hammer.

Categories: ,
Description

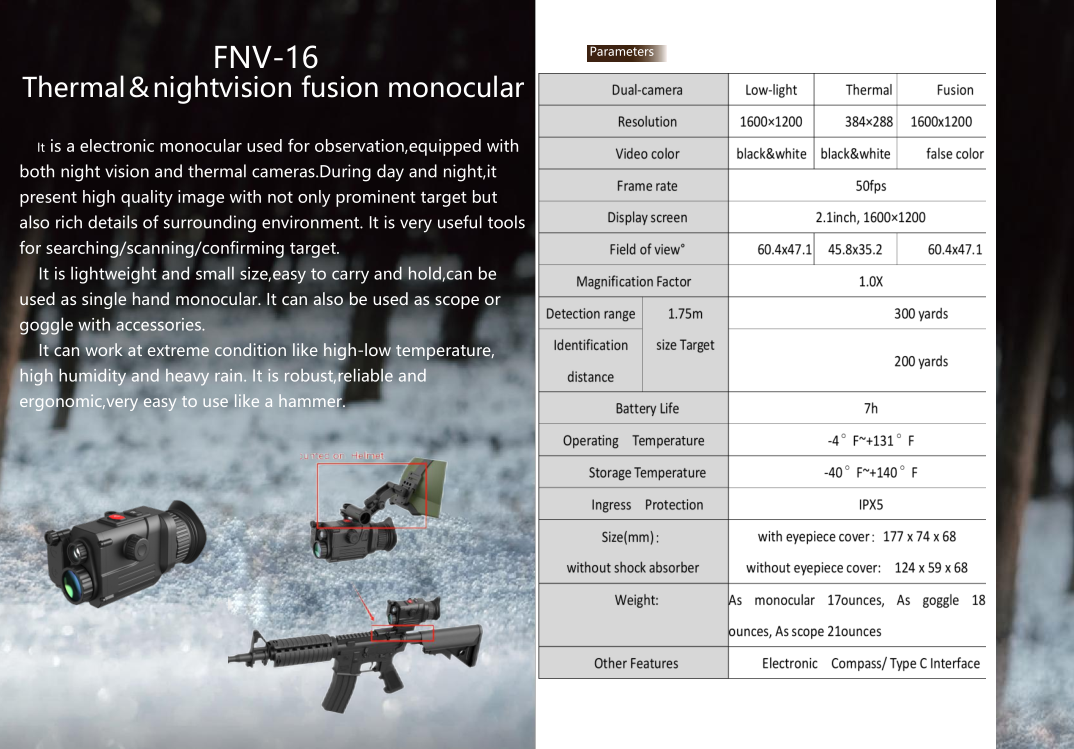

FNV-16 Thermal＆nightvision fusion monocular Parameters

Dual-camera Low-light Thermal Fusion
Resolution 1600×1200 384×288 1600×1200
Video color black&white black&white false color
Frame rate 50fps
Display screen 2.1inch,1600×1200
Field of view° 60.4×47.1 45.8×35.2 60.4×47.1
Magnification Factor 1.0X
Detection range 1.75m size Target 300 yards
Identification distance 200 yards
Battery Life 7h
Operating Temperature -4°F~+131° F
Storage Temperature -40°F~+140°F
Ingress Protection IPX5
Size(mm): without shock absorber with eyepiece cover:177 x74 x 68
without eyepiece cover:124 x59 x68
Weight: As monocular 17ounces, As goggle 18 lbunces, As scope 21ounces
Other Features Electronic Compass/ Type CInterface

FNV-16 Thermal＆nightvision fusion monocular
