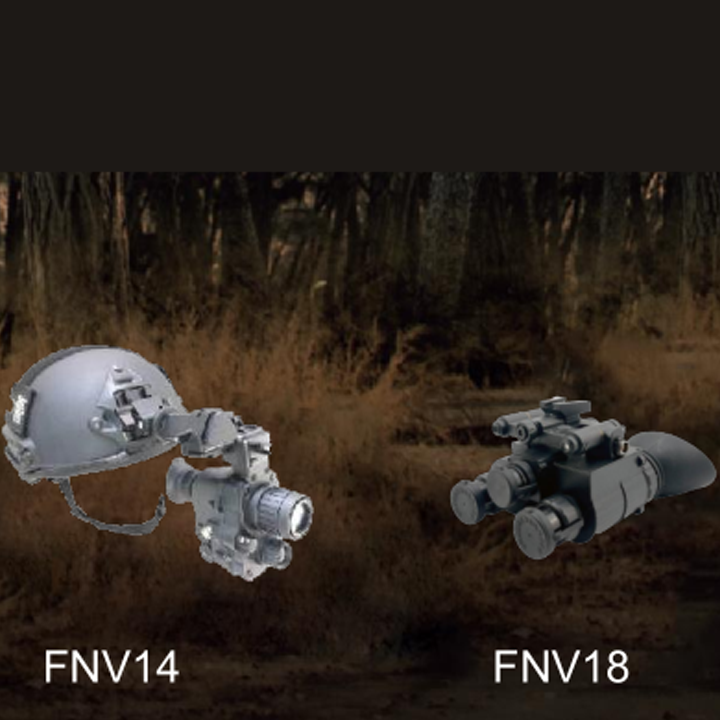

FNV14/18Fused Night Vision Binocular

FNV14/18 can realize infrared and microlight imaging. By coupling the microlight night vision image and infrared thermal imaging image, the user is able to observe the microlight and infrared imaging image through the eyepiece at the same time, maximizing the combination of the advantages of the two systems, enhancing the microlight night vision goggles to observe the use of the effect of the detection and observation of the target to get a great deal of improvement in the ability to detect and observe. The product is suitable for night operation observation, can carry out close equipment operation, reading, maintenance, but also for night terrain, features, light vehicles and other distant targets to implement observation.

Categories: ,
Description

FNV14/18Fused Night Vision Binocular Features

Advanced optical design technology to ensure the ultra-wide field of view
Advanced man-machine efficacy design, to meet the different needs of use
Advanced structural shooting, compact and lightweight, sturdy and durable

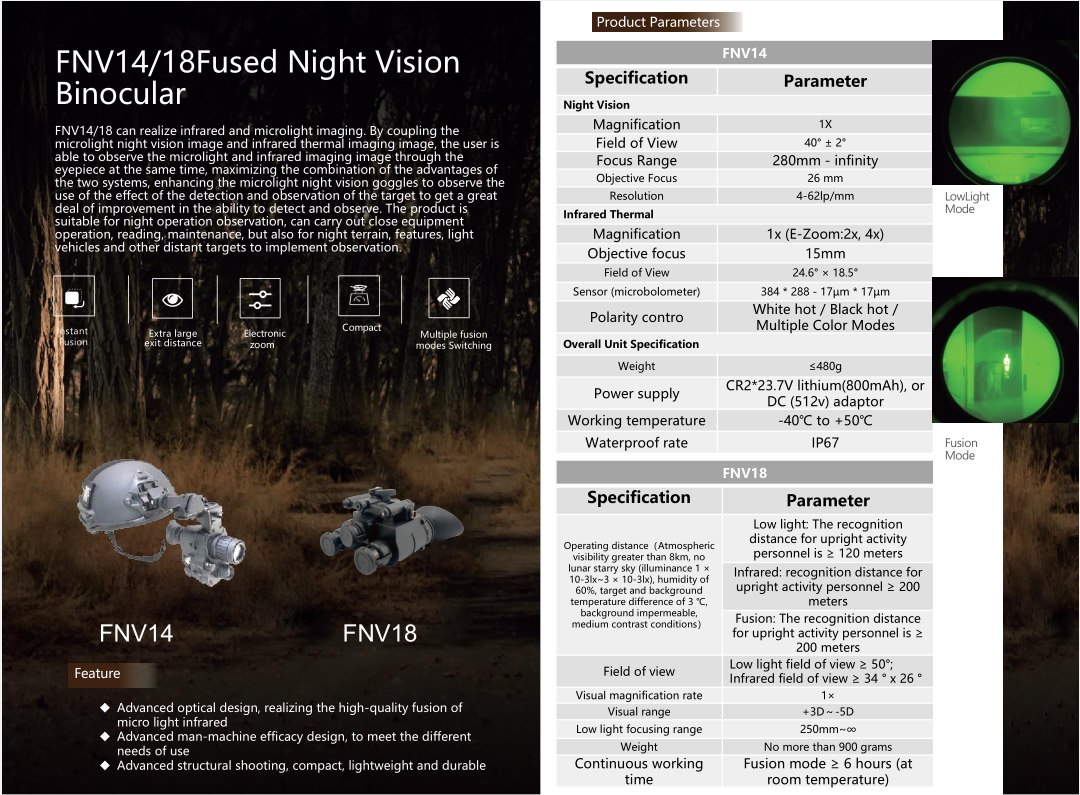

FNV14/18Fused Night Vision Binocular Parameters

FNV 14
Specification Parameter
Night Vision
Magnification 1X
Field of View 40° ± 2°
Focus Range 280mm-infinity
Objective Focus 26 mm
Resolution 4-62lp/mm
Infrared Thermal
Magnification 1x (E-Zoom:2x, 4x)
Objective focus 15mm
Field of View 24.6° x 18.5*
Sensor (microbolometer) 384*288-17μm*17um
Polarity contro Whitehot/Blackhot/Multiple Color Modes
Overall Unit Specification
Weight ≤480g
Power supply CR2*23.7V lithium(800mAh),or DC (512v) adaptor
Working temperature -40C to +50C
Waterproof rate IP67
FNV 18
Specification Parameter
Operating distance (Atmospheric visibilitygreater thankm, no lunar stary sky illuminance 1 x10-3lx~3 × 10-3lx), humidity of 60%, target and background
temperature difference of3℃, background impermeable, medium contrast conditions)		 Low light The recognition distance for upright activity personnel is > 120 meters
Infrared: recognition distance for upright activity personnel ≥ 200 meters
Fusion: The recognition distance for upright activity personnel is ≥ 200 meters
Field of view Low light field of view ≥ 50°;
Infrared field of view ≥ 34°x 26 °
Visual magnification rate 1x
Visual range +3D~-5D
Low light focusing range 250mm~00
Weight No more than900grams
Continuous working time Fusion mode ≥ 6 hours (at room temperature)

FNV14/18Fused Night Vision Binocular
