🚨 Industry Pain Points
In modern navigation, UAVs, robotics, and industrial control systems, users commonly face critical challenges:
- Sensor drift under temperature variation
- Measurement instability in high-dynamic environments
- Installation alignment errors affecting accuracy
- Limited performance in harsh or vibration-heavy conditions
- Compatibility issues when replacing existing IMU systems
- High integration cost when upgrading legacy systems
These problems often lead to reduced positioning accuracy, unstable control performance, and increased system integration complexity.
⚙ Product Advantages

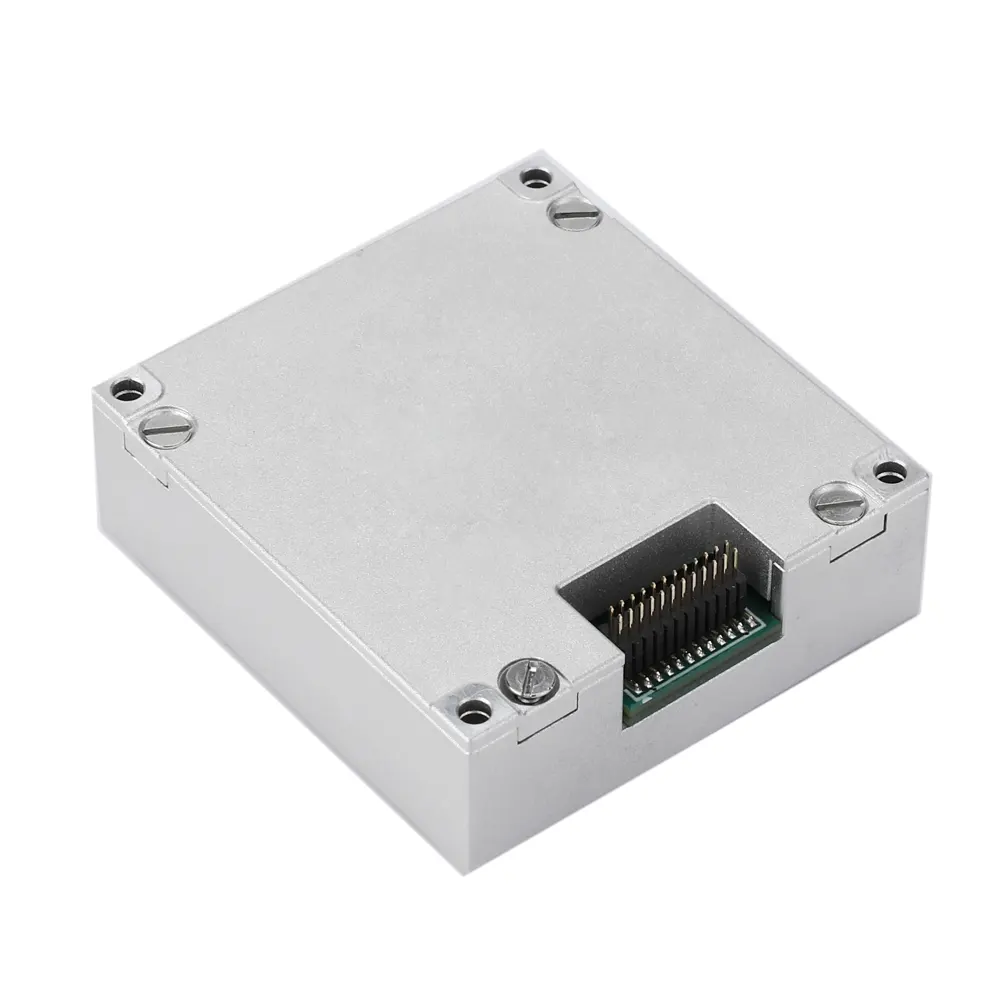

This MEMS IMU system is designed to overcome these limitations through advanced hardware and software integration:
- ✔ Integrated MEMS gyroscope, accelerometer, magnetometer, and barometric pressure sensor
- ✔ Built-in full temperature compensation for stable performance across wide temperature ranges
- ✔ Installation misalignment angle compensation ensures accurate output even with mechanical deviation
- ✔ Advanced nonlinear compensation algorithm improves measurement precision
- ✔ Stable and reliable output in static, dynamic, and extreme operating environments
- ✔ Fully compatible and drop-in replacement for ADIS16488 series products
- ✔ Compact structure with integrated hardware-software co-design for easy integration
🚁 Product Applications
This IMU system is widely used in precision motion and navigation systems, including:
- UAV flight control systems
- Autonomous vehicles and robotics
- Marine navigation and shipborne systems
- Industrial motion control and automation
- Attitude and heading reference systems (AHRS)
- Surveying and mapping equipment
⭐ Why Choose Us
- High-precision MEMS sensor integration with multi-sensor fusion design
- Advanced multi-layer compensation algorithms for real-world stability
- Strong environmental adaptability for harsh operating conditions
- Seamless compatibility with industry-standard systems like ADIS16488
- Reduced integration cost and simplified system upgrade path
- Reliable performance for mission-critical applications
We focus on delivering industrial-grade inertial sensing solutions that ensure accuracy, stability, and long-term reliability.
❓ Frequently Asked Questions (FAQ)
Q1: Is this IMU compatible with ADIS16488?
Yes, it is fully compatible as a drop-in replacement for the ADIS16488 series.
Q2: Does it support temperature compensation?
Yes, it includes full temperature compensation for stable output across different environments.
Q3: Can it operate in harsh conditions?
Yes, it is designed for static, dynamic, and high-vibration environments.
Q4: What sensors are integrated inside?
It includes a MEMS gyroscope, accelerometer, magnetometer, and barometric pressure sensor.
Q5: Is it suitable for UAV applications?
Yes, it is widely used in UAV flight control and navigation systems.
| Parameter | unit | fundamental form | |
| gyroscope | Measurement range (customizable) | ° /s | ±480 |
| Zero-level offset | ° /h | 15 | |
| Zero-pitch instability (@ALLAN variance) | ° /h | 0.3 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 3 | |
| Zero bias repeatability | ° /h | 5 | |
| Zero bias error across the entire temperature range | ° /h | 20 | |
| random walk | ° / √ h | 0.15 | |
| Zero-zero acceleration sensitivity | ° /h/g | 2 | |
| resolution ratio | ° /s | 0.0005 | |
| Output noise (half-maximum) | ° /s | 0.3 | |
| tape width | Hz | 250 | |
| Nonlinear scaling factor | ppm | 100 | |
| Scale factor repeatability | ppm | 100 | |
| cross coupling | % | 0.1 | |
| Parameter | unit | fundamental form | |
| accelerometer | Measurement range (customizable) | g | ±20 |
| Zero-pitch instability (@ALLAN variance) | mg | 0.07 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | mg | 0.25 | |
| Zero bias repeatability | mg | 0.5 | |
| Zero bias error across the entire temperature range | mg | 3 | |
| random walk | m/s/ √ h | 0.029 | |
| resolution ratio | mg | 0.1 | |
| tape width | Hz | 250 | |
| Scale factor repeatability | ppm | 500 | |
| cross coupling | % | 0.2 | |
| Parameter | unit | fundamental form | |
| magnetometer | Dynamic measurement range | guass | ±2.5 |
| Sensitivity Value | mguass/LSB | 0.1 | |
| barometer | pressure limit | mbar | 300~1100 |
| sensitivity | mbar/LSB | 6.1*10 -7 | |
| Parameter | unit | fundamental form | |
|
other |
Stabilization start time | s | 1 |
| Data update rate | Hz | 2400 | |
| voltage | V | 3.3±0.15 | |
| steady state power consumption | W | 0.5 | |
| ripple wave | mV | 100 | |
| working temperature | ℃ | -45~85 | |
| storage temperature | ℃ | -55~85 | |
| weight | g | 48±2 | |

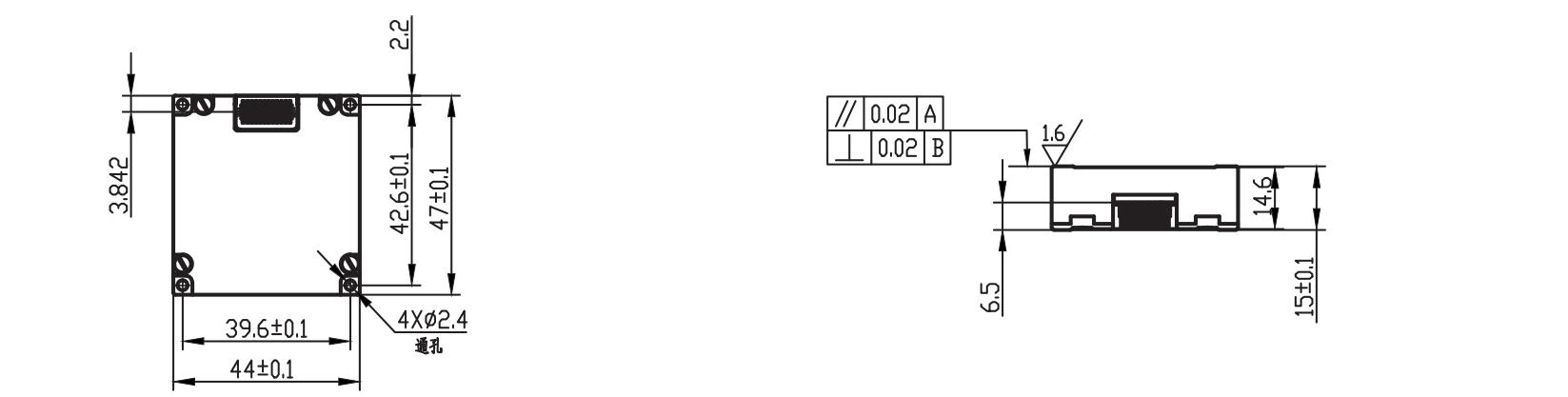

| size | mm | 44*47*15 | |
| Interface | —— | SPI | |
