High Power Variable Optic

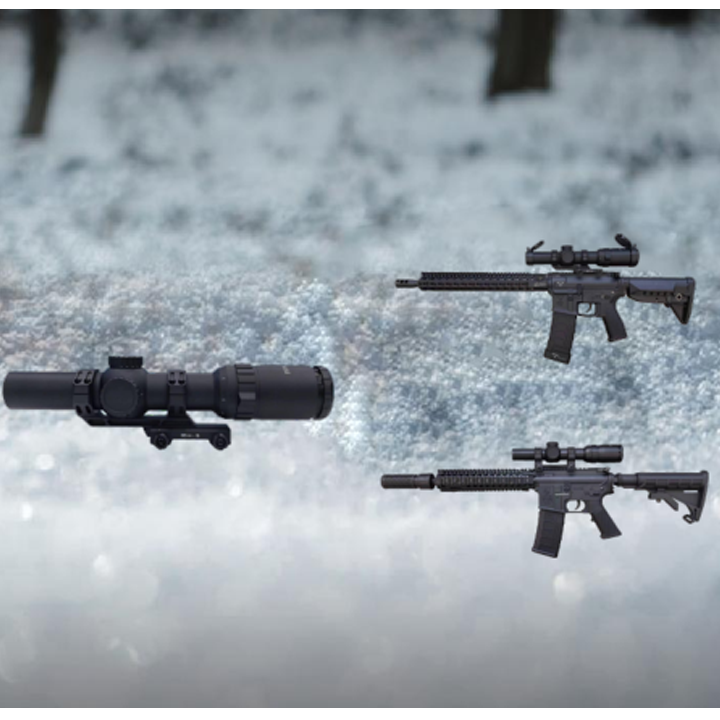

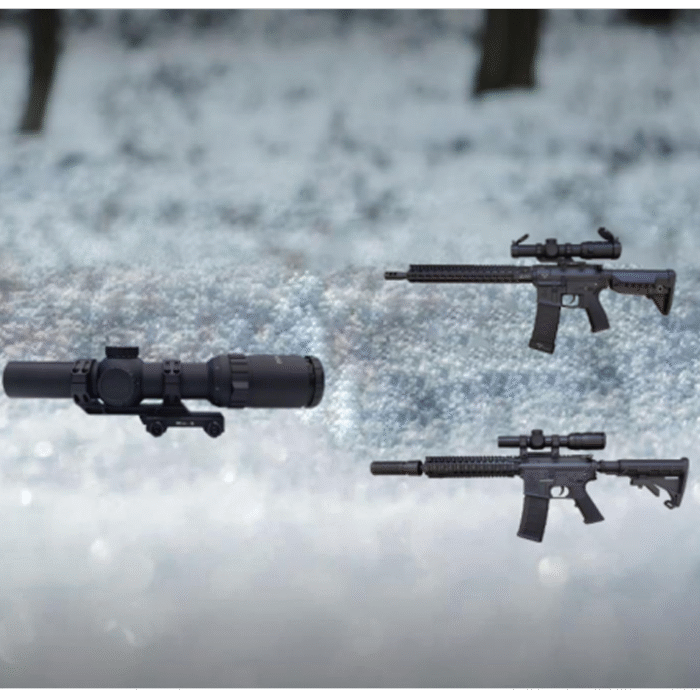

Low Power Variable Optic

It can perform quick aiming at targets at close range, or quickly switch the magnification for precise aiming at long-range targets.

Categories: ,
Description

Low Power Variable Optic Features

Rapid switching of magnification, both near and far
Suitable for submachine guns, automatic rifles, shotguns and machine guns.
The performance is comparable to international first-class brands

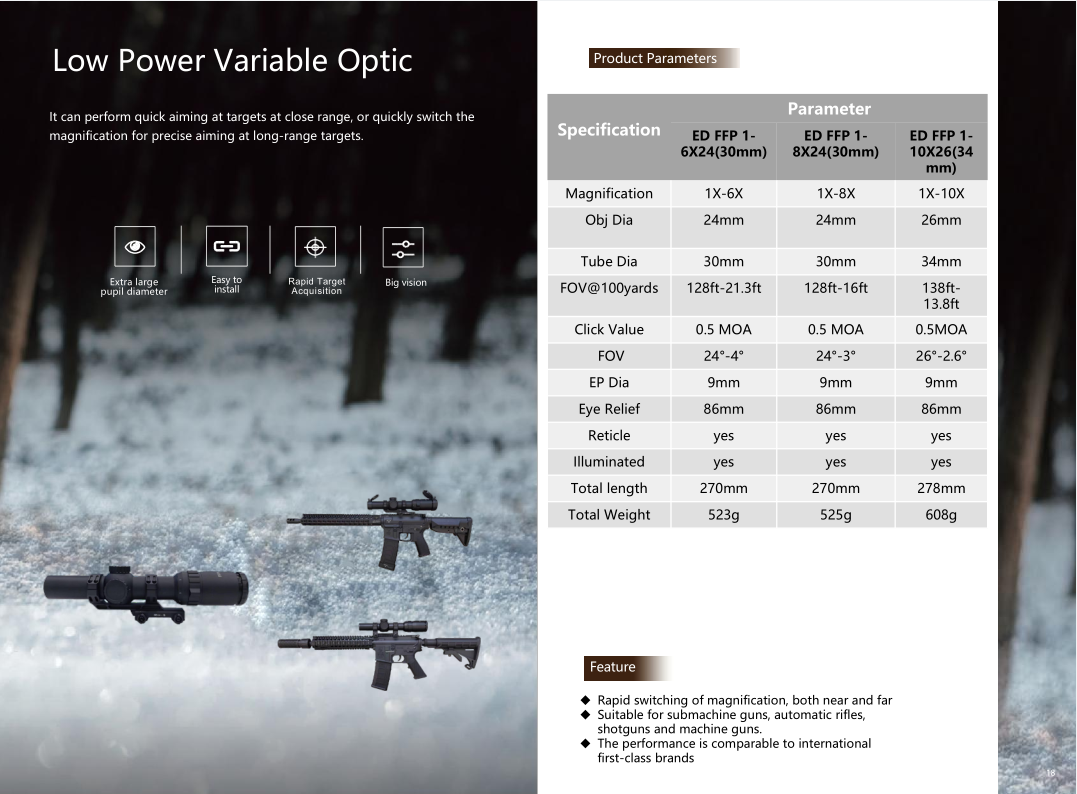

Low Power Variable Optic Parameters

Specification Parameters
ED FFP 1-6X24(30mm) ED FFP 1-8X24(30mm) ED FFP 1-10X26(34mm)
Magnification 1X-6X 1X－8X 1X-10X
Obj Dia 24mm 24mm 26mm
Tube Dia 30mm 30mm 34mm
FOV@100yards 128ft-21.3ft 128ft-16ft 138ft-
Click Value 0.5 MOA 0.5 MOA 13.8ft
FOV 24²-4² 24°-3° 0.5MOA
EP Dia 9mm 9mm 26°-2.6
Eye Relief 86mm 86mm 9mm
Reticle yes yes 86mm
Illuminated yes yes yes
Total length 270mm 270mm yes
Total Weight 523g 525g 278mm

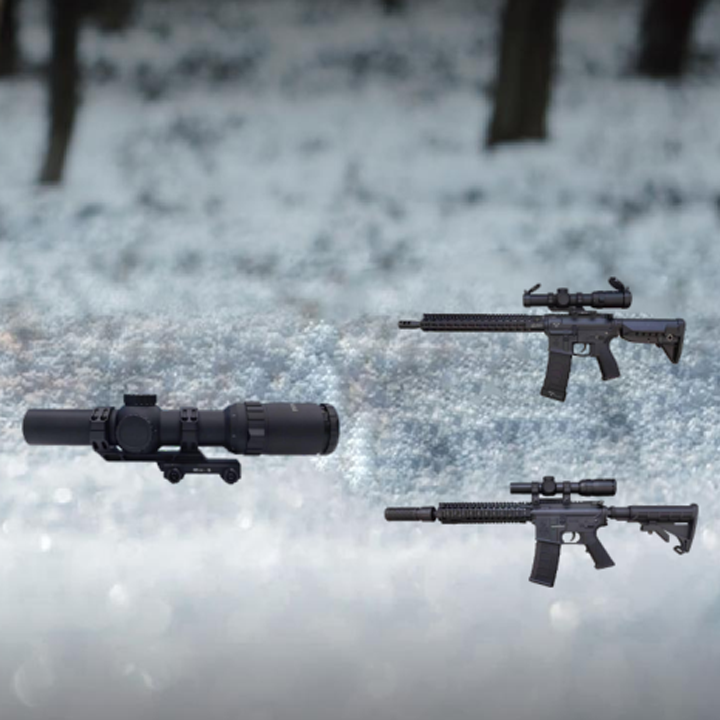

Low Power Variable Optic

Related products

M2000 Eye-Safe Laser Rangefinder Module

This module, which is based on a 905nm semiconductor laser, is specifically made for systems that have stringent weight and size constraints. We focus on developing multi-pulse rangefinding algorithms using reliable and well-established semiconductor lasers, as well as specially made reception detectors and a high-performance optical system. This has made it possible to develop a cutting-edge, market-leading tiny laser rangefinder module that may be used in a wide range of industries.

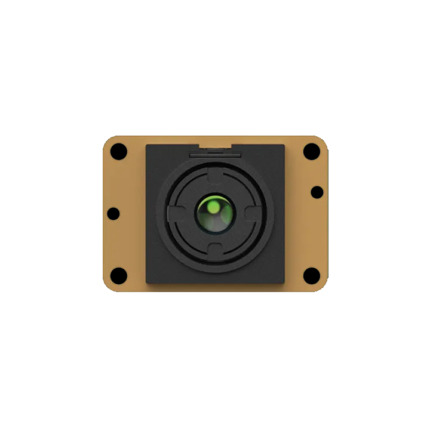

Uncooled Infrared Movement Components

384/640resolution,12microns,miniature,compact and standard series. Support a variety of communication protocols and video output formats, which are used for helmet night vision equipment, manned/unmanned aircraft pods, gun sights, hand-held observation equipment, vehicle-mounted photoelectric environment perception and other product requirements.

Holographic Sight

It has the advantages of large field of view, light weight, adjustable division brightness, waterproof and shockproof, etc. It is recommended to be used in close range combat.

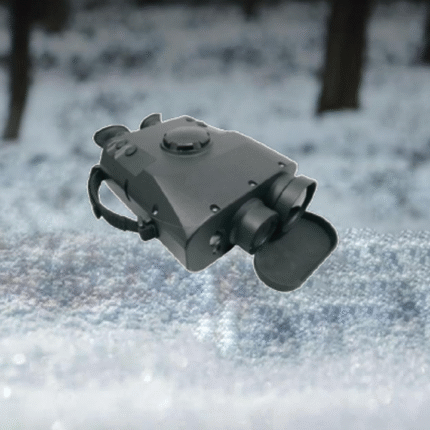

CMB01 Cooled Hand-held Thermal Observer
