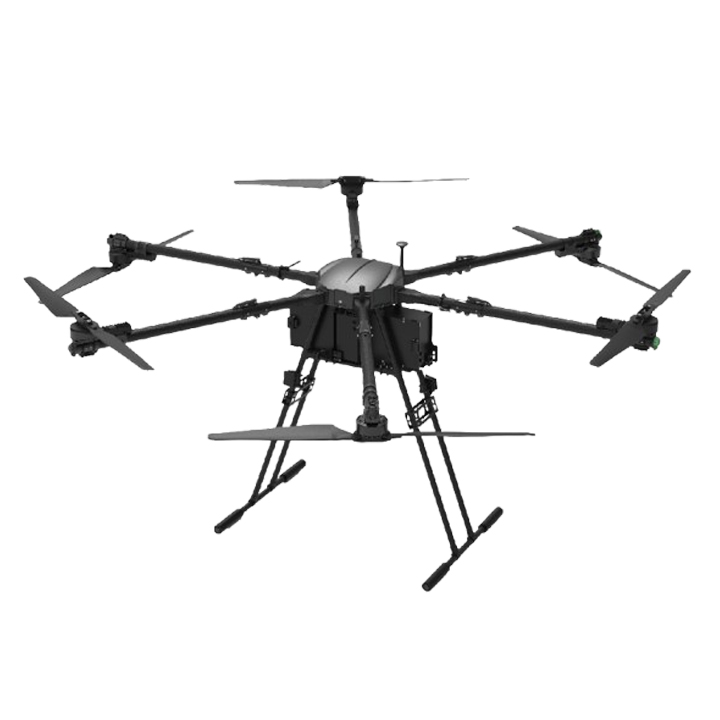

M140 Industry Level Drone

Introducing the M140 Industry-Level Drone, a high-performance aerial platform tailored for professional tasks across infrastructure inspection, large-scale surveying, agricultural monitoring, and industrial asset management. Constructed with rugged industrial-grade materials, it endures harsh field conditions—including strong winds, dust, and light rain—ensuring stable, reliable operation. Equipped with advanced flight control for precise maneuvering, extended-duration batteries for long missions, and versatile payload compatibility (supporting high-res cameras, thermal sensors, or LiDAR), it delivers accurate data capture and real-time insights to enhance efficiency in industrial operations.

Category:
Description

Parameter Details

  • Product Material: High-strength carbon fiber
  • Propellers: 48-inch folding propellers
  • Number of rotors: 6-rotor, 6-propeller
  • Deployed dimensions: 2770*2414*1189mm
  • Folded dimensions: 1285*1119*1189mm
  • Wheelbase: 2628mm
  • Empty weight: 33kg
  • Battery weight: 11.55kg x 3
  • Maximum payload: 70kg
  • Maximum takeoff weight: 127kg
  • No-load flight time: 61 minutes
  • 70kg payload flight time: 26 minutes
  • Upgradeable battery life: 35kg/60 minutes
  • Maximum flight speed: 25m/s
  • Positioning system: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m
  • Can fly in light rain

M140 Industry Level Drone
