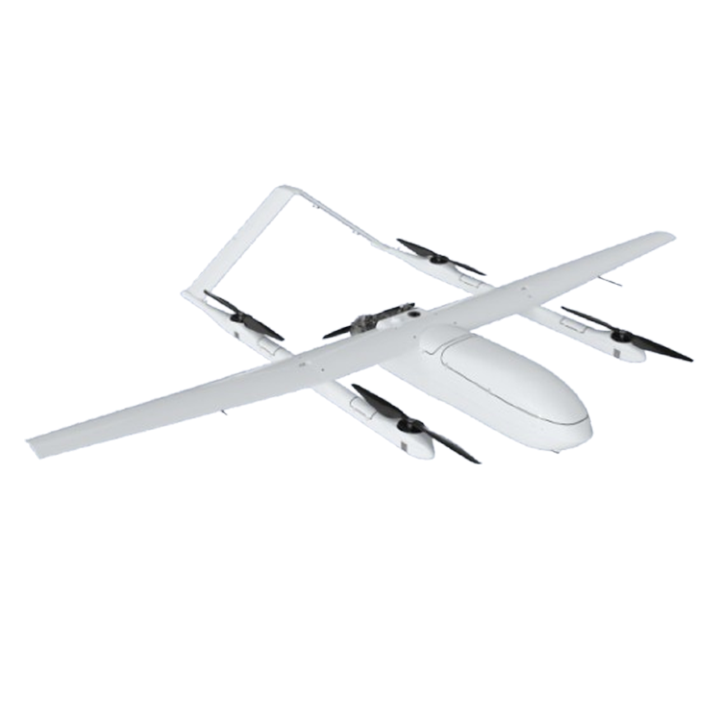

Features Of Mcw-100 Vtol Fixed Wing Uav System
1. Vertical take off and land
2. Long endurance + large payload capability
3. Fully autonomous
4. Back-up GNSS and magnetic compass sensor
5. Multiple fail-safe mechanism
6. RTK high precision landing
7. Take off and land on moving vessel
8. 4 stroke EFI engine with the features of lower noise, higher fuel
consumption efficiency
9. GNSS anti-jamming capability
Technical Spec. Of Mcw-100 Vtol Fixed Wing Uav System
| TECHNICAL SPEC. OF MCW-100 VTOL FIXED WING UAV SYSTEM | |||
| Items | Technical Spec. | Items | Technical Spec. |
| Aerodynamic Layout | Composite wing | Power | Gasoline-battery |
| MTOW | 112kg | Max. Endurance | 10h(with MG-200E) |
| Payload capacity | 22kg | Control range | 100/200 km(LOS) |
| Cruising Speed | 97-120km/h | Air-frame Material | Carbon, glass, composite material |
| Max.Takeoff altitude | 3000m(AMSL) | Wind resistance | VTOL: level 6 Cruise: level 7 |

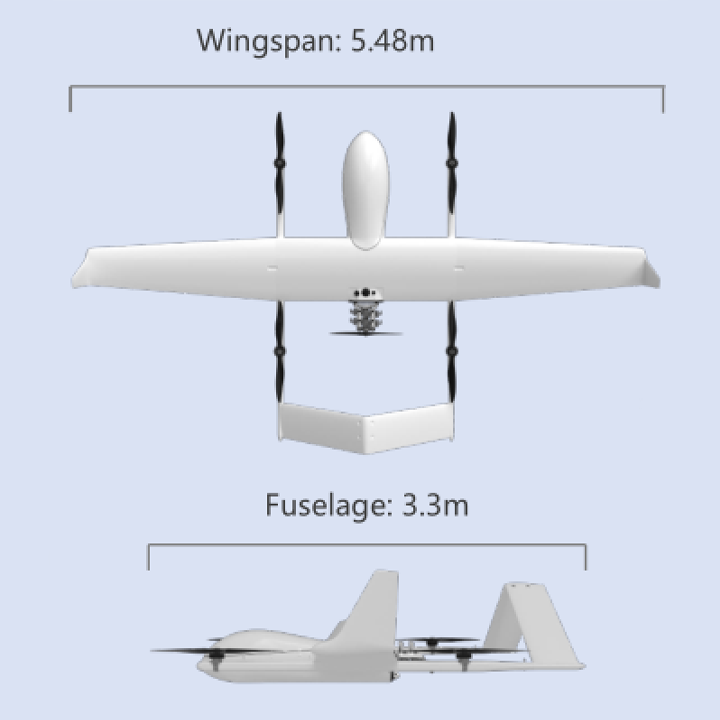

| Max. ceiling | 5000m(AMSL) | UAV size | 5480*3300*900 mm |

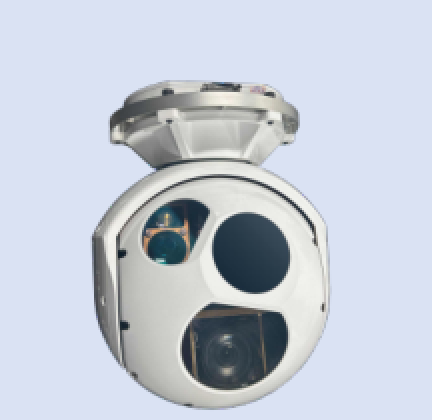

Related EO/IR/LRF STABLIZED GIMBAL Specification
| EO/IR/LRF STABLIZED GIMBAL | |
| Model | MG-200E |
| EO | 30x optical zoom |
| 1920*1080 resolution | |
| IR | 640*512 resolution |
| Cooling,Focal length： 40~200mm/F4.0, Continuous zoom |
|
| LRF | Range: 50-6000m |
Related GCS-303 Portable dual screen ground control station
Rich peripheral interface Vehicle or room based.
