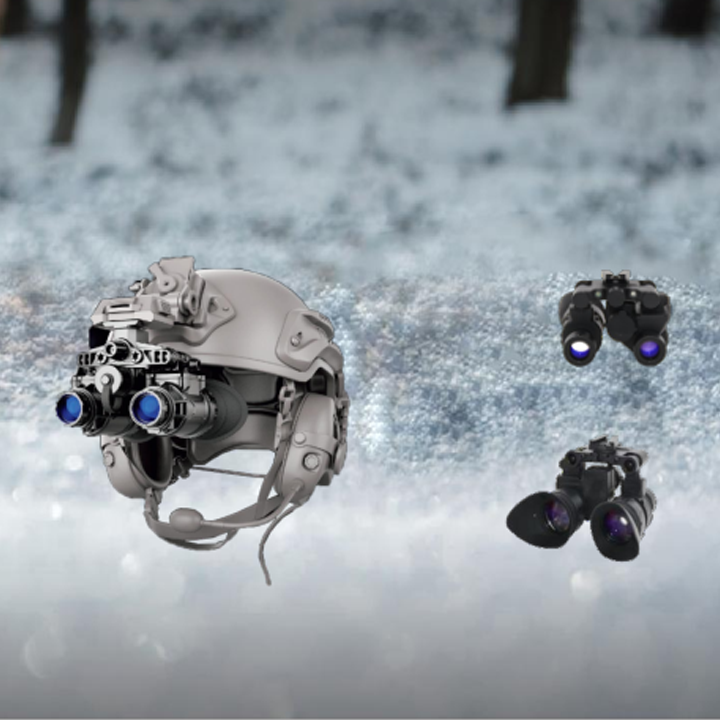

NV15 Two-Tube Night Vision Binocular

It uses a Gen 2+ image intensifier tube and is a professional-grade portable night vision goggle that can be mounted on a military helmet, a portable headset stand, or handheld. It has the characteristics of high resolution, small size, low power consumption and light weight, and is suitable for night reconnaissance, combat, driving, reading, maintenance and support operations.

Categories: ,
Description

NV15 Two-Tube Night Vision Binocular Features

Super 2+ generation image intensifier tube, excellent performance
Advanced man-machine efficacy design, to meet the different needs of use
Advanced structural shooting, compact and lightweight, sturdy and durable

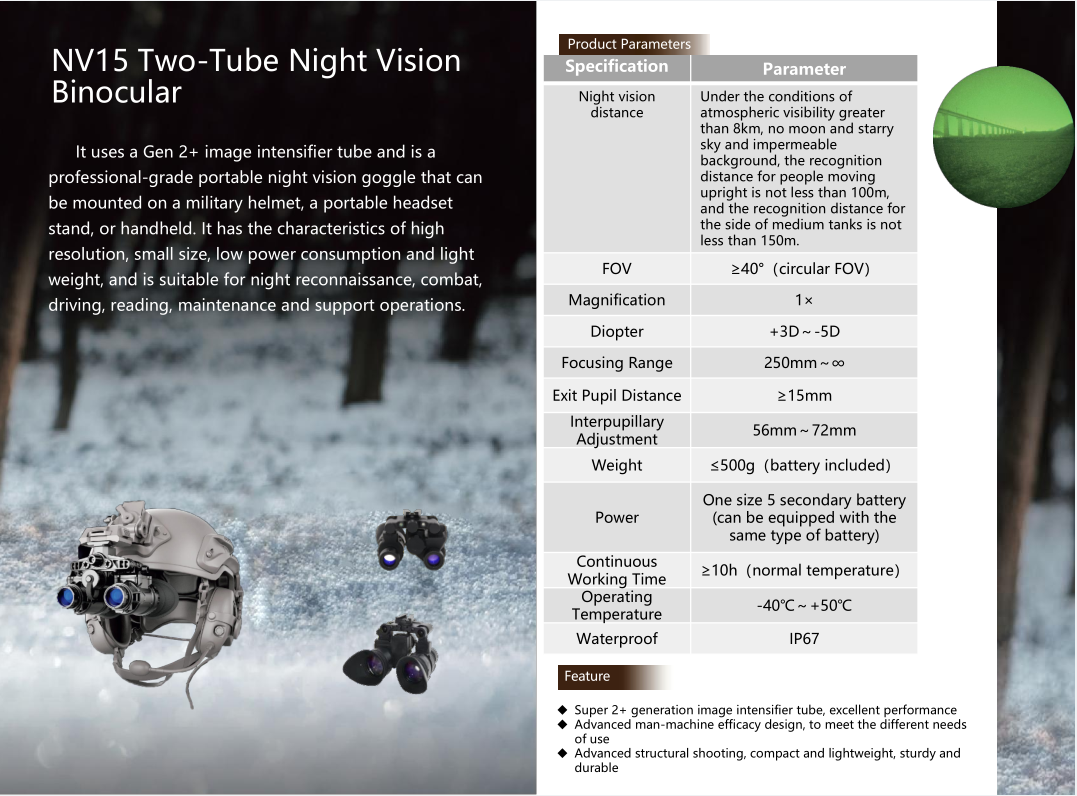

NV15 Two-Tube Night Vision Binocular Parameters

Specification Parameters
Night vision distance Under the conditions of atmospheric visibility greater than 8km, no moon and starry sky and impermeable background, the recognition distance for people moving upright is not less than 100m, and the recognition distance for the side of medium tanks is not less than 150m.
FOV ≥40° (circular FOV)
Magnification 1x
Diopter +3D~-5D
Focusing Range 250mm~00
Exit Pupil Distance ≥15mm
Interpupillary Adjustment 56mm~72mm
Weight ≤500g (battery included)
Power One size 5 secondary battery(can be equipped with the same type of battery)
Continuous Working Time ≥10h (normal temperature)
Operating Temperature -40C~ +50°C
Waterproofing IP67

NV15 Two-Tube Night Vision Binocular
