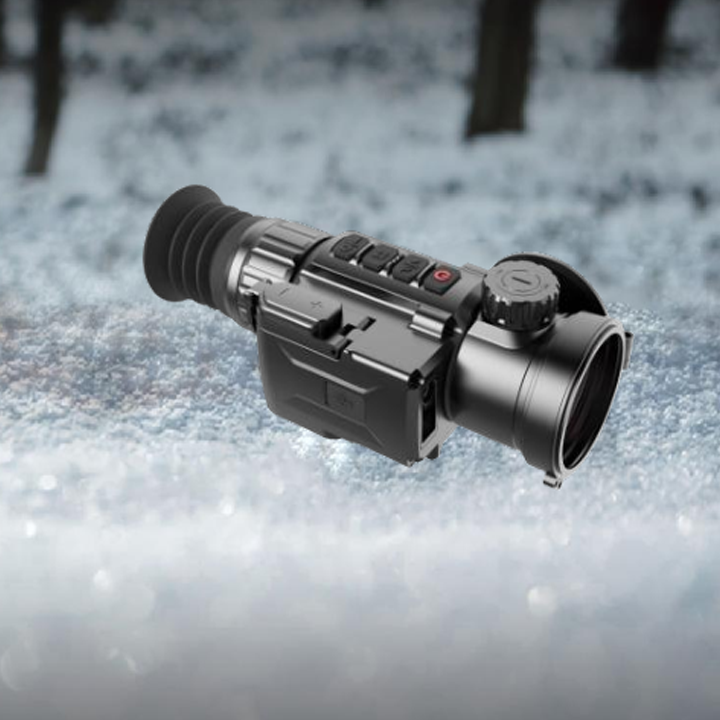

TS06 series infrared telescope

It’s an infrared telescope; The 12um thermal imaging sensor can sense subtle temperature differences, giving you higher image resolution and image detail, the device can be used during the day and night, can be used in outdoor, security and other fields

Categories: ,
Description

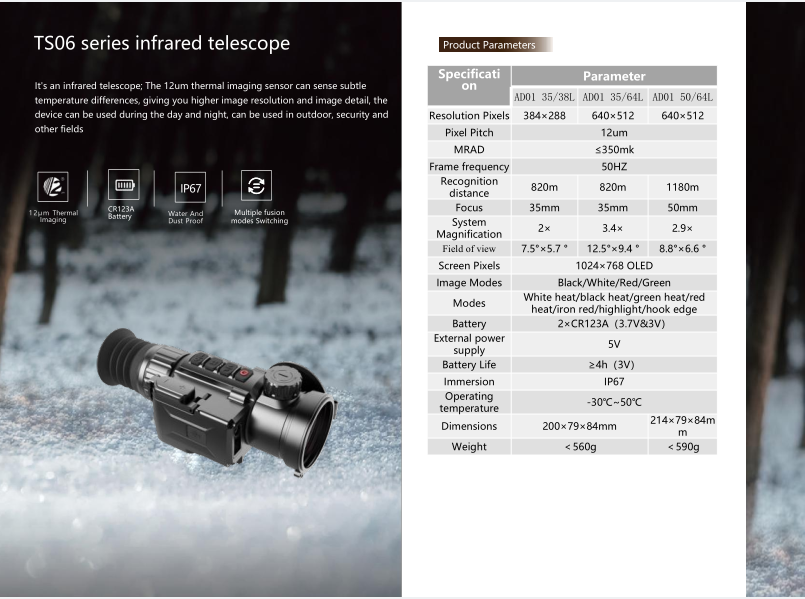

TS06 series infrared telescope Parameters

Specification Parameter
AD01 35/38L AD01 35/64L AD01 50/64L
Resolution Pixels 384×288 640×512 640×512
Pixel Pitch 12um
MRAD ≤350mk
Frame frequency 50HZ
Recognition distance 820m 820m 1180m
Focus 35mm 35mm 50mm
System Magnification 2x 3.4x 2.9x
Field of view 7.5°x5.7° 12.5°x9.4° 8.8°x6.6°
Screen Pixels 1024×768 OLED
Image Modes Black/White/Red/Green
Modes White heat/black heat/green heat/red heat/iron red/highlight/hook edge
Battery 2xCR123A (3.7V&3V)
External power supply 5V
Battery Life ≥4h (3V)
Immersion IP67
Operating temperature -30°C~50°C
Dimensions 200x79x84mm 214x79x84mm
Weight <560g <590g
