Keen M615 Uncooled Short-Wave Infrared Module Component
Back to products
Infrared and Low-luminous fusion Modules

Uncooled Infrared Movement Components

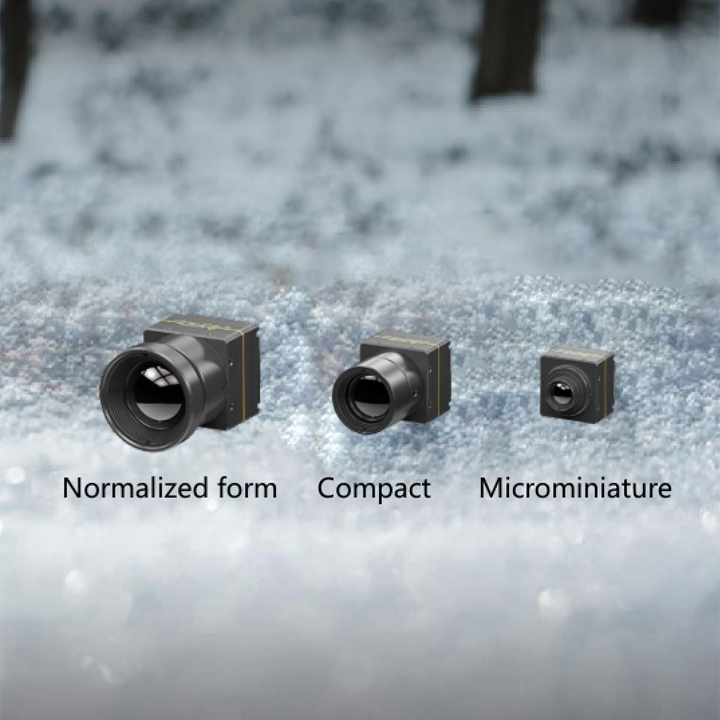

384/640resolution,12microns,miniature,compact and standard series. Support a variety of communication protocols and video output formats, which are used for helmet night vision equipment, manned/unmanned aircraft pods, gun sights, hand-held observation equipment, vehicle-mounted photoelectric environment perception and other product requirements.

Categories: ,
Description

Uncooled Infrared Movement Components Features

It can be adapted to different types of product requirements such as helmet night vision equipment, mounted/unmanned aerial vehicle pods, gun scopes, handheld observation equipment, vehicle photoelectric, environment awareness, etc.

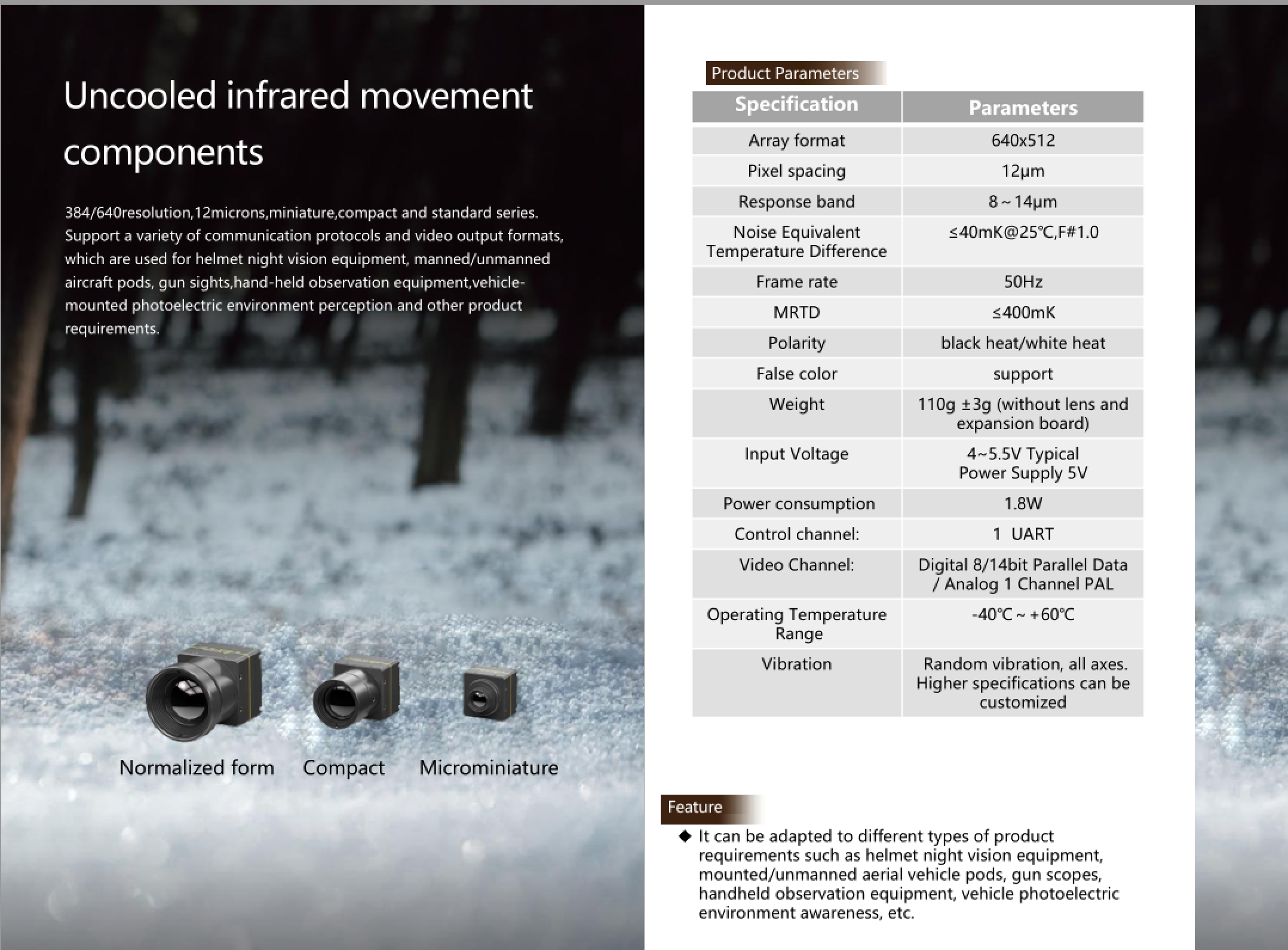

Uncooled Infrared Movement Components Parameters

Specification Parameters
Array format 640×512
Pixel spacing 12μm
Response band 8～14μm
Noise Equivalent Temperature Difference ≤40mK@25℃,F#1.0
Frame rate 50Hz
MRTD ≤400mK
Polarity black heat/white heat
False color support
Weight 110g ±3g (without lens and expansion board)
Input Voltage 4~5.5V Typical Power Supply 5V
Power consumption 1.8W
Control channel : 1 UART
Video Channel: Digital 8/14bit Parallel Data / Analog 1 Channel PAL
Operating Temperature Range -40℃～+60℃
Vibration Random vibration, all axes. Higher specifications can be customized

Uncooled Infrared Movement Components
