The Ultimate 20W Power Amplifier VCO Signal Generator for Anti-Drone and Critical Communications
nn
In the fast-evolving world of RF engineering, precision and power are non-negotiable. Our 20W Power Amplifier VCO Signal Generator stands at the forefront of innovation, seamlessly integrating a Voltage-Controlled Oscillator (VCO) signal generator with a 5100–5300MHz RF amplifier. This powerful combination addresses the rigorous demands of modern applications, with a particular emphasis on anti-drone systems. Whether you are advancing research, enhancing communication networks, or fortifying security measures, this device delivers uncompromising performance.
nn
Operating within the 5100–5300MHz frequency band, this module excels at generating and amplifying signals with remarkable accuracy. With a saturated power output of 43±1dBm and a gain of 43dB, it ensures robust and stable signal transmission, even in challenging environments. The in-band flatness, measured at less than 2dB, guarantees exceptional signal integrity, making it a reliable choice for both testing and operational tasks. As a dedicated anti-drone solution, this RF module effectively disrupts drone communication channels, providing a critical layer of defense. Its careful management of out-of-band spurs minimizes interference with other devices, while the 20W output enables long-range coverage, essential for neutralizing threats from a distance.
nn

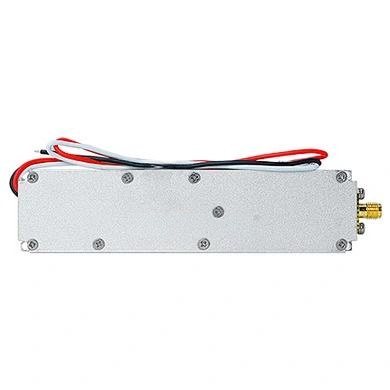

Crafted for durability and portability, the unit operates on DC +28V power and includes feed-through capacitors on the power supply and monitoring interfaces for stable connections. The SMA-KFD RF port simplifies antenna attachment, and the compact dimensions of 112×38×18mm make it easy to integrate into existing systems. With an operating temperature range of –30°C to +65°C and a relative humidity tolerance of 5% to 95% (non-condensing), this amplifier is built to perform in diverse climates. It is the ideal signal generator for research labs, communication systems, and anti-drone operations, offering a blend of power and precision that professionals rely on.
nn
Key Technical Specifications of the 20W Power Amplifier VCO Signal Generator
nn
| Parameter | Value |
|---|---|
| Working Frequency | 5100–5300 MHz |
| Saturated Power Output | 43±1 dBm |
| Gain | 43 dB |
| In-Band Flatness | <2 dB |
| Working Current | ≤2 A |
| Input and Output VSWR | ≤1.5 |
| Out-of-Band Spurs (9kHz–1GHz) | ≤ –36 dBm/30 kHz |
| Out-of-Band Spurs (1GHz–12.75GHz) | ≤ –30 dBm/30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +28 V |
| Power Supply Interface | Feed-through capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through capacitor |
| VCO Amplifier Size | 112 × 38 × 18 mm |
| Operating Temperature | –30°C to +65°C |
| Relative Humidity | 5%–95%, No condensation |
| Storage Temperature | –30°C to +65°C |
nn
Why This 20W Power Amplifier VCO Signal Generator Stands Out
nn
The integration of a VCO signal generator with a high-power amplifier sets this device apart from conventional modules. Engineers value the ability to tune frequencies within the 5100–5300MHz range while maintaining a 43dB gain, ensuring that even weak signals are amplified without distortion. This is particularly important in anti-drone applications, where precise jamming or disruption of command links is required. The low in-band flatness of <2 dB means that the signal maintains its quality across the entire frequency band, reducing the risk of communication gaps.
nn
Moreover, the strict control of out-of-band spurs—down to –36 dBm/30 kHz in the 9kHz–1GHz range and –30 dBm/30 kHz in the 1GHz–12.75GHz range—prevents interference with surrounding electronic equipment. This regulatory compliance makes it suitable for use in sensitive environments, such as airports or military zones. The feed-through capacitors on both the power supply and monitoring interfaces further enhance reliability by minimizing signal noise and ensuring stable operation under varying loads.
nn
Practical Applications for the 20W Power Amplifier VCO Signal Generator
nn
Beyond anti-drone systems, this signal generator is a versatile tool for research and development. Its compact size and robust design allow it to be integrated into test benches, portable devices, and fixed communication stations. The ability to withstand temperatures from –30°C to +65°C and high humidity levels makes it ideal for field operations in extreme climates. Whether you are conducting frequency-domain analysis or building a long-range communication link, this module provides the power and precision needed for success.
nn
In conclusion, the 20W Power Amplifier VCO Signal Generator is more than a component; it is a comprehensive solution for demanding RF tasks. With its high saturated power output, precise gain control, and anti-drone capabilities, it represents a significant advancement in signal generation technology. Engineers and system integrators can trust this device to deliver consistent performance, whether in a lab or on the front lines of security operations. Invest in a signal generator that combines power, reliability, and versatility, and elevate your projects to new heights.
