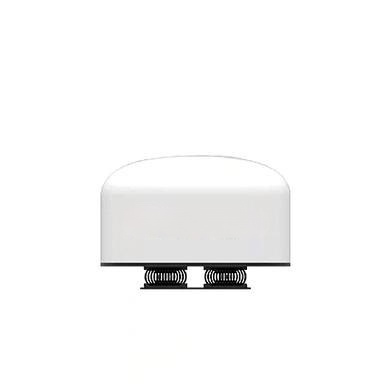

Introducing the Advanced MOP-SJ1 Low Altitude Security System
nn
In an era where drone threats are rapidly evolving, securing low-altitude airspace has never been more critical. The MOP-SJ1 emerges as a high-performance low altitude security system, purpose-built to neutralize unauthorized unmanned aerial vehicles (UAVs) with speed, precision, and reliability. Engineered with sophisticated multi-band countermeasure technology, this system is designed to protect major events, public patrols, and sensitive regional surveillance zones against aerial intrusions. From its lightning-fast interception capabilities to its robust environmental design, the MOP-SJ1 sets a new standard in comprehensive drone defense.
nn
Multi-Band Coverage for Unmatched Versatility
nn
One of the standout features of this low altitude security system is its ability to cover five mainstream frequency bands commonly used by commercial and consumer drones. These bands include 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz. The system supports both independent and combined suppression modes, allowing operators to tailor countermeasures to specific threats. Moreover, on-demand frequency expansion ensures adaptability as drone technology evolves. Whether neutralizing a single rogue UAV or managing a swarm, the MOP-SJ1 provides flexible, real-time control over the electromagnetic spectrum.
nn
Millisecond-Level Response and Omnidirectional Coverage
nn
Speed and coverage are paramount in counter-drone operations. The MOP-SJ1 boasts an intercept response time of under three seconds, ensuring that even fast-moving threats are neutralized before they can cause harm. Its advanced mechanical design enables horizontal coverage from 0° to 360° and pitch coverage from -30° to 60°, delivering true all-round defense. This comprehensive angular coverage eliminates blind spots, making the system effective in complex terrains such as urban environments, stadiums, and critical infrastructure sites.
nn
Precision Engineering and System Architecture
nn
The MOP-SJ1 is not just powerful; it is also remarkably precise. Its six independently controlled sectors enable exact spatial targeting, allowing operators to engage specific drones without creating secondary interference with friendly or neutral devices. This precision is crucial in crowded airspace, such as during public events or at airports. The integrated design of the main unit keeps the system compact and lightweight, with a weight of ≤50 kg and dimensions of Φ600mm × H420mm. This form factor supports rapid deployment and easy relocation, even in challenging field conditions.
nn
Seamless Networking and Integration
nn
To provide layered security across large areas, the MOP-SJ1 supports multi-device networking. Both wireless and wired connection options are available, allowing the system to be integrated into existing security infrastructures. This networking capability ensures that multiple units can communicate and coordinate in real time, creating a cohesive defense grid that covers vast or complex perimeters. Whether for a temporary event or permanent installation, the system’s flexibility simplifies setup and management.
nn
Technical Specifications of the MOP-SJ1 Low Altitude Security System
nn
The following table details the complete performance indicators, mechanical parameters, electrical characteristics, and environmental adaptability of the MOP-SJ1.
nn
| No. | Parameter | Value |
|---|---|---|
| Performance Indicators | ||
| 1 | Work Pattern | Radio interference suppression |
| 2 | Objects of Action | Drone mapping, flight control link, navigation signal |
| 3 | Working Frequency Band / Bandwidth of Amplifier | Channel 1 (900MHz): (880±10)MHz ~ (930±10)MHz; Channel 2 (1.5GHz): (1550±10)MHz ~ (1640±10)MHz; Channel 3 (2.4GHz): (2400±10)MHz ~ (2500±10)MHz; Channel 4 (5.2GHz): (5140±10)MHz ~ (5320±10)MHz; Channel 5 (5.8GHz): (5725±10)MHz ~ (5875±10)MHz |
| 4 | Counter Power | Output power per port: Channel 1: 44±2dBm; Channel 2: 44±2dBm; Channel 3: 46±2dBm; Channel 4: 44±2dBm; Channel 5: 46±2dBm |
| 5 | Coverage Angle | Horizontal: 0°~360°; Elevation: -30°~60° |
| 6 | Maximum Simultaneous Transmission Frequency Bands | 5 |
| 7 | Simultaneous Counter Targets | Not less than 5 flights |
| 8 | Effective Counter Distance | 1.5km – 2km (depending on environment and model) |
| 9 | Counter Mode | Full azimuth / Direction (single sector 60°) |
| 10 | Intercept Response Time | No more than 3 seconds |
| 11 | Internet Access | Supports wireless routing and wired connections |
| Mechanical Parameters | ||
| 1 | Weight | ≤50 kg (main unit) |
| 2 | Dimensions | Φ600mm × H420mm (±2mm) |
| Electrical Characteristics | ||
| 1 | Overall Machine Power Consumption | ≤350W |
| 2 | External Power Supply Voltage | AC 100～240V |
| Environmental Adaptability | ||
| 1 | Working Temperature | -20～65℃ |
| 2 | Ingress Protection | IP65 |
nn
Reliable Protection in Any Environment
nn
Designed for real-world deployment, the MOP-SJ1 excels in demanding conditions. With an operating temperature range of -20°C to 65°C and an IP65 protection rating, the system is resistant to dust and water jets, making it suitable for outdoor use in extreme weather. The overall power consumption of ≤350W ensures energy efficiency without sacrificing performance. As a low altitude security system, it delivers dependable, round-the-clock surveillance and countermeasure capabilities for critical applications.
nn
Conclusion
nn
The MOP-SJ1 represents a holistic solution for modern low-altitude security challenges. Its combination of multi-band jamming, rapid response, precise sector control, and rugged design makes it an indispensable asset for security professionals. Whether safeguarding a high-profile event or providing persistent surveillance for a sensitive facility, this low altitude security system offers the performance and reliability needed to keep the skies safe. With its scalable networking and on-demand frequency flexibility, the MOP-SJ1 is prepared to meet the threats of today and tomorrow.
