Unlock High-Frequency Performance: The Ultimate Integrated Module for Demanding Applications
nn
In the world of high-frequency signal processing, reliability and power are non-negotiable. When your systems demand robust signal amplification without compromising clarity or stability, the performance of your core components becomes the differentiator between success and failure. This is where our high-performance integrated module steps in, offering a meticulously engineered solution for the most challenging 10W 5925-7125MHz frequency band operations. By combining a state-of-the-art power amplifier and a precision Voltage-Controlled Oscillator (VCO), this module ensures your high-frequency transmissions are not only powerful but also consistently clean and stable. From communication base stations to radar systems, the need for a dependable integrated module has never been greater, and this product is designed to exceed those expectations.
nn
At the heart of this device is an exceptional power amplifier that delivers a saturated output power of 40±1dBm. This isn’t just about raw power; it’s about maintaining that power under continuous high-demand scenarios. The module’s design ensures that even at maximum output, signal integrity is preserved, making it an ideal choice for critical applications where every dB matters. The integration of the VCO further enhances the module’s versatility, allowing for precise frequency control that is essential for accurate signal generation and amplification. Whether you are dealing with radar signal processing or RF test instrumentation, this integrated module provides the high-performance foundation you can trust.
nn
Unmatched Stability: The Saturated Output Power You Can Rely On
nn
One of the most critical aspects of any power amplifier is its ability to maintain stable performance under load. This module excels with a saturated output power that remains rock-steady at 40±1dBm, ensuring consistent high-power output for the duration of your operation. Furthermore, the flatness at Psat, as well as the overall gain flatness, is held to an impressive ±1dB. This level of precision minimizes signal fluctuations, which is crucial for high-frequency transmission where even minor variations can lead to data corruption or performance degradation. The module’s design effectively combats these issues, providing a clean, stable output that enhances the reliability of your entire system.
nn
Advanced Filtering and Minimal Interference
nn
Within any integrated module, managing noise and spurious signals is paramount. This product features exceptional anti-interference capabilities, with non-harmonic spurious suppression greater than 60dBc at maximum power. Additionally, second harmonic suppression exceeds 10dBc. These specifications translate directly into a cleaner signal, reducing unwanted interference that can plague sensitive equipment. This is particularly beneficial in environments like industrial high-frequency detection or multi-band communication systems, where signal purity is the cornerstone of accurate measurement and reliable communication.
nn
Key Performance Specifications of the Integrated Module
nn
To provide a clear, data-driven overview of this module’s capabilities, all technical parameters are detailed in the table below. This structured presentation allows for easy comparison and verification of the module’s suitability for your specific project requirements.
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 5925 MHz ~ 7125 MHz |
| Input Signal Type | Frequency Sweep |
| Saturated Output Power | 40 ± 1 dBm |
| Flatness @ Psat | ±1 dB (Max) |
| Gain Flatness | ±1 dB (Max) |
| Second Harmonics @ Max Power | > 10 dBc |
| Non-Harmonics Spurious @ Max Power | > 60 dBc |
| Monitoring | Temperature, Voltage, Current |
| Output VSWR | 1.5:1 (Max) |
| Input VSWR | 1.5:1 (Max) |
| Input/Output Impedance | 50 Ohm |
| Power On/Off Control | TTL 0 / 3.3~5V (Off: 0V, On: 3.3V~5V, Default: 0V) |
| Operating Voltage | 28 V / 1.5 A |
| Dimensions (Max) | 150 ± 0.1 mm x 100 ± 0.1 mm x 20 ± 0.1 mm |
| Weight | ≤ 1 kg |
| Operating Temperature | -40°C ~ +60°C |
nn
Rapid Response and Seamless Control
nn
In dynamic systems, speed is everything. This integrated module boasts fast power on/off times, allowing for quick transitions between operational states. The TTL control interface (0V for off, 3.3V~5V for on) provides straightforward integration with existing digital control systems, simplifying the design process and enabling precise power management. This rapid response is essential in radar and test applications where meticulous timing and power cycling are required for optimal performance and safety.
nn
Robust Design for Harsh Environments
nn

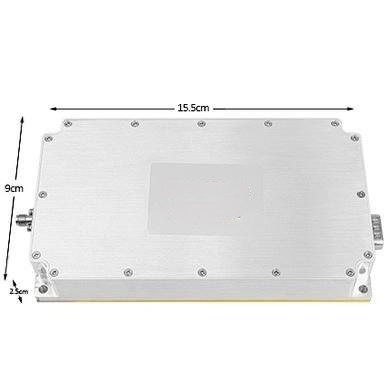

Durability and adaptability are built into the core of this module. Its compact structure, measuring just 150±0.1 x 100±0.1 x 20±0.1 mm and weighing less than 1kg, saves valuable installation space in crowded equipment racks. More importantly, it operates across a wide temperature range from -40°C to +60°C, ensuring reliable performance in extreme industrial conditions. The standard 50Ω impedance and impressive VSWR of both input and output further demonstrate its compatibility and design for seamless system integration, making it a truly versatile component for any high-frequency application.
nn
Conclusion: The Integrated Module for Your Most Critical Applications
nn
From boosting communication base station signals to refining radar systems and industrial detection equipment, this integrated module provides the stable, high-performance power amplifier support that professionals demand. Its combination of exceptional saturated output power, signal purity, and robust design creates a reliable cornerstone for any high-frequency project. By choosing this module, you are not just selecting a component; you are ensuring the integrity and efficiency of your entire system. For system engineers and procurement specialists looking for a trustworthy, high-performance power amplifier in a compact footprint, this integrated module represents the ultimate solution for maintaining signal excellence in the most demanding environments.
