High Performance 3KW L Band Transmitter: Redefining Reliability in Long-Range Signal Systems
nnThe rapid evolution of long-range signal systems demands solutions that seamlessly blend high power, unwavering reliability, and exceptional precision. Enter our High Performance 3KW L Band Transmitter—a formidable system built around a robust RF power amplifier module. Specifically engineered for the critical 1.2-1.6GHz L band, which serves as the backbone for satellite and radar communications, this transmitter integrates a specialized L band amplifier module optimized for this frequency spectrum. It ensures top-tier signal handling, making it far more than a basic RF amplifier module—it is the bedrock of stable, long-distance transmission.nnAt its core lies a high-performance power amplifier, delivering 3KW of saturation power to drive signals across vast distances. The design leverages an advanced SSPA module architecture, which significantly boosts durability by resisting vibration and temperature fluctuations—enabling reliable 24/7 operation even in harsh environments. Features include AM-controlled transmit/receive switching and full state monitoring, which prevent overloads with an RX Burnout Power exceeding 1KW.nnThis transmitter excels in mission-critical applications. In satellite communication, it ensures stable uplinks for seamless data transfer. In radar auxiliary systems, it enhances detection capabilities. For long-range wireless networks, it provides reliable coverage over expansive areas. By merging the strengths of its integrated amplifier modules, it sets a new standard for L Band systems where failure is not an option.nn
Key Specifications
n
| Parameter | Value |
|---|---|
| Working Frequency | 1.2-1.6 GHz |
| Saturation Power | 3 KW |
| Duty Cycle | 10% |
| Pulse Width | 100 μs |
| Attenuator Gain (ATN G) | >10 dB |
| Transmit Gain (TX G) | >60 dB |
| Receive Gain (RX G) | >30 dB |
| Receive P-1 (RX P-1) | >20 dBm |
| Receive Burnout Power (RX Burnout Power) | >1 KW |
| Power Supply | AC 220V / 50 Hz |
| Outline Dimensions | 482.6 × 503.0 × 133.4 mm |
| Weight | 20 kg |
nn
Unmatched Performance in Demanding Environments
nThe power amplifier within this transmitter leverages gallium nitride (GaN) technology for high efficiency and thermal management. Combined with the SSPA module design, it maintains linear output even at saturation, reducing distortion in modulated signals. The integration of an L band amplifier module ensures minimal noise figure and wide dynamic range, critical for sensitive radar receivers. Meanwhile, the RF power amplifier module includes built-in protection circuitry against overvoltage, overcurrent, and overtemperature conditions, extending operational lifespan.nn
Applications and Use Cases

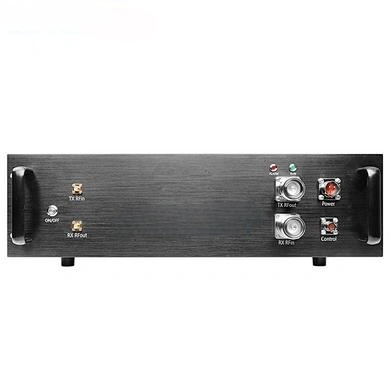

nThis High Performance 3KW L Band Transmitter is not just a component—it is a complete solution. For satellite earth stations, it provides the high gain needed for uplinking to geostationary and low-earth orbit satellites. In radar systems, its pulse capability enables precise target detection with minimal signal degradation. For long-range wireless networks, it serves as a reliable RF source for point-to-point and point-to-multipoint links, covering tens of kilometers without signal drop.nnThe transmitter’s compact form factor (482.6 x 503.0 x 133.4 mm) and lightweight design (20 kg) allow for easy rack mounting in mobile or fixed installations. Its AM control interface simplifies integration into existing systems, while full state monitoring provides real-time diagnostics via a serial interface.nn
Conclusion
nAs long-range signal systems continue to evolve, the need for solutions that combine high power, reliability, and precision becomes paramount. Our High Performance 3KW L Band Transmitter, built around a powerful RF power amplifier module, meets this demand head-on. By integrating an L band amplifier module optimized for the 1.2-1.6GHz spectrum, it delivers consistent performance across satellite, radar, and wireless applications. Whether you are deploying a new network or upgrading legacy equipment, this transmitter—with its robust power amplifier, durable SSPA module, and comprehensive protection features—ensures mission success. Trust in its design to provide the stable, long-distance transmission your operations require.
