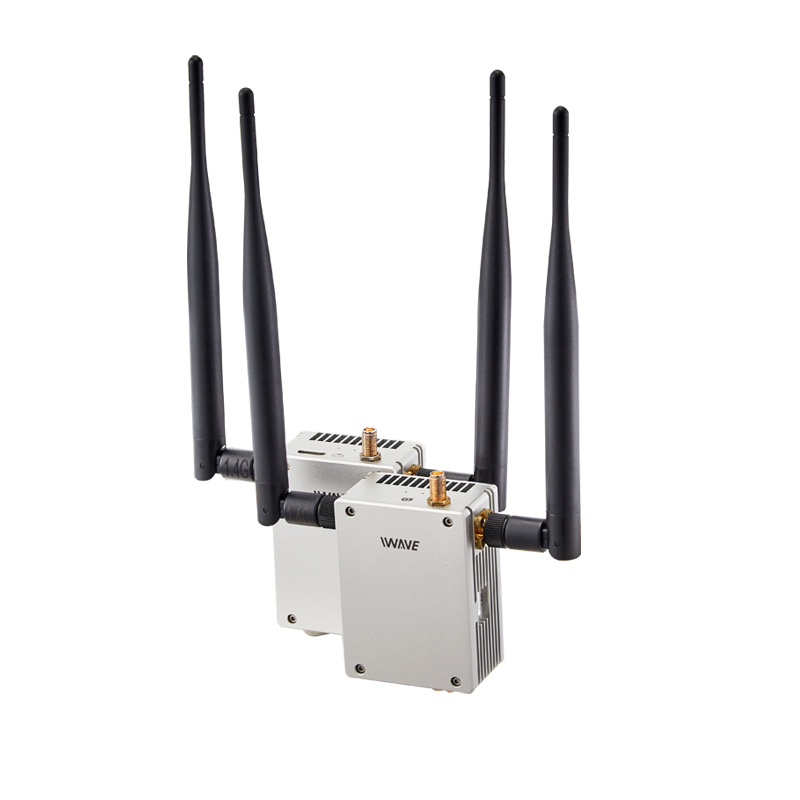

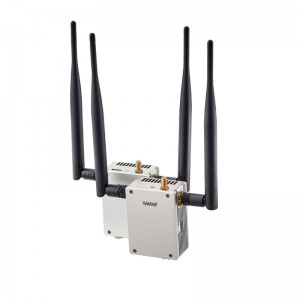

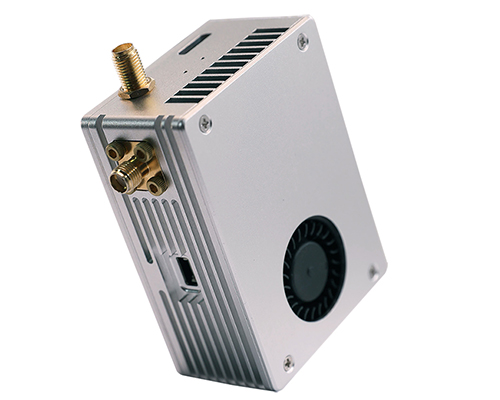

Powerful & Versatile Drone Video Transmitter Key Features: High-Power Transmission: 2W RF output for robust, long-range communication up to 50km. Compact & Lightweight: Optimized for UAVs and unmanned platforms. Wide Compatibility: Works seamlessly with a broad range of flight controllers, mission software, and payloads. Industrial Durability: Operates reliably in extreme temperatures from -40°C to +85°C. Secure & Encrypted: Supports AES encryption for secure data links. High-Speed Data Link: Transmission rates of 3-5 Mbps with excellent sensitivity (-100dBm @ 4MHz). Technical Specifications: Wireless Range: Up to 30km (standard) Frequency Bandwidth: Adjustable 4MHz / 8MHz Duplex Data Support: SBUS, PPM, TTL, RS232, MAVLINK Video Input/Output: HD-SDI, HDMI, and IP (Ethernet) on both air and ground units. Why Choose This Transmitter? Crystal-Clear Full HD Video: Stream 1080p60 HD video—far superior to analog SD systems. True Plug-and-Fly Simplicity: Designed for quick setup. Get airborne fast, without complicated configuration. Maximum Flexibility: Supports multiple video inputs (SDI, HDMI, Ethernet), allowing you to use virtually any camera type. Extended Range Technology: Features an advanced algorithm for reliable 50km air-to-ground communication. Ready to elevate your drone’s capabilities? This transmitter combines power, clarity, and ease of use for professional-grade performance.
Low-Latency Live View With under 40ms of delay, the FIM‑2450 drone video link delivers real-time visuals, so you can pilot, aim the camera, and adjust the gimbal with precision—all as it happens. Secure Transmission Your wireless video feed is protected with AES‑128 encryption, preventing unauthorized access and keeping your data private. Flexible Frequency Control Choose between 900 MHz and 1.4 GHz frequencies with the FIM‑2450’s universal transmitter, allowing you to adapt to varying RF environments for a reliable, clear signal.
MOPFIM-2450 drone video downlink system has been deployed by law enforcement agencies to add an additional layer of safety and security for carrying out missions on the ground. Drone video link make you see clear what happening in live, which plays an essential role in emergency event such as oil pipe line inspection, high voltage inspection, forest fire monitoring and etc. It is a critical tool for improving situational awareness of people on ground.
| 900MHZ | 902~928 MHz | |
| Frequency | 1.4Ghz | 1430~1444 MHz |
| Bandwidth | 4/8MHz | |
| RF Power |
2W |
|
| Transmit Range | 50km | |
| Transmit Rate | 1.5/3/6Mbps (Video code stream and serial data)The best video stream: 2.5Mbps | |
| Baud Rate | 115200(Adjustable by software) | |
| Rx Sensitivity | -102dBm@4Mhz/-97@8Mhz | |
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction/video codec super error correction | |
| Video Latency | Latency for encoding + transmission + decoding 720P60 1080P30 |
|
| Link Rebuild Time | ||
| Modulation | Uplink QPSK/Downlink QPSK | |
| Video Compression Format | H.264 | |
| Video Color Space | 4:2:0 (Option 4:2:2) | |
| Encryption | AES128 | |
| Start Time | 25s | |
| Power | DC-12V (10～18V) | |

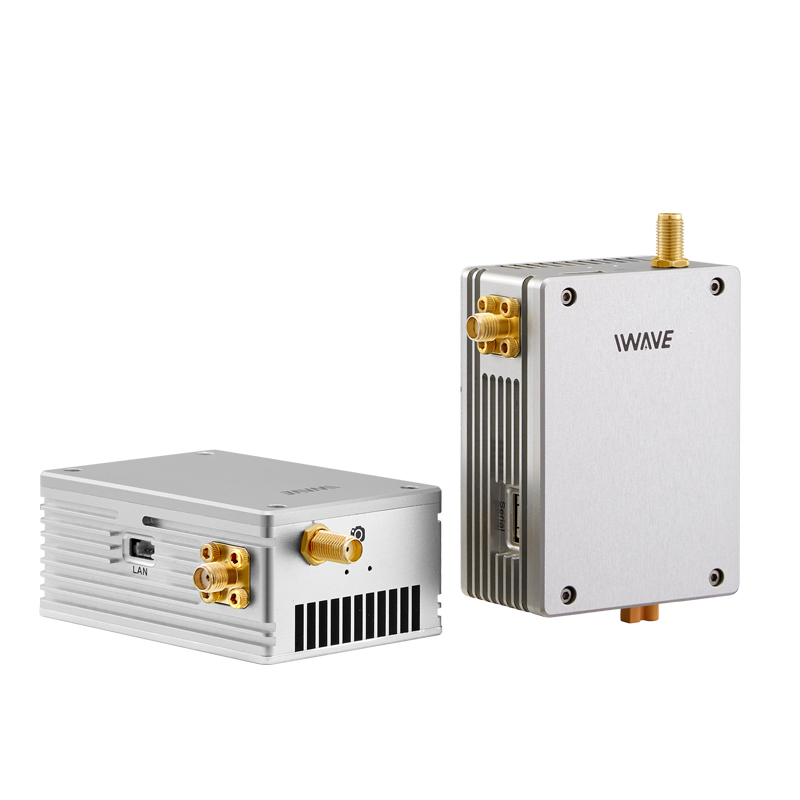

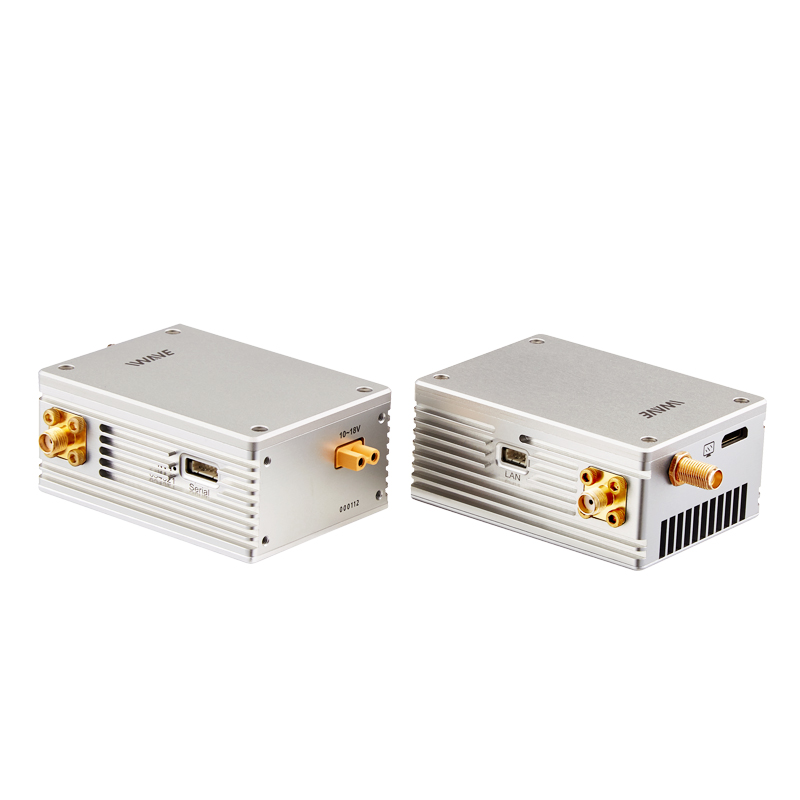

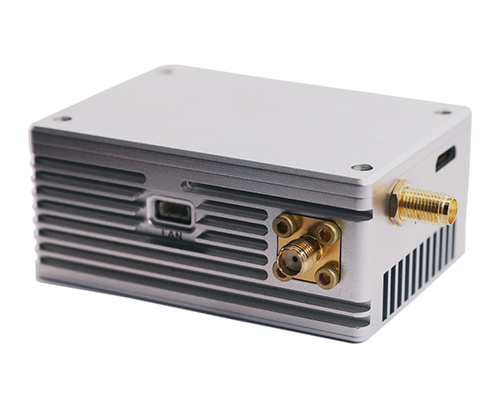

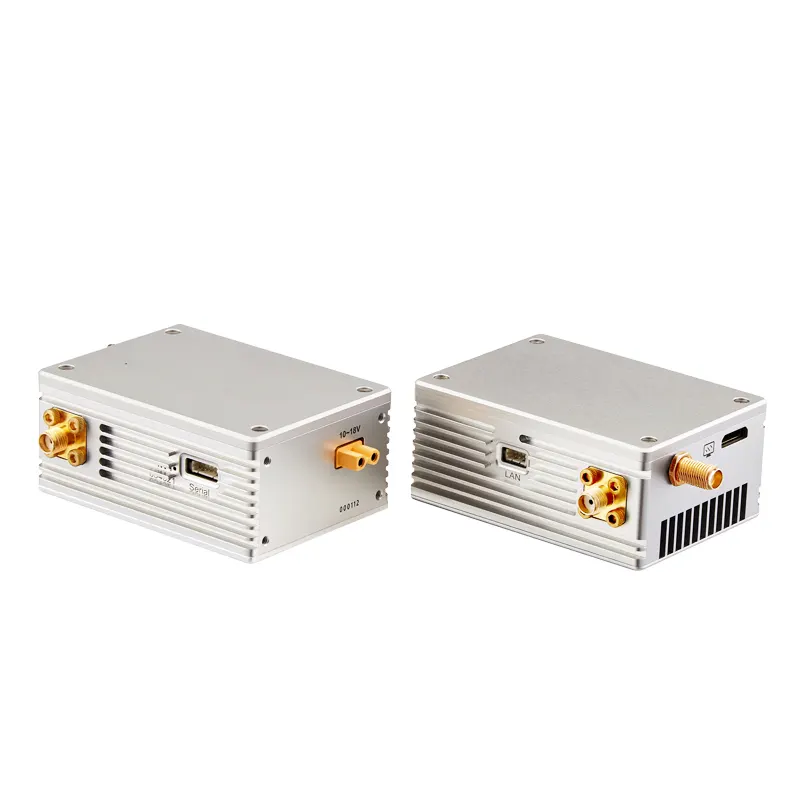

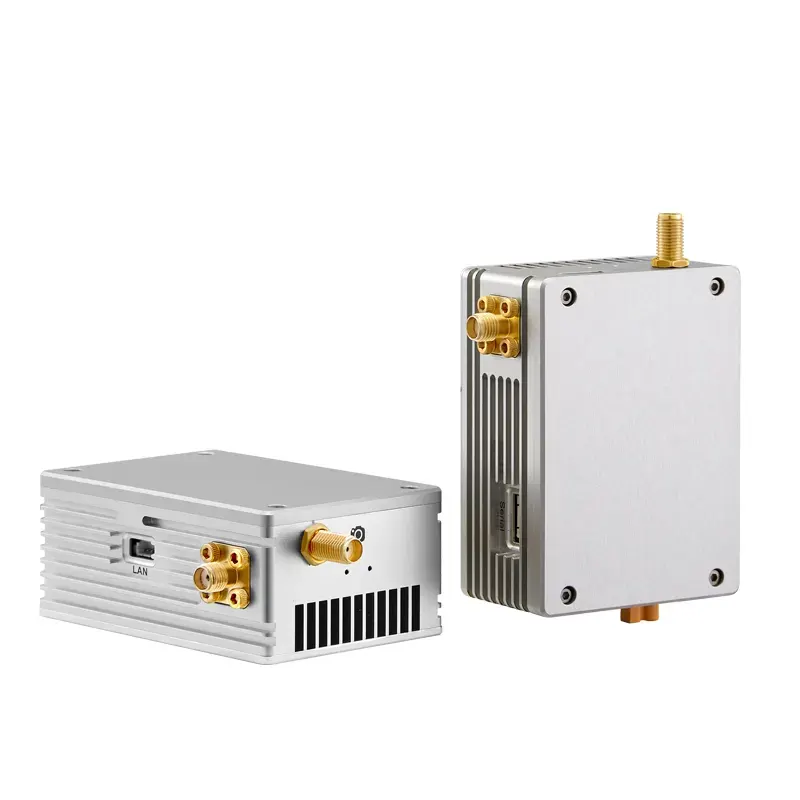

| Interface | Interfaces on Tx and Rx are same 1. Video input/Output: Mini HDMI×1, SMAX1(SDI, Ethernet) 2. Power Input×1 3. Antenna Interface: 4. SMA×2 5. Serial×2: (±13V(RS232)) 6. LAN: 100Mbps x 1 |
|
| Indicators | 1. Power 2. Tx and Rx Working Indicator 3. Ethernet Working Indicator |
|
| Power Consumption | Tx: 17W(Max) Rx: 6W |
|
| Temperature | Working: -40 ~+ 85℃Storage: -55 ~+100℃ | |
| Dimension | Tx/Rx: 73.8 x 54 x 31 mm | |
| Weight | Tx/Rx: 160g | |
| Metal Case Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
