China Moneypro 50km Long Range VTOL HDMI Video Transmitter UHF Radio Link for Drone

China Moneypro Tactical Airborne Adhoc Radios Base Station

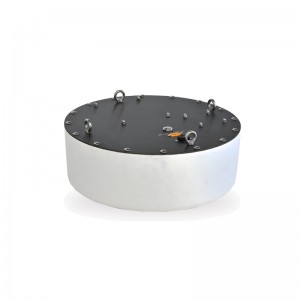

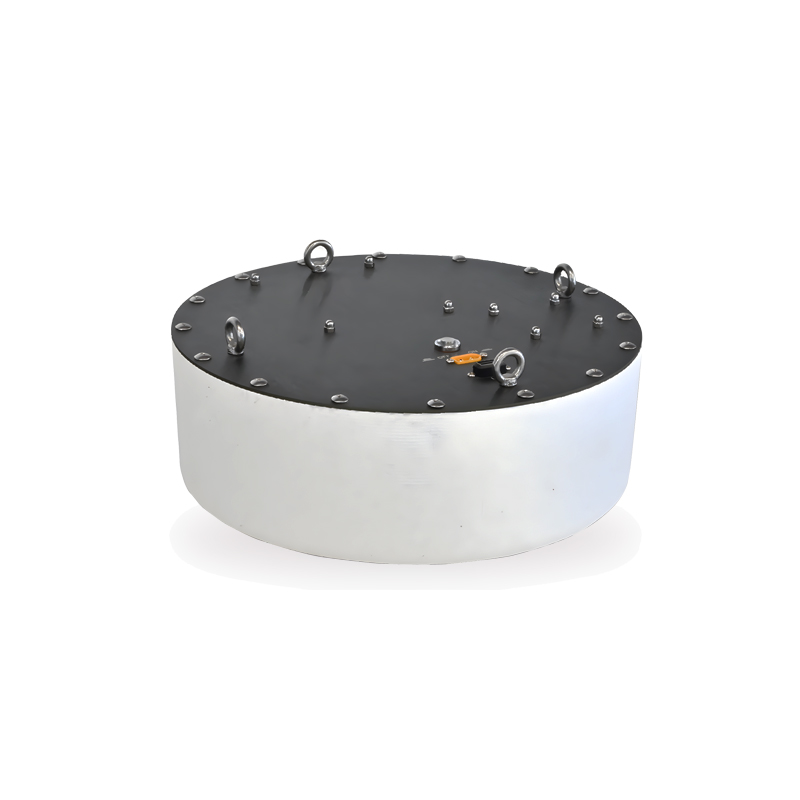

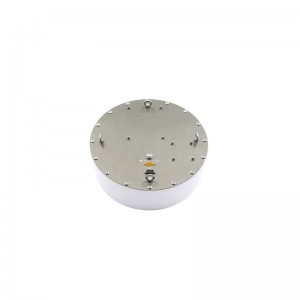

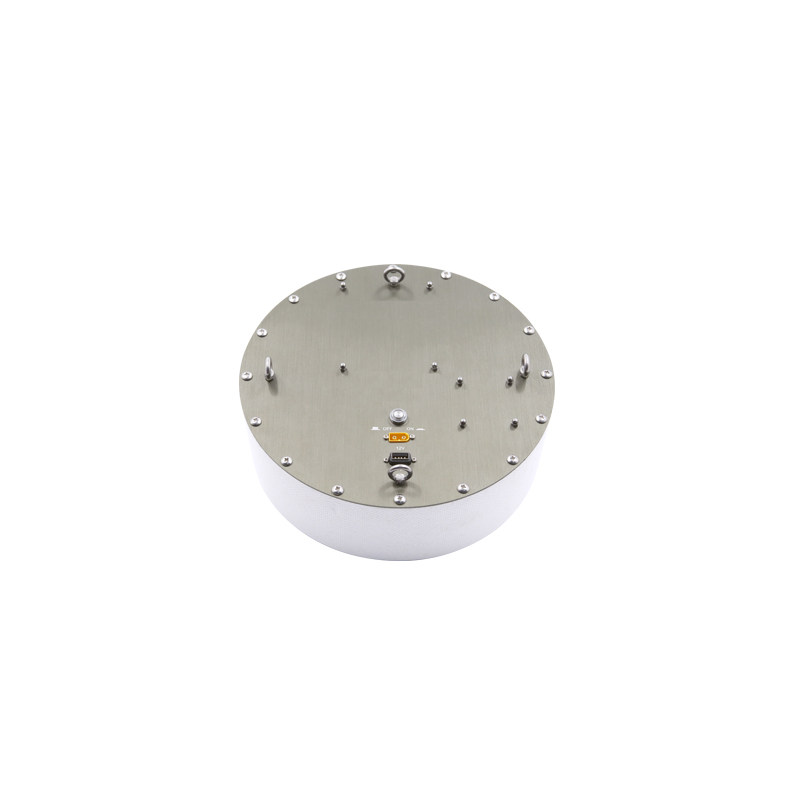

Introducing the Defensor-U25: The Airborne MANET Radio Base Station

Ready for deployment at a moment’s notice, the Defensor-U25 is an unmanned airborne repeater designed to elevate emergency and rescue communications. Using advanced ad-hoc technology, it rapidly establishes multi-hop narrowband networks—ideal when traditional infrastructure fails.

Key Features:

  • UAV-Optimized: Lightweight, compact design with a built-in lithium battery and integrated antenna for rapid deployment.
  • Extended Coverage: Ensures reliable connectivity over wide areas, supporting public safety, emergency response, field operations, and large-scale events.
  • Scalable & Independent: A single frequency supports 1–3 channels and unlimited nodes, creating flexible networks without relying on existing infrastructure.
  • Precision Signal Transmission: With its integrated antenna, the U25 delivers a focused 160° directional signal vertically to the ground, maximizing ground-level communication clarity.

Elevate your communications. Anywhere, anytime.



Category:
Description




Key Features

Rapid Deployment
Create a secure network in seconds. In critical situations, the U25 repeater’s push-to-start function automatically establishes an independent network upon power-up, extending radio coverage instantly when it matters most.

Infrastructure-Free Networking
Operate without reliance on IP links such as fiber or microwave. Using wireless interconnection technology, the U25 quickly forms flexible, multi-hop networks through cascading connections—anywhere, anytime.

Beyond-Line-of-Sight Coverage

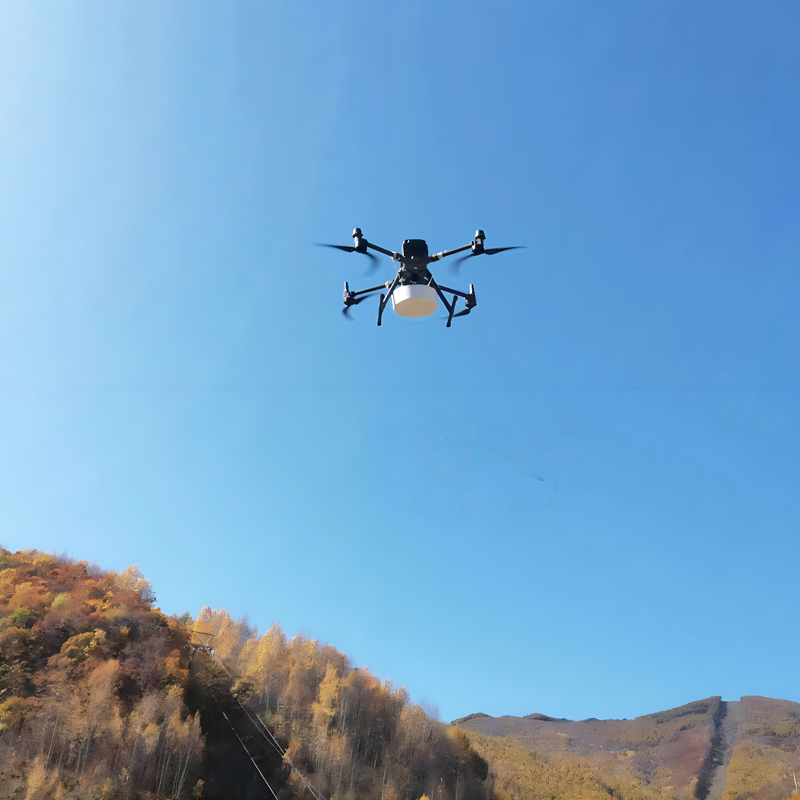

Extend communications over the horizon. When deployed on a UAV at just 100 meters altitude, the U25 provides reliable network coverage across a 15–25 km range.

Airborne-Ready Design
The Defensor-U25 is a fully integrated base station engineered for UAV mounting.

  • Suspended securely with four hanging ropes
  • Compact, lightweight form factor
  • Specialized 160° directional antenna (3dBi gain)
  • Includes an internal lithium battery for up to 10 hours of life
  • Delivers continuous operation for 6–8 hours under typical conditions

Improved for:

  • ✅ Clearer feature descriptions
  • ✅ More active and engaging language
  • ✅ Logical grouping and scannable layout
  • ✅ Consistent technical terminology
  • ✅ Stronger value-focused openings for each section



uav-mounted-base-station
Multi-hops-Narrowband-mesh-Network



Flexible Network Design

A single frequency can support 1–3 channels, enabling versatile configurations: – 2 hops, 3-channel ad-hoc network – 6 hops, 1-channel ad-hoc network – 3 hops, 2-channel ad-hoc networkMultiple Defensor U25 units—or a combination of U25 and other Defensor base stations—seamlessly form a multi-hop narrowband MESH network.

Cross-Platform Connectivity

Built on the proven Defensor hardware platform, the SWaP-optimized U25 extends reliable emergency voice communications to airborne operations. It integrates effortlessly with handheld, solar-powered, vehicular, and portable command systems for unified cross-domain connectivity.

Remote Monitoring & Network Awareness

The ad-hoc network created by Defensor-U25 repeaters can be monitored in real time using the portable Defensor-T9 on-site command center. Track online/offline status, battery levels, and signal strength—so you always know the state of your network.

Key Applications

When public networks fail, the IWAVE narrowband MESH system rapidly establishes a resilient communication network for: – Emergency rescue and public safety operations – Major event security – Field operations and emergency responseIt enables on-the-move communications, dynamically adapting to both ground and airborne platform speeds—ideal for highly mobile, dispersed teams.

Ready to deploy reliable, adaptable communications—anywhere, anytime.



UAV-Based-radio-repeater


Specifications

Tactical Airborne Adhoc Radios Base Station(Defensor-U25)
​General Transmitter
Frequency VHF: 136-174MHz
UHF1: 350-390MHz
UHF2: 400-470MHz		 RF Power 2/5/10/15/20/25W(adjustable by software)
Channel Capacity 32 4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE
Channel Spacing 12.5khz Conducted/Radiated Emission -36dBm
-30dBm>1GHz
Operating Voltage 12V(rated) Modulation Limiting ±2.5kHz @ 12.5 kHz
±5.0kHz @ 25 kHz
Frequency Stability ±1.5ppm Adjacent Channel Power 60dB @ 12.5 kHz
70dB @ 25 kHz
Antenna Impedance 50Ω
Dimension φ253*90mm
Weight 1.5kg(3.3lb)   Environment
Battery 6000mAh Li-ion battery (standard) Operating Temperature  -20°C  ~ +55°C
Battery Life with standard battery 10hours(RT, max RF power) Storage Temperature  -40°C  ~ +85°C
Receiver
Sensitivity -120dBm/BER5% GPS
Selectivity 60dB@12.5KHz/Digital TTFF(Time To First Fix)cold start
Intermodulation
TIA-603
ETSI		 65dB @ (digital) TTFF (Time To First Fix)hot start
Spurious Response Rejection 70dB(digital) Horizontal Accuracy
Conducted Spurious Emission -57dBm Positioning Support GPS/BDS
