Crystal-Clear Wireless Video Transmission
Experience unparalleled performance with our compact wireless system, engineered for demanding environments.
Key Features:
Extended Range: Achieve reliable video transmission at distances of 14-16 km.
Premium Visuals: Stream 1080P HD video with exceptionally low latency.

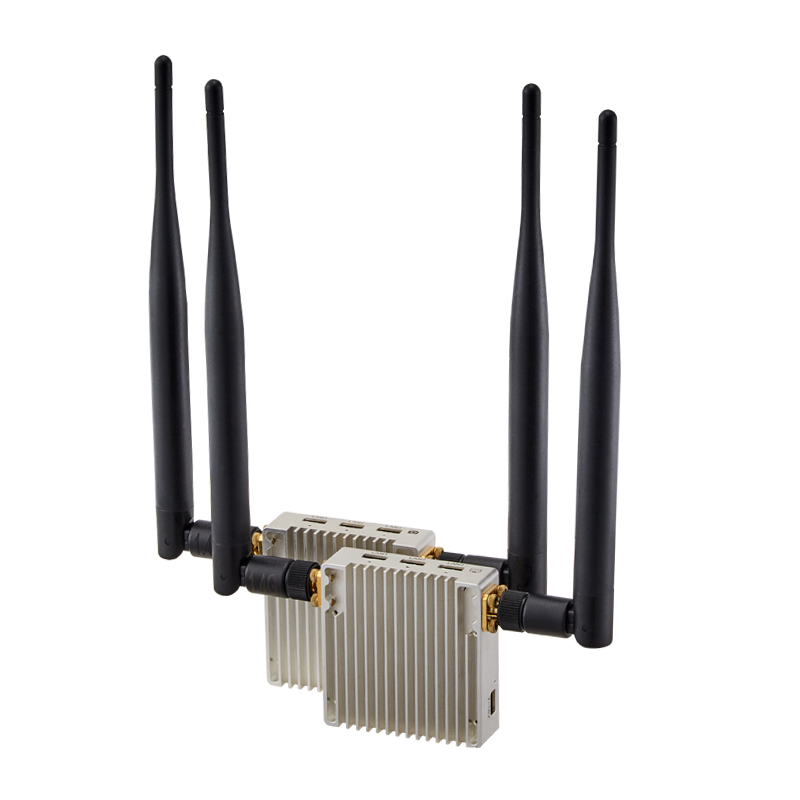

Unmatched Stability: Dual antennas (Tx & Rx) ensure a robust and stable signal link.
Optimized Protocol: Proprietary COFDM technology is specifically fine-tuned for seamless wireless video.

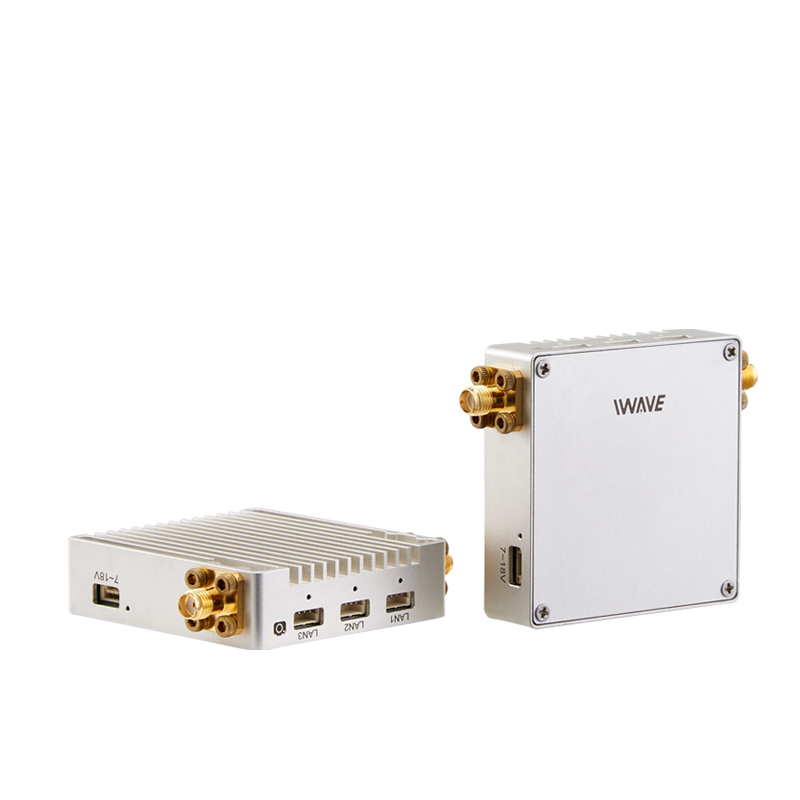

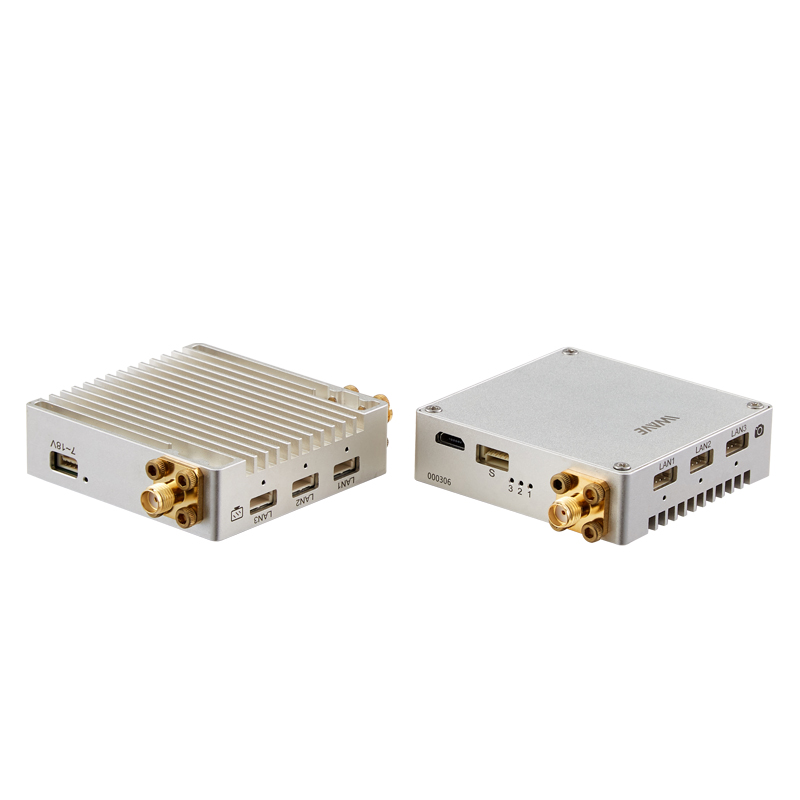

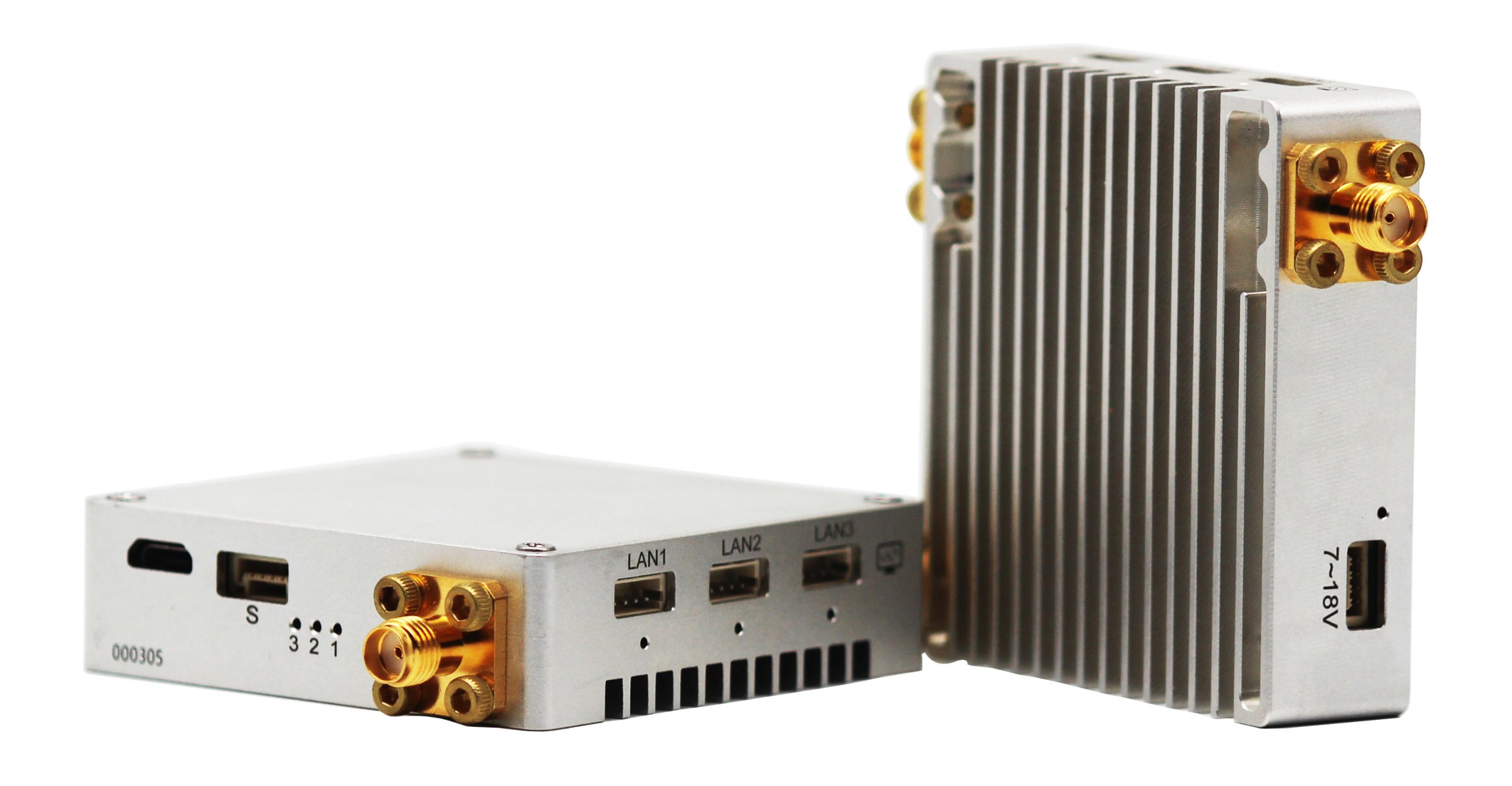

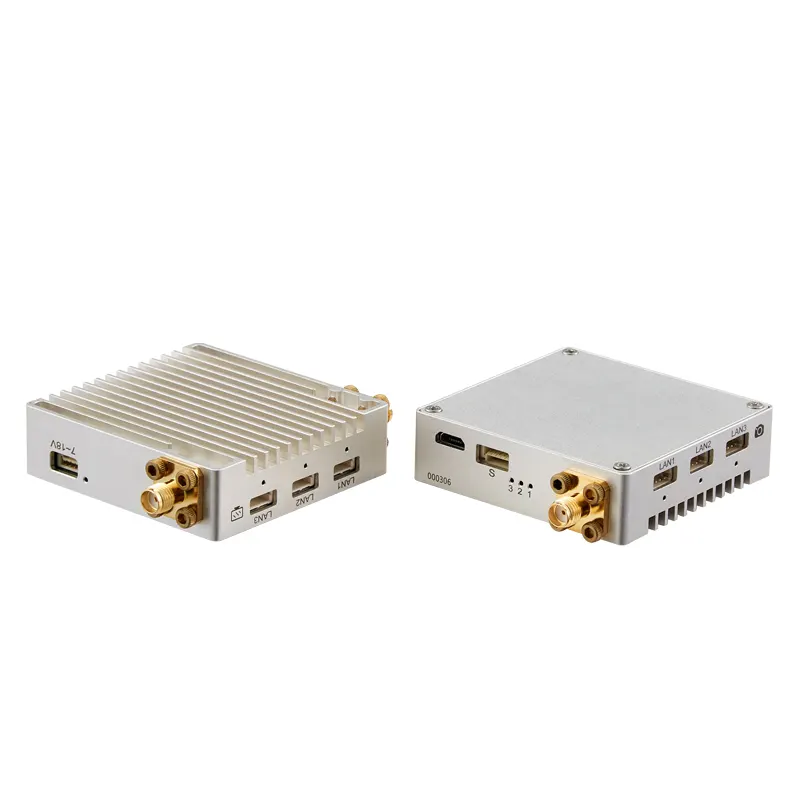

Compact & Lightweight: A single, integrated unit weighing just 65g (2.3oz) for easy integration.
Strong Security: AES 128-bit encryption implemented on FPGA for secure data protection.

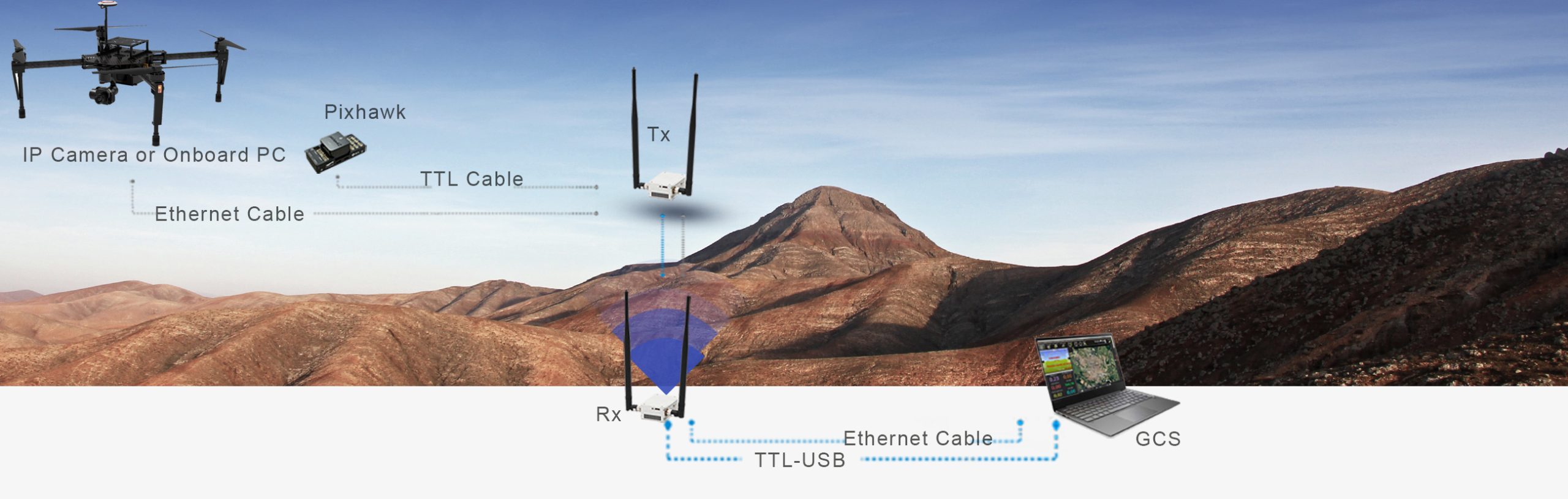

Flexible Connectivity: Features three Ethernet (RJ45) ports to support multiple IP payloads and two-way TCP/IP/UDP data transmission.
NLOS Capable: Maintains communication in Non-Line-of-Sight (NLOS) conditions on both 800MHz and 1.4GHz bands.
Anti-Interference: Automatic frequency hopping and low-level re-transmission combat signal interference.
Bi-Directional Link: TDD link allows for simultaneous video and telemetry/command data.
Frequency Options: Choose between UHF 800MHz and 1.4GHz bands to suit your operational needs.
Power Efficient: Low power consumption at 5W (Tx) and 3.5W (Rx).
- Rugged Operation: Designed for reliable performance in high-temperature environments.
Long-Range Wireless Communication With a low-power RF system (500mW), advanced frequency-hopping algorithms, and superior anti-interference technology, our solution delivers reliable communication over distances up to 16 kilometers. Frequency-Hopping Spread Spectrum (FHSS) Technology Our proprietary FHSS algorithms continuously monitor link quality—evaluating signal strength (RSRP), signal-to-noise ratio (SNR), and bit error rate (SER). If conditions degrade, the system automatically hops to an optimal frequency, ensuring stable and interference-resistant communication. Multipath Interference Elimination Using Coded Orthogonal Frequency Division Multiplexing (COFDM), we effectively cancel out multipath distortion, maintaining signal integrity even in challenging long-range transmissions. Built for Complex Environments Ideal for urban and industrial settings, our system supports Non-Line-of-Sight (N-LOS) communication. It delivers strong radio signals, overcomes blind spots, and resists interference—keeping your connection solid where others fail. Real-Time Security With AES128 encryption, your video and data feeds are protected against unauthorized access and malicious attacks—all without requiring operator intervention. Versatile Connectivity The MOPFNM-8416 dual-band (1.4GHz and 800MHz) data and video link supports UART data input and features 3 LAN ports. Easily connect UAVs, drones, or other unmanned platforms to onboard PCs, IP cameras, and additional IP payloads.
Enhanced Version:
Introducing the MOPFNM-8416 800MHz/1.4GHz Datalink — a professional-grade wireless solution engineered for industrial drones and UAVs. Designed for demanding applications like aerial mapping, route inspection, and wildlife monitoring, this datalink delivers reliable, long-range communication with minimal transmission power.
Built with advanced RF modulation technology, the MOPFNM-8416 ensures strong anti-interference performance, enabling clear and stable data transmission even in challenging environments. Whether you’re surveying terrain, inspecting infrastructure, or supporting conservation efforts, this system provides the dependable connectivity required for mission-critical operations.
Key Improvements:
- Clearer Structure: Separated into two focused paragraphs for better readability.
- Stronger Opening: Starts with an engaging introduction.
- Active Language: Replaced passive phrasing with more direct, confident statements.
- Application Context: Expanded slightly on use cases to enhance relevance.
- Technical Clarity: Simplified explanation of RF technology benefits.
- Professional Tone: Maintains a technical yet accessible style suitable for industrial users.
| Specifications | ||
| Frequency | 800Mhz | 806~826 MHz |
| 1.4Ghz | 1428~1448 MHz | |
| Bandwidth | 8MHz | |
| RF Power | 0.6watt(Bi-Amp, 250mw average power of each power amplifier) | |
| Transmit Range | 800Mhz: 16km1400Mhz: 14km | |
| Transmit Rate | 6Mbps (Video Stream, Ethernet Signal and serial data share)The best video stream: 2.5Mbps | |
| Baud Rate | 115200bps(Adjustable) | |
| Rx Sensitivity | -104/-99dbm | |
| Fault Tolerance Algorithm | Wireless base band FEC forward error correction | |
| Video Latency | The video not be compressed. No latency | |
| Link Rebuild Time | ||
| Modulation | Uplink QNSK/Downlink QNSK | |
| Encryption | AES128 | |
| Start Time | 15s | |
| Power | DC-12V (7～18V) | |

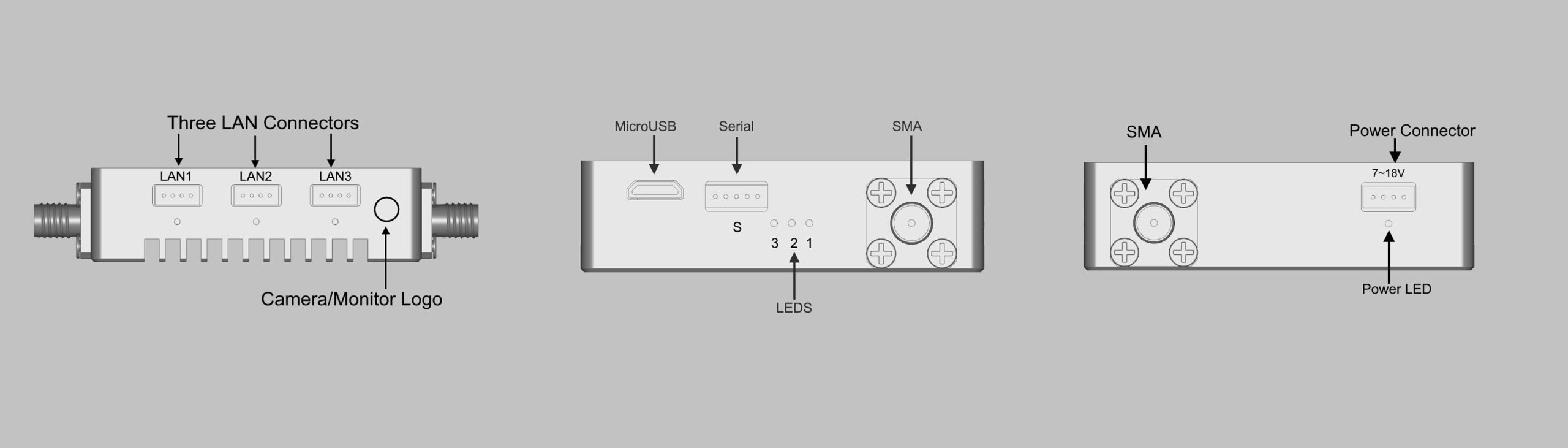

| Interface | 1. Interfaces on Tx and Rx are same 2. Video input/Output: Ethernet×3 3. Power Input Interface×1 4. Antenna Interface: SMA×2 5. Serial×1: (Voltage:±13V(RS232), 0~3.3V(TTL) |
|
| Indicators | 1. Power 2. Ethernet Status Indicator 3. Wireless Connection Setup Indicator x 3 |
|
| Power Consumption | Tx: 5WRx: 3.5W | |
| Temperature | Working: -40 ~+ 85℃Storage: -55 ~+85℃ | |
| Dimension | Tx/Rx: 57 x 55.5 x 15.7 mm | |
| Weight | Tx/Rx: 65g | |
| Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
