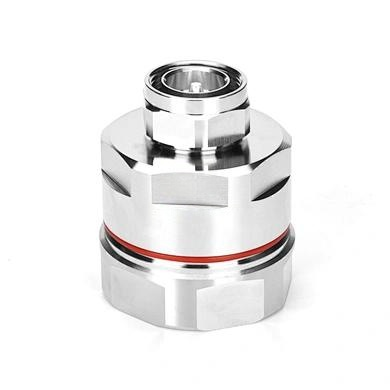

In the demanding world of RF communication, a stable and reliable connection is not a luxury—it is the bedrock of performance. Signal degradation, data loss, and system downtime are the costly consequences of subpar connectivity. The Cable Connector 7/16 male RF Connector For 1-5/8 flexible cable emerges as a premier solution, engineered to meet the rigorous demands of modern wireless infrastructure. This isn’t just a connector; it is a precision instrument designed to preserve signal integrity from the base station to the antenna. When you require a connector that can withstand environmental stress while delivering flawless electrical performance, this component stands as a testament to quality engineering. Choosing the right connector for large-diameter 1-5/8 flexible cable is critical, and the 7/16 DIN interface has long been the gold standard for low passive intermodulation (PIM) and high power handling in base station applications.
nn
Superior Construction and Material Excellence
n
The integrity of any RF connection begins with the materials used in its construction. The Cable Connector 7/16 male RF Connector For 1-5/8 flexible cable is built from a carefully selected combination of metals and polymers to ensure both outstanding electrical conductivity and long-term mechanical durability. The housing is machined from brass and finished with a silver plating, which provides excellent corrosion resistance and superior surface conductivity. The center and outer contacts utilize tin-bronze with a silver plating, ensuring minimal resistance at the critical mating interface. To guarantee consistent dielectric performance across a wide frequency range, the insulator is crafted from PTFE, a material known for its low loss and high thermal stability. The environmental seal is maintained by a silicone rubber gasket, while the coupling nut is made from nickel-plated brass for smooth, reliable threading and resistance to galling.
nn
Performance Specifications at a Glance
n
To fully appreciate the capability of this connector, one must examine its technical parameters. These specifications define its suitability for high-power, low-loss applications.
nn
| Material and Plating | |
|---|---|
| Center Contact | Tin-bronze / Silver Plated |
| Outer Contact | Tin-bronze / Silver Plated |
| Body | Brass / Silver Plated |
| Dielectric | PTFE |
| Gasket | Silicon Rubber |
| Nut | Brass / Nickel Plated |
nn
| Key Electrical Characteristics | |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC – 2.5 GHz |
| Insulation Resistance | ≥ 10000 MΩ |
| Center Contact Resistance | 5 mΩ |
| Outer Contact Resistance | ≤ 1.0 mΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss | ≤ 0.10 dB @ DC – 3.0 GHz |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.20 @ DC – 3.0 GHz |
| Passive Intermodulation (PIM) | ≤ -160 dBc (2 x 43 dBm) |
nn
| Mechanical and Environmental Data | |
|---|---|
| Durability (Matings) | ≥ 500 cycles |
| Operating Temperature Range | -40°C to +85°C |
| RoHS Compliant | Yes |
nn
Applications Across the RF Landscape
n
Base Station and Wireless Infrastructure
n
The primary home for the Cable Connector 7/16 male RF Connector For 1-5/8 flexible cable is within communication base stations. Its robust design and high power handling capability make it the preferred choice for connecting the feeder cable to the antenna, the tower-mounted amplifier (TMA), and the radio unit. The exceptionally low PIM rating of ≤ -160 dBc is critical in modern multi-carrier and multi-radio systems, where even small levels of intermodulation can interfere with receiver sensitivity and degrade network capacity. This connector ensures that the link between the equipment and the antenna is the strongest, most transparent part of the system.
n
Network Optimization and Professional RF Equipment
n
Beyond new construction, this connector is invaluable for wireless network optimization and maintenance. When upgrading or servicing existing infrastructure, reliability is paramount. The high-durability rating of 500 mating cycles ensures that technicians can connect and disconnect test equipment multiple times without degrading performance. Furthermore, in professional RF equipment, from high-power transmitters to laboratory testing apparatus, the 7/16 interface offers a level of mechanical and electrical stability that smaller connector types simply cannot match. Its wide operating temperature range of -40°C to +85°C ensures consistent performance in outdoor and often harsh environments, making it a versatile and trustworthy component for any demanding application.
nn
Conclusion: A Foundation for Reliable Signal Transmission
n
In the complex ecosystem of RF communication, every component plays a vital role. The Cable Connector 7/16 male RF Connector For 1-5/8 flexible cable distinguished itself not just through its robust construction and precision engineering, but through its proven ability to maintain signal clarity under the most challenging conditions. From the meticulous selection of silver-plated brass and tin-bronze to the stringent electrical specifications of 50-ohm impedance and ultra-low PIM, this connector is built for excellence. It is designed for professionals who understand that a connection is only as strong as its weakest link. By choosing this connector, you are investing in stability, reliability, and the uncompromised quality of your RF signal transmission, ensuring your network performs at its absolute best, day in and day out.
