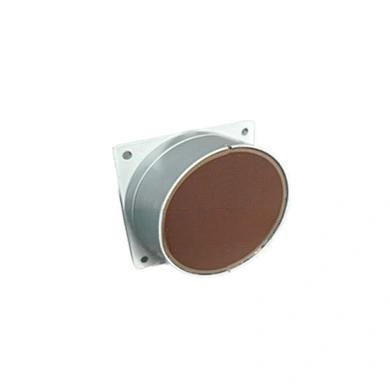

The MOP2060-B: A Comprehensive Guide to the 2-6GHz High-Stability Planar Helical Antenna
nnIn the demanding world of wireless communications, the antenna is the unsung hero, dictating the reach, reliability, and resilience of the entire system. Enter the MOP2060-B, a high-performance Planar Helical Antenna engineered for modern wideband communication challenges. Its core strength lies in its ability to deliver full coverage across the 2GHz to 6GHz frequency band, positioning it as a formidable 2-6GHz Wideband Antenna. More than just a spectrum filler, this device is recognized for its exceptional environmental adaptability and signal stability, earning its place as a High-Stability Antenna in the industry.nnWhat truly sets this antenna apart is its application of right-handed circular polarization (RHCP) technology. This is not merely a technical checkbox; it is a critical feature for mitigating multipath interference—a common pitfall in urban and indoor environments where signals bounce off walls and structures. By employing RHCP, the MOP2060-B ensures cleaner, more reliable data streams. Performance specifications are equally impressive: a beam center gain of ≥2dB, an azimuth beam width of ≥90°, and a tilted beam width of ≥40° (absolute gain ≥-2dBi). These wide-beam characteristics allow for robust signal capture over a large area, significantly reducing blind spots and ensuring consistent connectivity.nnThe design philosophy behind this Planar Helical Antenna balances compactness with rugged durability. Its form factor is optimized for integration into small-footprint devices such as IoT terminals and wireless communication modules. The structural integrity is further enhanced by a housing made from high-strength Alufer material, finished with a greyish sea coating that resists both corrosion and wear. This ensures longevity even in harsh conditions. The inclusion of a standard SMA-50K stainless steel connector provides a vibration-resistant, firm connection, which is paramount for maintaining the performance of a High-Stability Antenna in mobile or industrial environments.nn
Technical Specifications of the MOP2060-B
nnTo better understand the precise capabilities of this antenna, the following table outlines its key parameters and performance metrics:nn
| Parameter | Value / Description |
|---|---|
| Frequency Range | 2GHz ~ 6GHz |
| Polarization Method | Right-Handed Circular Polarization |
| Gain (Beam Center) | ≥2 dB |
| Beam Width (Azimuth) | ≥90° (absolute gain ≥-2dBi) |
| Beam Width (Inclination) | ≥40° (absolute gain ≥-2dBi) |
| Standing Wave Ratio (VSWR) | ≤2.5 |
| Connector Type | SMA-50K (Stainless Steel) |
| Reference Dimensions (W×D×H) | ≤63mm × 63mm × 38.5mm (excl. socket) |
| Weight | ≤60g |
| Antenna Cavity Material | Alufer |
| Surface Finish | Greyish Sea Coating (Corrosion/Wear Resistant) |
| Working Temperature | -40°C to +55°C |
| Storage Temperature | -55°C to +70°C |
nnThis data underscores the antenna’s capability as a versatile 2-6GHz Wideband Antenna. The low VSWR of ≤2.5 is particularly noteworthy, as it minimizes signal reflection and power loss, leading to more efficient transmission. The wide temperature range further cements its status as a High-Stability Antenna, capable of operating flawlessly in environments ranging from frigid outdoor installations to the heat of an industrial enclosure.nn
Broad Application Scenarios for the Planar Helical Antenna
nnThe inherent versatility of the MOP2060-B makes it an ideal choice for a diverse array of high-demand communication fields.nn
Empowering Wireless Communication Systems
nnAs a primary Planar Helical Antenna, it seamlessly integrates into wireless communication equipment requiring full-band support from 2GHz to 6GHz. Whether for advanced Wi-Fi 6E networks, 5G base station backhaul, or point-to-point communication links, its consistent gain and wide beamwidth provide the necessary signal coverage and data throughput.nn
Precision Data in Industrial Testing
nnFor industrial testing instruments, accuracy is paramount. The 2-6GHz Wideband Antenna capabilities of the MOP2060-B allow it to capture wideband signals for spectrum analysis, network testing, and signal generation. Its environmental resistance ensures that these tests remain reliable even on the factory floor, where temperatures and dust levels fluctuate.nn
Robust Connectivity in Vehicle-Mounted Systems
nnIn the dynamic environment of vehicle-mounted communication systems—be it for public safety, fleet management, or autonomous driving—the demand for a High-Stability Antenna is absolute. The MOP2060-B’s vibration-resistant connector, compact footprint, and wide temperature tolerance make it a perfect fit for these mobile applications, maintaining a solid link even over rough terrain.nn
Smart Home and IoT Gateways
nnThe low-profile design of this Planar Helical Antenna is a boon for the smart world. It can be easily housed inside smart home gateways, providing the backbone for a myriad of connected devices. Its broad coverage reduces the number of access points needed, while its high stability ensures that sensor data and control signals arrive without interruption.nnIn conclusion, the MOP2060-B is a superb example of modern antenna engineering. It masterfully combines the space-saving form factor of a Planar Helical Antenna with the exhaustive bandwidth of a 2-6GHz Wideband Antenna and the unwavering reliability of a High-Stability Antenna. For any application that requires a compact, durable, and high-performance solution across the 2-6 GHz spectrum, this antenna stands as a top-tier choice, ready to meet the most rigorous communication demands of today and tomorrow.
