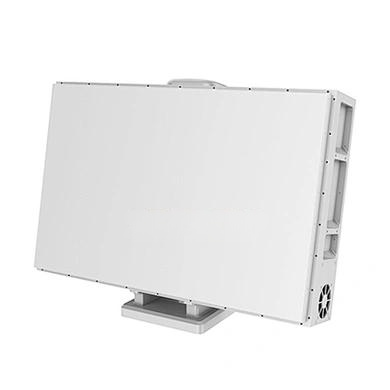

Revolutionizing Surveillance with X-Band Target Surveillance Radar Technology
nnIn the realm of modern security and defense, the ability to detect, track, and classify potential threats with precision is paramount. The X-Band Target Surveillance Radar emerges as a game-changing solution, offering an advanced one-dimensional active phased array three-coordinate system. This cutting-edge technology is engineered to provide exceptional detection and tracking capabilities across a broad spectrum of ground, marine, and low-altitude targets—including pedestrians, vehicles, vessels, and small flying objects. By operating within the X-Band frequency range, this radar excels in low-altitude target acquisition and leverages artificial intelligence for superior classification, solidifying its role as an indispensable tool for security, defense, and comprehensive situational awareness.nnWhat sets this radar apart is its ability to deliver real-time environmental awareness, accurately detecting and categorizing targets over impressive distances. From compact, low-flying platforms detectable up to 3 kilometers to large vessels that can be tracked up to 20 kilometers, the system provides unmatched coverage. With a power rating of just 330W, it achieves high energy efficiency without compromising performance, making it an eco-conscious choice for prolonged operations. Its compact and lightweight design facilitates flexible deployment options, whether in fixed installations, vehicle-mounted systems, or tripod-mounted setups, ensuring adaptability to diverse operational environments.nn
Advanced Technical Specifications and Performance
nnThe technical prowess of the X-Band Target Surveillance Radar is rooted in its one-dimensional active phased array architecture, which enables rapid beam steering and high-precision tracking. Employing electronic azimuth phase scanning, the system covers a wide surveillance area of 90° in azimuth and 20° in elevation, all without mechanical rotation. This design not only enhances reliability but also reduces wear and tear. The radar delivers exceptional precision with an azimuth error of ≤0.4° and a distance error of ≤10 meters, supporting reliable threat identification and precise positioning. It can handle a target capacity of ≥256 objects simultaneously, covering a speed range from 0.5 to 100 m/s, and features a data refresh rate of 3 seconds for near-real-time responsiveness.nn
Intelligent AI Identification Module
nnA key differentiator of this system is its advanced AI identification module. Unlike traditional radars that may struggle with false alarms caused by birds or environmental clutter, this radar intelligently distinguishes flying objects from non-threats using motion characteristics and trajectory patterns. This significantly reduces false alarms and enhances operational efficiency, allowing security personnel to focus on genuine threats. The integration of AI analytics transforms raw data into actionable intelligence, making the radar a cornerstone of modern surveillance strategies.nn
Detailed Specifications Table
nn
| Indicator | Parameter | Value |
|---|---|---|
| Operating Frequency | X Band | – |
| Technical System | – | One-dimensional active phased array three-coordinate |
| Scanning Method | – | Azimuth phase scan |
| Detection Distance | DJI Mavic 3E | ≥3 km |
| Detection Distance | Pedestrian | ≥6 km |
| Detection Distance | Vehicle, Ship | ≥20 km |
| Detection Range | Azimuth | 90° |
| Detection Range | Elevation | 20° |
| Detecting Targets | – | Comprehensive identification of UAV targets or birds through AI, target flight characteristics, etc. |
| Distance Error | – | ≤10 m |
| Azimuth Error | – | ≤0.4° |
| Pitch Error | – | ≤0.7° |
| Target Capacity | – | ≥256 |
| Speed Range | – | 0.5–100 m/s |
| Data Rate | – | 3 s |
| Machine Weight | – | ≤35 kg |
| Array Size | – | 580 × 400 × 120 mm |
| Information Interface | – | Ethernet |
| Power Supply | – | AC 220V/50Hz |
| Power Consumption | – | 330W |
| Installation Method | – | Fixed, vehicle-mounted, tripod-mounted |
nn
Efficiency and Deployment Flexibility
nnThe efficient 330W power consumption supports long-duration deployments, ensuring continuous operation without excessive energy costs. Additionally, the simplified one-dimensional array design reduces maintenance requirements compared to more complex two-dimensional systems. This translates to lower total cost of ownership and greater reliability in the field. Whether securing a perimeter, protecting critical infrastructure, or conducting reconnaissance missions, this X-Band radar combines long-range detection, high accuracy, and intelligent recognition to address modern surveillance challenges head-on.nn
Real-World Applications and Benefits
nnIdeal for perimeter security, critical infrastructure protection, and reconnaissance missions, the radar offers a comprehensive solution for a variety of sectors. Its ability to detect and classify targets with precision, even in challenging environments, makes it a trusted asset for military, government, and commercial operations. By providing operators with stable, actionable data, the system enhances decision-making and response times. Supported by advanced signal processing and AI analytics, the X-Band Target Surveillance Radar establishes itself as a high-performance solution in target surveillance and low-altitude monitoring technology.nn
Conclusion: The Future of Target Surveillance
nnIn summary, the X-Band Target Surveillance Radar represents a significant leap forward in surveillance technology. Its integration of AI-driven classification, high-precision tracking, and energy-efficient design makes it an ideal choice for those seeking reliable and intelligent threat detection. As security challenges evolve, this radar stands ready to deliver unparalleled performance, ensuring that operators stay one step ahead. For critical infrastructure, border security, or military applications, the X-Band Target Surveillance Radar is the definitive solution for modern surveillance needs.
