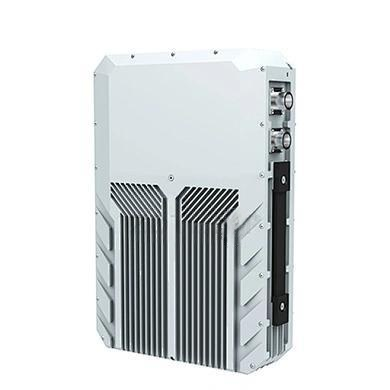

Compact Security with the Target Surveillance Radar
nnIn today’s rapidly evolving security landscape, the need for agile and powerful monitoring solutions has never been greater. This advanced portable radar represents the cutting edge of compact surveillance technology, purpose-built to address modern low-altitude security challenges across defense and public protection scenarios. As a lightweight target surveillance radar, it provides exceptional detection performance for small, low-observable flying objects, commercial aerial platforms, and even bird flocks that may intrude into restricted airspace. Operating in the high-frequency Ku-band, the system employs advanced 2D phase scanning technology to deliver real-time three-dimensional tracking with professional-grade precision, while its compact design enables single-operator deployment within minutes.nn
Unmatched Portability and High-Performance Detection
nnThe system’s core strength is its exceptional blend of portability and high performance. Weighing less than 12 kg, this portable radar achieves a detection range of over 2.5 km for targets with a 0.01 m² radar cross-section. The high-performance 2D phase scanning array supports 90° azimuth coverage and 0°–30° elevation tracking, meeting strict professional surveillance standards with distance error ≤10 m, azimuth error ≤1.5°, and elevation error ≤0.7°. This combination of light weight and precise detection makes it an ideal target surveillance radar for rapid response scenarios.nn
AI-Driven Intelligence and Threat Classification
nnAt the center of this target surveillance radar is an intelligent AI processing module that classifies targets by analyzing flight profiles and movement patterns, effectively distinguishing between suspicious aerial objects, general platforms, and biological targets. It monitors up to 100 moving targets simultaneously, with full situational updates every six seconds. The 2D phase scanning supports agile beam steering without mechanical rotation, ensuring stable operation in harsh environments. The all-digital phased array design enhances anti-interference performance, with speed detection ranging from 1 to 80 m/s.nn
Technical Specifications and Performance Parameters
nnTo provide a clear understanding of the system’s capabilities, the following table outlines the key technical indicators of this advanced target surveillance radar:nn
| Parameter | Value |
|---|---|
| Operating Frequency | Ku-Band |
| Technical System | 2D phased array three-coordinate |
| Scanning Method | 2D phase scanning |
| Detection Distance | ≥2.5 km (RCS = 0.01 m²) |
| Detection Range | 90° @ azimuth, 0°–30° @ elevation |
| Distance Error | ≤10 m |
| Azimuth Error | ≤1.5° |
| Pitch Error | ≤0.7° |
| Target Capacity | ≥100 |
| Speed Range | 1–80 m/s |
| Data Rate | 6 s @ search |
| Machine Weight | 11 kg |
| Dimensions | 280 × 400 × 100 mm |
| Information Interface | Ethernet |
| Power Supply | 24 VDC |
| Power Consumption | 300 W |
| Installation Method | Single soldier carrying, tripod installation, etc. |
nn
Exceptional Operational Flexibility for Modern Missions
nnStandard Ethernet interfaces allow smooth integration with command systems, while the efficient power scheme supports vehicle-mounted, fixed, and battery-powered field deployment. This target surveillance radar delivers outstanding operational flexibility for modern security missions. Rapid deployment enables temporary surveillance coverage in under three minutes, while AI-driven recognition greatly reduces false alarms. Applications include forward area protection, coastal monitoring, critical infrastructure perimeter security, convoy protection, and border surveillance.nn
Rugged Design and Harsh Environment Performance
nnWith rugged construction and an operating temperature range of -30°C to +60°C, the target surveillance radar ensures stable performance in extreme environments. Its intuitive interface supports quick decision-making through threat ranking and trajectory prediction. Future-ready software updates continuously enhance target recognition, while the open architecture integrates with electro-optical systems, jamming devices, and other security equipment.nn
Cost-Effective and Long-Lasting Operation
nnModular design and remote diagnostics lower lifecycle costs, with power consumption as low as 300 W for extended field use. This efficiency allows for prolonged missions without frequent recharging or refueling, making it a practical choice for remote or continuous operations.nn
Conclusion: A New Benchmark in Airspace Security
nnBy combining professional detection accuracy, high mobility, and intelligent analysis, this 2D phase scanning solution sets a new benchmark for compact, high-efficiency airspace security systems. The target surveillance radar not only meets but exceeds the demands of modern defense and public protection, offering a reliable tool for safeguarding airspace against a wide range of threats. Whether deployed on a remote border or at a critical infrastructure site, this system ensures that operators maintain a clear, actionable picture of their environment.
