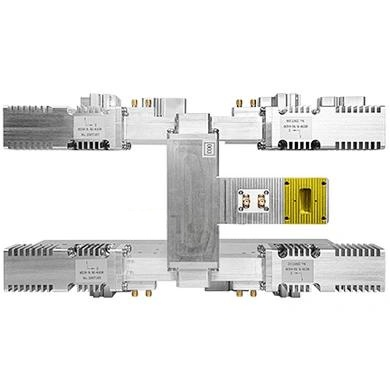

Unleashing High-Frequency Potential: The MOPPD9-9.5G-432 Waveguide Combiner
nnIn the rapidly evolving landscape of wireless communications, radar technology, and electronic warfare, the ability to manage high-power, high-frequency signals with precision is paramount. The MOPPD9-9.5G-432 waveguide combiner emerges as a critical component, engineered to meet the stringent demands of these advanced systems. Operating within the 9 to 9.5 GHz frequency band, this component is not just a passive device; it is a sophisticated piece of engineering designed to optimize signal integrity, maximize power handling, and ensure system reliability.nnAs 5G networks expand and radar systems become more complex, the need for robust signal combining solutions intensifies. The MOPPD9 series rises to this challenge, leveraging cutting-edge waveguide design and advanced material science to deliver consistent, top-tier performance even under extreme environmental stress. Whether it is channeling high-power signals in a military radar array or merging multiple frequency bands in a dense 5G urban base station, this waveguide combiner is built to excel.nn
Core Technology and Design Philosophy
nnThe heart of the MOPPD9-9.5G-432’s appeal lies in its ability to harmonize conflicting performance metrics. It achieves outstanding isolation and low insertion loss simultaneously, a feat that is notoriously difficult in high-frequency components. The combiner’s architecture mitigates signal leakage and interference, ensuring that the combined signals remain coherent and strong. The use of a lightweight aluminum alloy 6061 housing with conductive oxidation provides a dual benefit: it dramatically reduces the component’s weight for easier installation, while also offering robust electromagnetic interference (EMI) shielding. This housing ensures that the sensitive internal waveguide structures are protected from both physical impact and external electromagnetic noise, maintaining signal purity in the most challenging environments.nn
Mastering Multi-Channel Signal Combining
nnOne of the most striking features of this model is its capacity. With 16 input ports, the MOPPD9-9.5G16S-6432 variant is tailored for systems that require the aggregation of signals from multiple sources. This multi-channel capability is crucial for modern phased-array radar and MIMO (Multiple-Input, Multiple-Output) antenna systems used in 5G base stations. By combining 16 separate signal paths with exceptional coupling accuracy of 50dB±2dB and flatness within 1dB, the combiner ensures that every channel contributes equally and predictably, eliminating signal imbalance and phase distortion that can cripple system performance.nn
Performance Specifications: A Deeper Dive
nnTo understand the full capability of this component, it is essential to examine its technical parameters. The following table outlines the critical performance metrics that define the MOPPD9-9.5G-432’s operational excellence.nn
Detailed Technical Specifications
nn
| Parameter | Specification Requirement |
|---|---|
| Working Frequency | 9 ~ 9.5 GHz |
| Insertion Loss (including 12dB inherent) | ≤ 13 dB |
| Combiner VSWR | ≤ 1.5 |
| Input Port VSWR | ≤ 1.4 |
| Main Path Phase Consistency | ≤ ±8° |
| Channel Reverse Isolation | ≥ 20 dB |
| Coupling Degree | 50 dB ± 2 dB |
| Coupling Flatness | ≤ 1 dB |
| Coupling Directionality | ≥ 18 dB |
| Main Path Through Power (Average) | ≥ 600 W |
| Main Path Through Power (Peak) | ≥ 2000 W |
| Isolator Pass Power (Average) | 240 W |
| Isolator Pass Power (Peak) | 1200 W |
| Isolator Reflected Power (Average) | 100 W |
| Isolator Reflected Power (Peak) | 800 W |
| Operating Temperature | -55°C ~ +85°C |
| Connector Type (Input) | 16 × BJ100 Flat Waveguide Port |
| Connector Type (Combiner End) | BJ100 |
| Connector Type (Coupling) | 10 × SMA-K |
| Material & Appearance | Aluminum 6061, Natural Color Conductive Oxidation |
nn
Applications in Critical Systems
nnThe MOPPD9-9.5G-432 is not just a theoretical marvel; its specifications translate directly into real-world advantages across several demanding fields.nn
Radar and Electronic Warfare
nnIn radar systems, the ability to precisely combine signals from multiple transmitters or receivers is essential for achieving high-resolution target detection and tracking. The waveguide combiner’s excellent phase consistency (≤±8°) ensures that the combined signal maintains coherent gain, while its high isolation prevents desensitization of sensitive receivers. In electronic warfare, where signal environments are chaotic and adversarial, the combiner’s high directivity (≥18 dB) provides superior signal separation, allowing for effective jamming or interception.nn
5G Base Stations and Advanced Communications
nnFor 5G and next-generation communication base stations, the combiner enables efficient merging of multi-band and multi-channel signals. Its ability to handle substantial average (600W) and peak (2000W) power is critical for high-density urban deployments. The integrated isolator adds a layer of protection, safeguarding the transmitter from potentially damaging reflected power, thereby enhancing overall system longevity and reducing maintenance costs. The component’s wide operating temperature range ensures reliable performance in harsh outdoor environments, from the heat of a rooftop in summer to the freezing cold of a mountaintop installation.nn
Conclusion
nnThe MOPPD9-9.5G-432 waveguide combiner stands as a testament to advanced microwave engineering. By successfully balancing low loss, high isolation, precise coupling, and formidable power handling in a rugged, lightweight package, it provides a reliable backbone for systems where performance is non-negotiable. As the wireless landscape continues to evolve towards higher frequencies and greater complexity, components like this waveguide combiner will remain indispensable. From ensuring the clarity of a battlefield radar to maintaining the speed of a 5G data stream, the MOPPD9-9.5G-432 delivers the signal integrity and durability that modern high-reliability systems demand.
