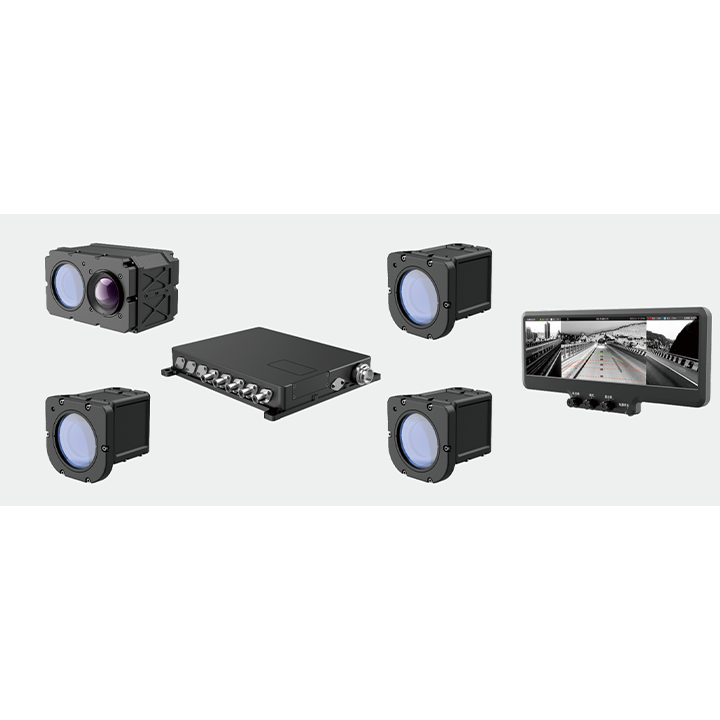

China Moneypro ASIV 6199 ADS SERIES IN-VEHICLE ASSISTED DRIVING SYSTEMS

The main purpose and function of the ADS series vehicle-mounted assisted driving system is to provide drivers with near-infrared image imaging, thermal imaging, and other auxiliary functions in all-weather environments, enabling the safe and rapid driving of ground vehicles of current air defense and anti-missile equipment in all-weather conditions. The driver can clearly observe the road conditions and surrounding conditions in front of and behind the vehicle, identify transverse ditches on the road surface, ditches beside the road, puddles, soil pits, and undulating terrain, and detect people and equipment around the vehicle.

Categories: ,
Description

Features

  • All-weather use, featuring a fusion design of thermal imaging and near-infrared, combining the advantages of clear image details in low-light near-infrared and clear image contours in infrared thermal imaging.
  • The image acquisition range includes the front view unit, rear view unit, left and right side view units.
  • The front and rear views are equipped with driving navigation bar functions, showing distance changes between the vehicle and obstacles in real time.
  • High-performance large-area array uncooled focal plane infrared detector, 1280×1024 resolution, 12μm pixel pitch.
  • Large-pixel, high-resolution low-light near-infrared CMOS sensors with high sensitivity, wide dynamic range, and capability in lux ≤10-3 environments.
  • Equipped with high-capacity SD card for image/video recording and storage.
  • Wide field of vision enhances the driver’s ability to perceive and distinguish obstacles.
  • Fusion of infrared and visible imaging provides real-time road condition awareness.
  • Thermal-free optical system ensures clear imaging across the entire temperature range.
  • Automatic obstacle detection function with visual and audio warnings.

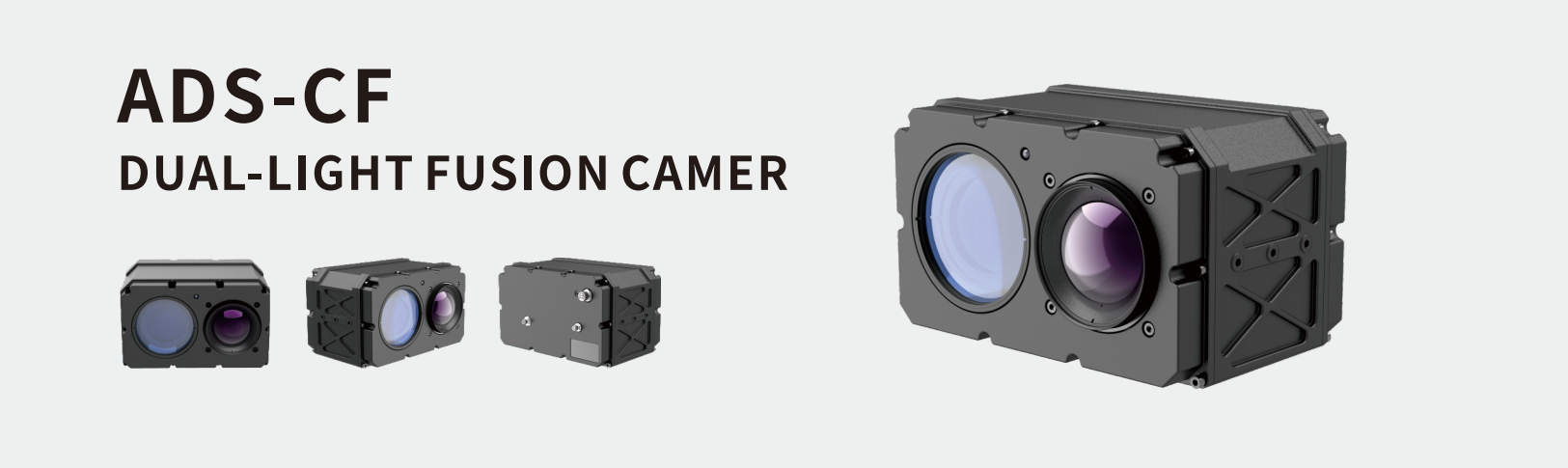

ADS-CF (Dual-Light Fusion Camera)

Parameters:

  • Detector Type: Uncooled focal plane vanadium oxide
  • Resolution: 1280×1024
  • Pixel size: 12μm
  • FOV Angle: ≥69.4°×57.5°
  • Operating Distance (people): ≥500m

Visible Light Camera:

  • Detector Type: Low-light CMOS image sensor
  • Resolution: 1920×1080
  • Pixel size: 12μm
  • FOV Angle: ≥93.5°(H)×55.9°(V)
  • Operating Distance (people): ≥350m

China Moneypro ASIV 6199 ADS SERIES IN-VEHICLE ASSISTED DRIVING SYSTEMS

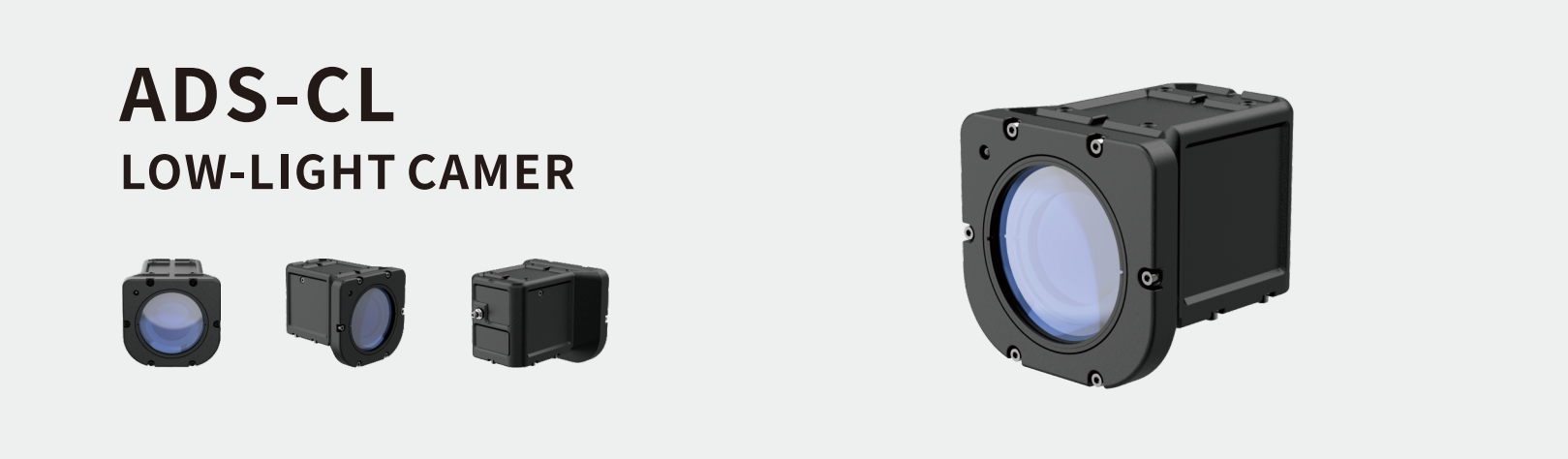

ADS-CL (Low-Light Camera)

Parameters:

  • Detector Type: Low-light CMOS image sensor
  • Resolution: 1920×1080
  • Pixel size: 12μm
  • FOV Angle: ≥93.5°(H)×55.9°(V)
  • Operating Distance (people): ≥350m

China Moneypro ASIV 6199 ADS SERIES IN-VEHICLE ASSISTED DRIVING SYSTEMS

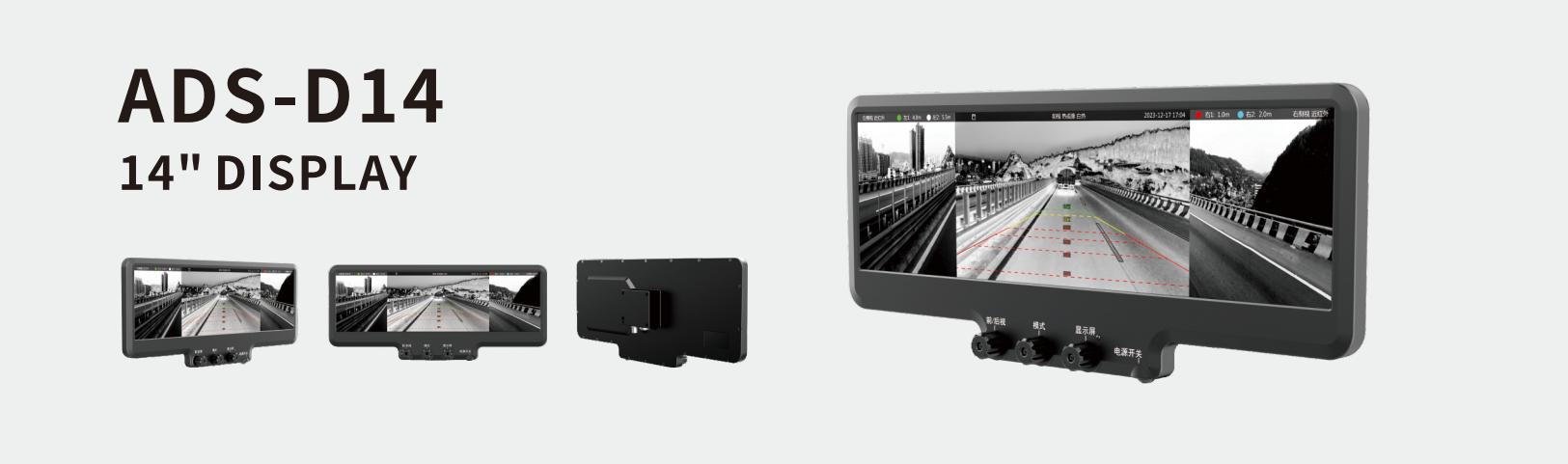

ADS-D14 (14″ Display)

Parameters:

  • Display Size: 14 inch
  • Display Resolution: 3840×1100
  • Video Input Interface: HDMI
  • Operation Temperature: -20℃～+60℃
  • Image Adjustment: Adjustable contrast and brightness

China Moneypro ASIV 6199 ADS SERIES IN-VEHICLE ASSISTED DRIVING SYSTEMS

ADS-AI8 (AI Image Processor)

Parameters:

  • Maximum Video Channel: 8 channels
  • Video Input Interface: HSMT
  • Video Output Interface: HDMI
  • Communication Interface: RS232, USB, CAN
  • Automatic recognition and ranging of people and vehicles
  • Built-in SD card: Nominal 64GB
  • Power Input: DC10V～36V
  • Operation Temperature: -40℃～+60℃

FAQs

Q1: What environments can the ADS system operate in?
A1: The ADS system is designed for all-weather use, including fog, haze, rain, snow, and sandstorms, both day and night.

Q2: What is the maximum detection distance of the ADS-CF dual-light fusion camera?
A2: It can detect people at a distance of ≥500m (infrared) and ≥350m (visible light).

Q3: Does the ADS system support real-time video recording?
A3: Yes, it comes with a high-capacity SD card that can record and store videos and images in real time.

Q4: Can the system provide distance measurement to obstacles?
A4: Yes, the ADS system displays changes in distance between the vehicle and obstacles, automatically alerting the driver.

Q5: How many video channels does the AI image processor (ADS-AI8) support?
A5: It supports up to 8 video channels, with automatic recognition and ranging of people and vehicles.
