Unleashing the Power: The China Moneypro MOPGF30 4-Stroke Gasoline Engine
In the world of RC aviation, power and precision go hand in hand. China Moneypro has established itself as a leader in high-quality gasoline engines, and it holds the distinction of being the first factory in China to independently develop and produce 4-stroke RC gasoline engines. The MOPGF30 is a shining example of this expertise, a professional-grade engine crafted for model enthusiasts who demand the best. This engine offers a remarkable blend of high performance, low fuel consumption, large torque, and low noise, all within a compact and aesthetically pleasing structure. Whether you’re a seasoned pilot or an ambitious builder, the MOPGF30 delivers the reliability and power needed for an exceptional flying experience.
MOPGF30 Specifications and Detailed Parameters
To understand the engineering behind the MOPGF30, it’s essential to examine its precise specifications. The engine is designed to fit the installation size of a 120-180 glow 4-stroke engine, yet it delivers power comparable to that class, making it an ideal upgrade. This power is perfect for RC aircraft with takeoff weights between 6-10kg, establishing it as the optimal power configuration for 120-180 level models. Below is a comprehensive breakdown of the technical details.
| Parameter | Value |
|---|---|
| Displacement | 29.91cc |
| Bore | 36mm |
| Stroke | 29.4mm |
| Practical Speed Range | 1600-8500 rpm |
| Output Power | 3.16 HP / 9000 rpm |
| Tensile Force | 6.6 kg |
| Engine Weight | 1160 g |
| Muffler Weight | 100 g |
| Igniter Weight | 100 g |
| Ignition Power | DC 6V – 14.4V 1000mAh |
| Spark Plug | CM6 |
| Recommended Propeller | 15×10, 16×8-10, 17×6-10 (Two-blades) |
| Fuel | 92# unleaded petrol + fully synthetic 2T lubricants |
| Lubrication Ratio | Gasoline : Lubricant = 35:1 |
Advanced Design and Construction Features
Engine Mount and Muffler System

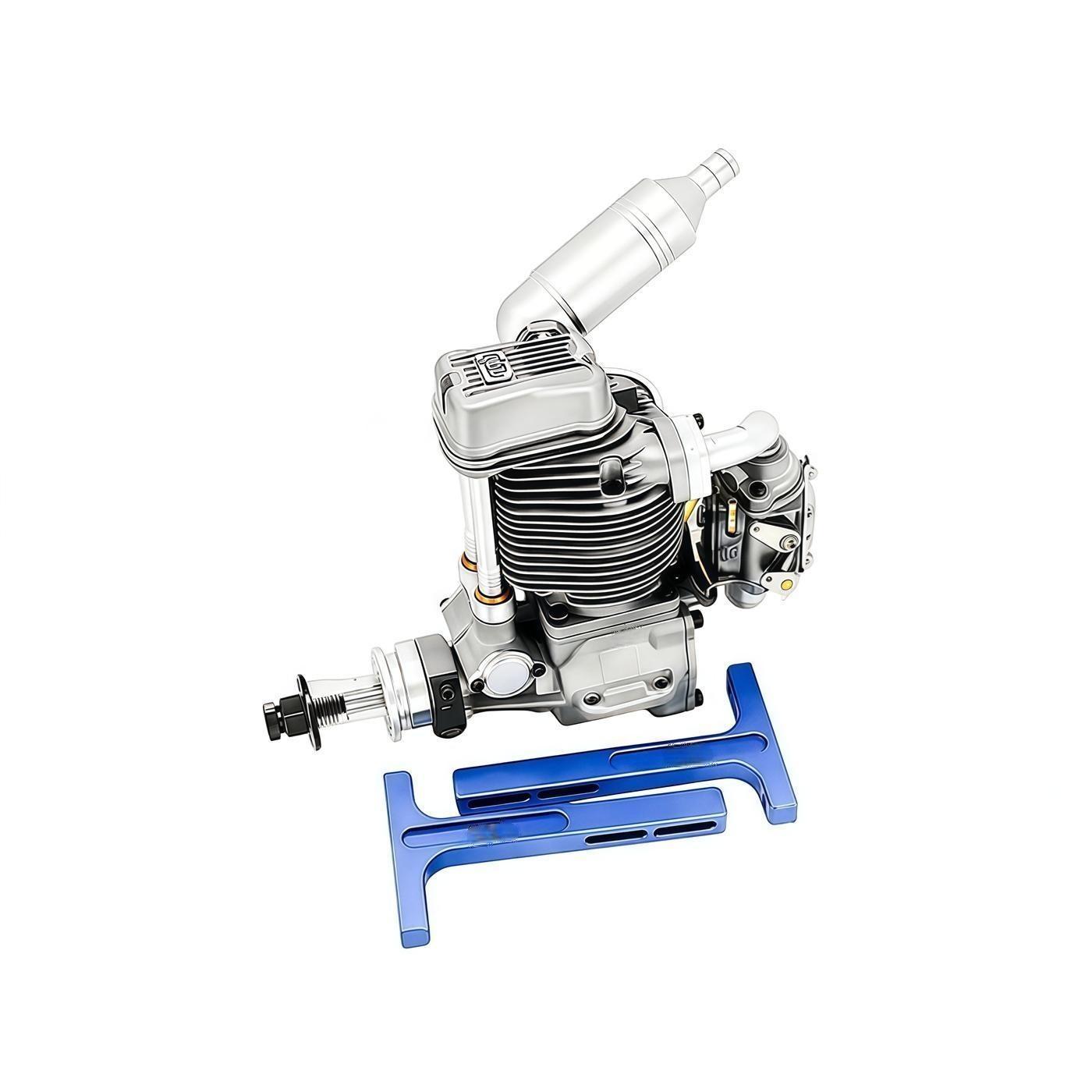

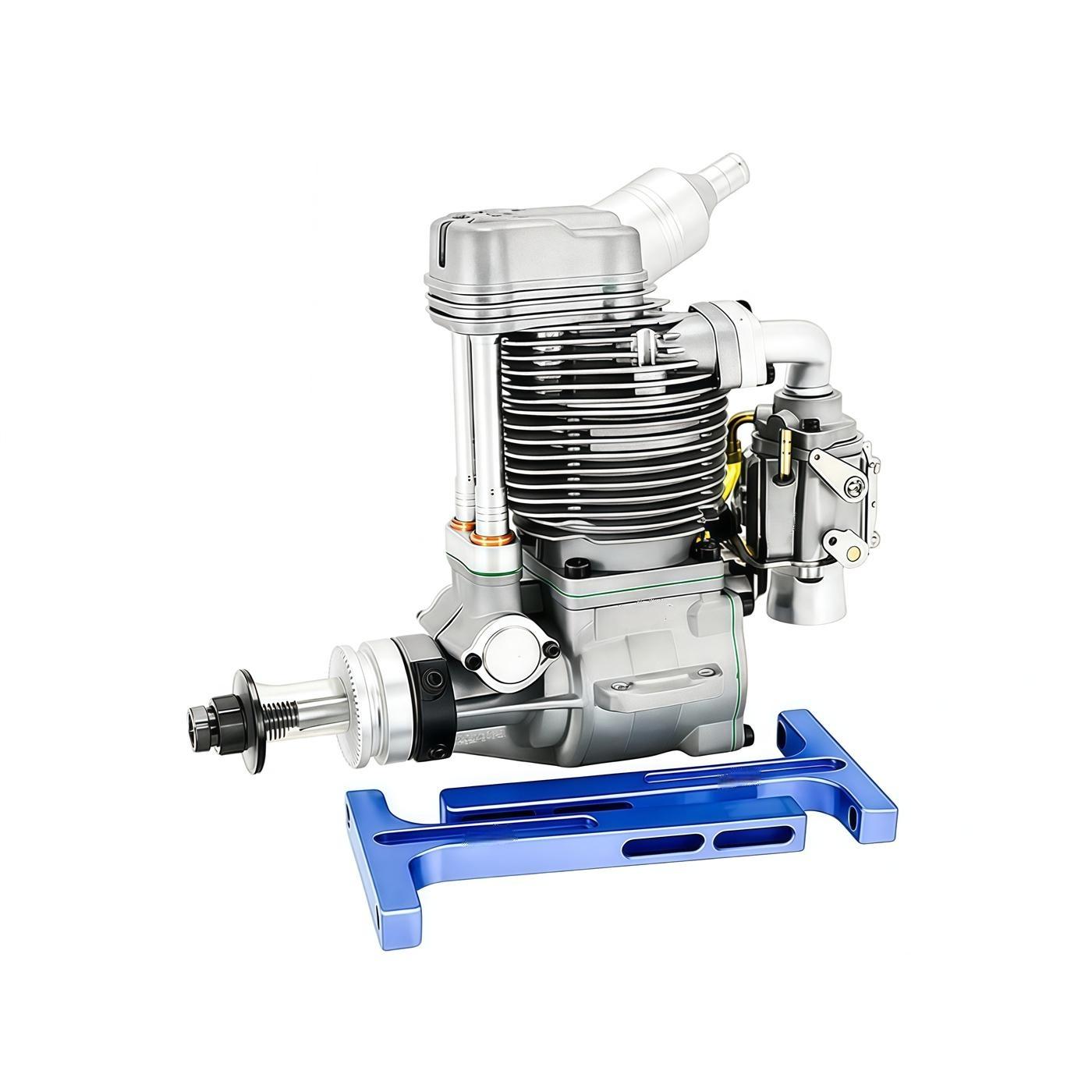

The MOPGF30 is equipped with a CNC carved and anodized adjustable-length T-type engine mount. This design ensures a more stable installation, significantly reducing vibration during operation. The universal exhaust muffler, specifically designed by China Moneypro, delivers a smoother, deeper exhaust note, making the power feel more surging and refined. This combination enhances the overall flight experience by minimizing noise and mechanical stress.
Lubrication and Piston System
A key innovation in this engine is the unique separation lubrication circulation system. This design ensures that every moving part receives optimal lubrication, improving longevity and performance. The connecting rod features a needle bearing that better lubricates the hinge pin, reducing friction and wear. Furthermore, the engine employs a unique double piston ring system: one lubricating ring and one sealing ring. This dual approach enhances both sealing and lubrication, leading to more consistent power output and reduced operational issues.
Cylinder and Durability
The cylinder liner is crafted from wear-resistant nodular cast iron, a material choice that offers exceptional durability. The tolerance of the bore in the cylinder is maintained within 0.01mm, which is significantly higher precision than the 0.03mm roundness tolerance typically found in aluminum alloy chrome-plated cylinder liners. This precision not only improves performance but also ensures the engine meets strict environmental standards, as aluminum alloy chrome-plated liners often violate EU environmental regulations. The result is a robust engine built to last.
Key Features and Included Components
The MOPGF30 comes packed with premium components designed for reliability and ease of use. Each part is carefully chosen to enhance the overall performance of the engine. Here is a list of the standout features:
- China Moneypro Directional Exhaust Muffler: Provides a low and powerful voice, enhancing the aircraft’s presence.
- Walbro Carburetor: Known for its reliable running and convenient installation, ensuring consistent fuel delivery.
- CNC Carved and Adjustable T-Shaped Engine Mount: Offers a stable and vibration-resistant base.
- CNC Carved Double Needle Roller Bearing Connecting Rod: Reduces friction and increases the life of the internal components.
- Double Nut Locking Output Shaft: Ensures the propeller stays secure during high-power maneuvers.
- RCEXL Ignition with Automatic Advancing System: Specifically made for China Moneypro, this system optimizes ignition timing for better performance and efficiency.
- RCEXL Spark Plug CM6: A high-quality spark plug for reliable starting and combustion.
- High-Quality Bearings: Components designed for smooth operation and extended service life.
Optimal Performance and Practical Setup
Setting up the MOPGF30 correctly is key to maximizing its potential. The rear carburetor design facilitates easy adjustment of the air-fuel mixture, making tuning straightforward. With its power output of 3.16 HP and a tensile force of 6.6 kg, this engine is perfectly matched for 6-10kg aircraft. The recommended propellers, such as the 16×8-10 or 17×6-10, allow pilots to fine-tune their setup for either thrust or speed. Using the specified fuel mixture of 92# unleaded petrol with a 35:1 lubrication ratio ensures peak performance and engine health.
Conclusion: Elevate Your RC Aircraft with the China Moneypro MOPGF30
In summary, the China Moneypro MOPGF30 stands out as a superior choice for RC enthusiasts seeking a powerful, efficient, and reliable 4-stroke gasoline engine. Its advanced engineering, including the precision nodular cast iron cylinder liner, unique double piston ring system, and integrated CNC components, sets a new standard in the 120-180 class. The MOPGF30 delivers not just high performance and low fuel consumption, but also the durability and environmental compliance that modern hobbyists require. Whether you are upgrading an existing model or building a new one, the MOPGF30 from China Moneypro offers the power and refinement to take your flying experience to new heights.
