Unleashing Exceptional Power: The China Moneypro MOPGTT130-G Engine

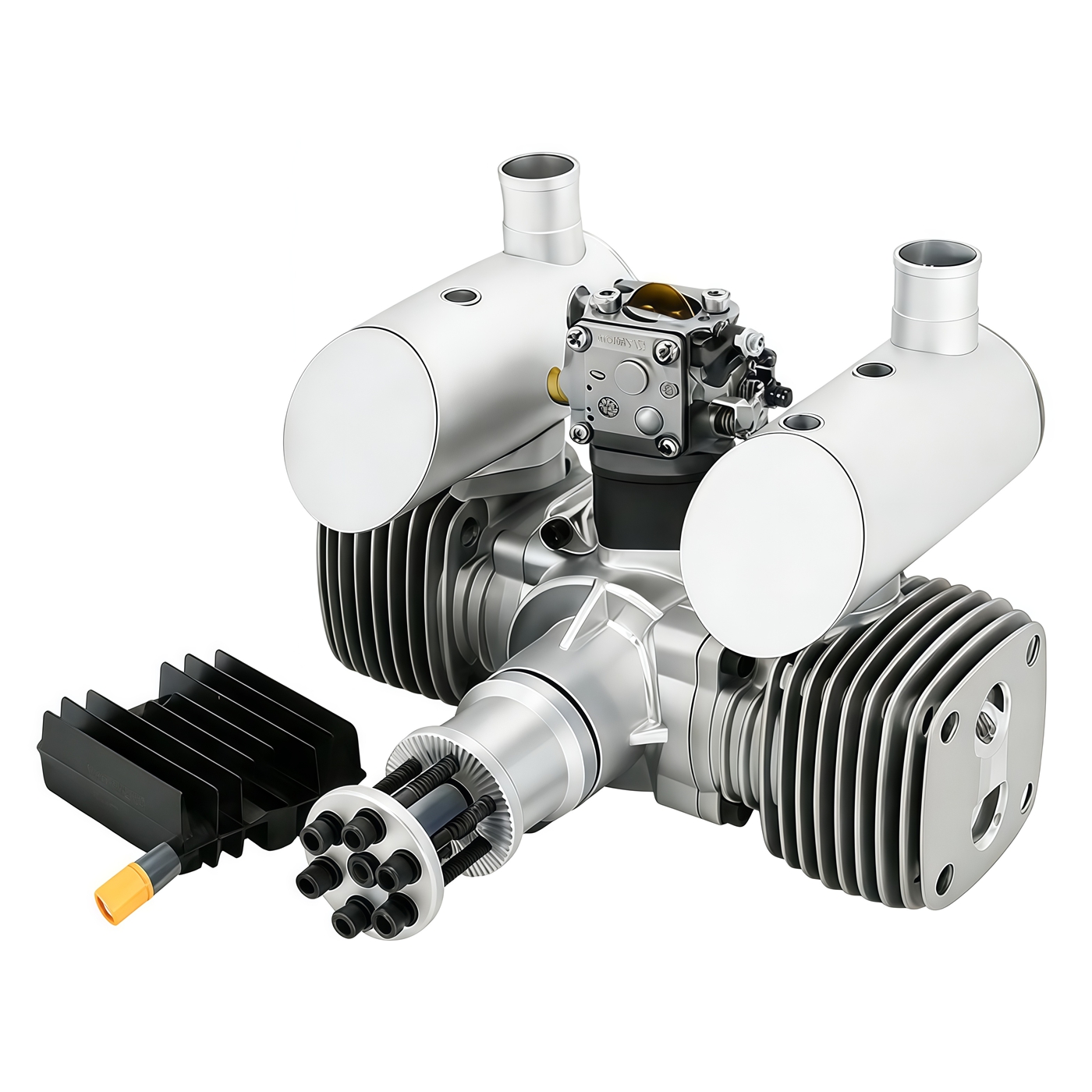

For RC enthusiasts who demand nothing short of excellence, the China Moneypro name has become synonymous with high-performance gasoline engines. The MOPGTT130-G represents a pinnacle of engineering, offering a professional-grade two-stroke gasoline engine that combines compact structure, aesthetic appeal, stable performance, and abundant power. Designed specifically for the discerning hobbyist, this horizontally opposed twin-cylinder engine is derived from the proven GT65 platform, ensuring reliability and cutting-edge technology in every component.
Engineering Excellence and Design Philosophy
The MOPGTT130-G is not merely an engine; it is a statement of precision and durability. At its core, it features a precision forged connecting rod with needle roller bearings, supported by four high-quality deep groove ball bearings on the crankshaft. The cylinder liner benefits from a Ni-SiC coating, maintaining a roundness tolerance within an astonishing 0.01mm. This level of manufacturing accuracy translates to smoother operation, reduced friction, and extended engine life. The engine comes standard with two integrally welded cylindrical exhaust pipes that effectively reduce noise while enhancing performance—a feature that has earned widespread praise from the RC community.
Key Features and Innovations
Every aspect of the MOPGTT130-G is designed for optimal performance. The integrated welded single exit exhaust muffler not only improves sound quality but also reduces noise levels significantly. The front-mounted Walbro carburetor ensures reliable operation and simple debugging, making it accessible for both experts and newcomers. A CNC carved radial engine mount provides stable installation with minimal vibration, while the double nut locking output shaft adds an extra layer of security during high-speed runs. The engine is paired with an RCEXL automatic timing synchronization ignition system, specially customized for China Moneypro, which ensures precise spark timing and dual-cylinder synchronization.
MOPGTT130-G Specifications and Technical Data
| Parameter | Value |
|---|---|
| Engine Type | Horizontally-Opposed Twin-Cylinder 2-Stroke |
| Displacement | 65cc x 2 (Total 130cc) |
| Bore | 48mm |
| Stroke | 36mm |
| Practical Speed Range | 1200-8500 rpm |
| Output Power | 13.1 HP @ 8300 rpm |
| Engine Weight | 2900g |
| Ignition Weight | 160g |
| Ignition Power | DC 6V – 14.4V, 1000mAh |
| Recommended Propeller (Two-Blade) | 27×10-12, 28×10, 29×9 |
| Fuel Type | 92# Unleaded Petrol + Fully Synthetic 2T Lubricants |
| Lubrication Ratio | Gasoline : Lubricant = 40:1 |
| Ignition System | RCEXL Automatic Timing Synchronization (Customized for China Moneypro) |
| Spark Plug | RCEXL CM6 |
Performance and Operational Highlights
The MOPGTT130-G delivers a robust output of 13.1 horsepower at 8300 rpm, with a practical speed range spanning from 1200 to 8500 rpm. This versatility makes it suitable for a wide range of RC applications, from scale models to aggressive aerobatic aircraft. The double-cylinder synchronous ignition system ensures smooth and consistent power delivery, eliminating the typical imbalances found in lesser engines. With recommended propellers ranging from 27×10 to 29×9 inches (two-blade), users can fine-tune their setup for either speed or torque, depending on their specific needs.
Fuel and Maintenance Considerations
To maintain peak performance, the MOPGTT130-G requires a fuel mixture of 92# unleaded petrol combined with fully synthetic 2T lubricants at a 40:1 ratio. This precise lubrication ratio protects internal components while ensuring clean combustion. The high-quality bearings and Ni-SiC cylinder treatment further reduce wear, simplifying long-term maintenance. The inclusion of an RCEXL ignition system with automatic timing adjustment means users spend less time tuning and more time flying.
Conclusion: A Benchmark in RC Gasoline Engines
In summary, the China Moneypro MOPGTT130-G stands as a testament to what modern engineering can achieve for RC enthusiasts. With its unparalleled build quality, advanced ignition technology, and thoughtful design elements like the integrated exhaust muffler and radial mount, this engine delivers both power and reliability. Whether you are upgrading your current setup or building a new project from scratch, the MOPGTT130-G offers the performance, durability, and sophistication that serious hobbyists demand. Invest in this masterpiece and experience the difference that professional-grade engineering makes in every flight. The MOPGTT130-G is more than an engine—it is the heart of your RC aircraft, beating with precision and strength.
