Key Features
- One-click calibration, automatic tracking, target matching, and automatic firing.
- Multispectral imaging (IR + Visible Light) ensures performance across varying environments.
- Capable of detecting and identifying single-person targets at distances up to 1200 meters.
- Integrated electronic compass and BeiDou module for real-time azimuth calculation.
- Automatically collects or manually inputs environmental variables to enhance firing accuracy.
- Magnesium alloy shell with IP67 protection, adaptable to complex environments.
- Intuitive single-scrollwheel design for effortless control without memorization.
- Withstands 1500g/0.3ms strong impacts and operates in extreme environments (cold/hot, plateaus, rainforests, jungles).
- Features directional guidance indicators, photo/video capture, and stores 10,000 images or 12 hrs of video.
- Supports Wi-Fi image transmission and remote command control.
- Intelligently adjusts reticle to enhance first-round hit probability.
- Integrated multi-range and mil-dot reticles for optimized shooting accuracy.
- Adaptable to multiple weapon platforms for tactical flexibility.
- Automatically identifies typical targets to enhance combat efficiency.
Parameters
Imaging Parameters
- Resolution: 640×512
- Pixel Pitch: 12µm
- Visible Light Sensor: 2 MP
- Frame Rate: 50Hz
- OLED: 1280×1024
Physical Characteristic
- Weight: ≤1050g
- Dimensions: 300mm × 120mm × 150mm
Interface
- Electrical: Type-C/RS232/PAL
- Mechanical: Standard Picatinny rail
Environmental Requirements
- Protection: IP67
- Operating Temperature: -40℃ ~ +55℃
- Reliability: 1500G/0.3ms
Laser Module
- Wavelength: 1535nm Eye-Safe
- Measurement Range: 1.5km (Personnel), 4km (Vehicle)
- Accuracy: ±1m
- Accuracy Rate: 99%
- Ranging Frequency: 1Hz
Optical Parameters
- IR Focal Length: 70mm F1.0
- IR FOV: 6.2° × 5.0°
- Visible Light Focal Length: 55mm F7
- Visible Light FOV: 3.85° × 3.05°
- Diopter Adjustment: -5D ~ +2D
- Exit Pupil Distance: ≥45mm
Power Supply
- Battery: 2*18650
- Operating Time: 6h
Functional Parameters

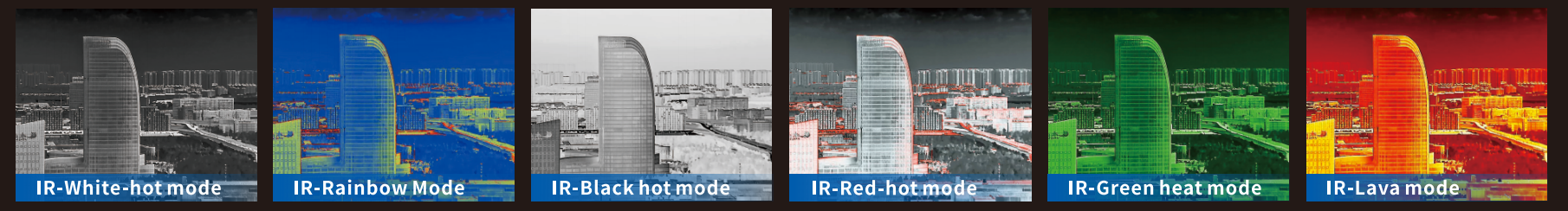

- Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
- Digital Zoom: 1-4x
- BeiDou: ≤10m (CEP)
- Digital Compass: Azimuth, Pitch, Roll
- Memory: 128G
- Intelligent Target Recognition: Personnel, vehicles, drones, etc.
- Reticle: Multiple range and mil-dot reticles
- Custom Reticle: Supports offline customization and upgrade
- Defogging: Yes
- Picture-in-Picture: Yes
- Firing Data Loading: Support
- One-Click Zeroing: Yes
- Ballistic Calculation: Yes
- Wi-Fi: Yes
Effective Range
- Visible Light Recognition: 1.2km (Personnel), 2.4km (Vehicle)
- Visible Light Detection: 3km (Personnel), 6km (Vehicle)
- IR Recognition: 1.3km (Personnel), 2.6km (Vehicle)
- IR Detection: 3.25km (Personnel), 6.5km (Vehicle)
FAQ
Q1: What makes the China Moneypro MPS670-AI different from standard thermal sights?
A1: China Moneypro MPS670-AI integrates dual-band imaging (IR + visible light), AI-driven automatic firing, and BeiDou navigation, providing unmatched precision and automation compared to conventional systems.
Q2: How accurate is the laser rangefinder under extreme conditions?
A2: The integrated 1535nm eye-safe laser delivers up to 99% accuracy with ±1m precision, even in harsh environments like rain, smoke, or dust.
Q3: Can China Moneypro MPS670-AI sustain operations in high-vibration or shock-prone scenarios?
A3: Yes. With a durability rating of 1500G/0.3ms and IP67 protection, it withstands extreme vibrations, impacts, and environments ranging from jungles to high-altitude plateaus.
Q4: How long can the device operate continuously in the field?
A4: Powered by dual 18650 batteries, China Moneypro MPS670-AI provides up to 6 hours of continuous operation, with hot-swappable battery support for extended missions.
Q5: Is the automatic firing function customizable for different mission profiles?
A5: Yes. Users can manually set environmental parameters or allow the AI to calculate firing solutions automatically, making it suitable for precision missions and rapid-response engagements.
