Key Features
- Automatic ballistic calculationand distance measurement in real-time via integrated laser rangefinder.
- Equipped with a 3rd-generation 12μm/640×512 (50Hz) IR detectorfor smooth, high-resolution imaging.
- Detection and recognition range up to 1200 meters (personnel).
- Magnesium alloy housing with IP67 protection, suitable for extreme environments including cold, heat, plateau, jungle, and rainforests.
- Single-scroll wheel intuitive controlfor quick operation without memorization.
- Withstands 1500g / 0.3ms strong impacts.
- Continuous operation up to 12 hourswith dual 18650 batteries.
- Wi-Fi transmissionfor real-time image sharing and remote control.
- Photo & video capture, storing up to 10,000 images or 12 hours of video.
- Intelligent target recognition for personnel, vehicles, drones, and more.
- Multi-reticle system with multi-range and mil-dot reticlesfor optimized accuracy.
- Modular design for fast deployment and field adaptability.
Technical Parameters
IR Parameters
- Resolution: 640×512
- Pixel Pitch: 12μm
- Frame Rate: 50Hz
- OLED: 1024×768
Power Supply
- Battery: 2× 18650
- Operating Time: 12h
Physical Characteristics
- Weight: ≤1050g
- Dimensions: ≤300mm × 120mm × 150mm
Interface
- Electrical: Type-C / RS232 / PAL
- Mechanical: Standard Picatinny rail
Optical Parameters
- Focal Length: 70mm F1.0
- FOV: 6.2° × 5.0°
- Diopter Adjustment: -4D ~ +2D
- Exit Pupil Distance: ≥45mm
Environmental Requirements
- Protection: IP67
- Operating Temperature: -40°C ~ +55°C
- Reliability: 1500g / 0.3ms
Functional Parameters

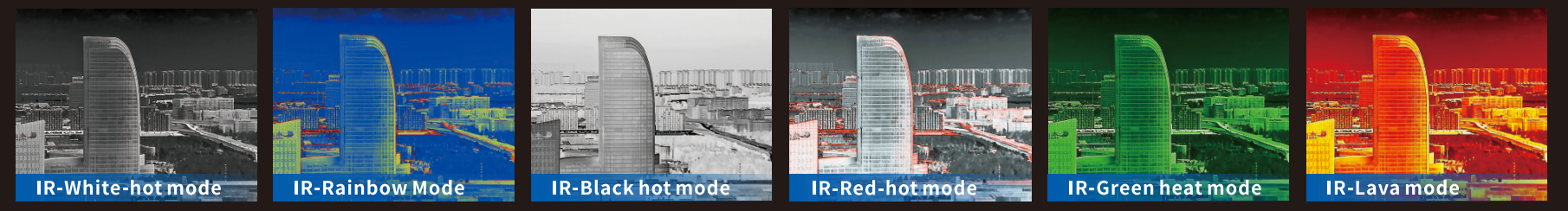

- Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
- Digital Zoom: 1–4x
- Digital Compass: Azimuth, Pitch, Roll Angle
- Memory: 128GB
- Intelligent Target Recognition: Personnel, Vehicles, Drones, etc.
- Reticle: Multi-range & Mil-dot
- Custom Reticle: Supports offline customization & upgrade
- Picture-in-Picture: Yes
- Probabilistic Ranging: Yes
- One-Click Zeroing: Yes
- Ballistic Calculation: Yes
- Wi-Fi Transmission: Yes
Laser Module
- Wavelength: 905nm
- Measurement Range: 1.2km (Personnel)
- Accuracy: ±2m
- Accuracy Rate: 98%
- Ranging Frequency: 1Hz
Effective Range
- Personnel Recognition: 1.2 km
- Personnel Detection: 3.0 km
- Vehicle Recognition: 2.4 km
- Vehicle Detection: 6.0 km
FAQs
Q1: What is the maximum recognition and detection range of the China Moneypro MPS670?
A1: The China Moneypro MPS670 can recognize personnel at 1.2 km and vehicles at 2.4 km, with detection ranges of 3.0 km (personnel) and 6.0 km (vehicles).
Q2: How accurate is the laser ranging system under real combat conditions?
A2: The integrated laser module operates at 905nm wavelength, offering ±2m accuracy with a 98% accuracy rate, even in GNSS-denied environments.
Q3: Can the China Moneypro MPS670 operate continuously in extreme weather?
A3: Yes, its IP67 rating ensures operation from -40°C to +55°C, making it suitable for arctic cold, desert heat, and humid rainforest conditions.
Q4: How does the ballistic calculation module improve shooting accuracy?
A4: It automatically revises firing parameters in real time, ensuring precise trajectory prediction and greatly enhancing first-round hit probability.
Q5: What makes the China Moneypro MPS670 different from traditional thermal scopes?
A5: Unlike conventional models, the China Moneypro MPS670 integrates laser ranging, Wi-Fi transmission, and advanced ballistic calculation into a single unit, offering a true multi-functional battlefield solution.
