Key Features

• Equipped with 1024×768 @10μm rapid-cooling IR detector, achieving cooling time ≤2.5 minutes.
• Supports continuous optical zoomfor both infrared and visible light modules, providing flexible observation adjustment.

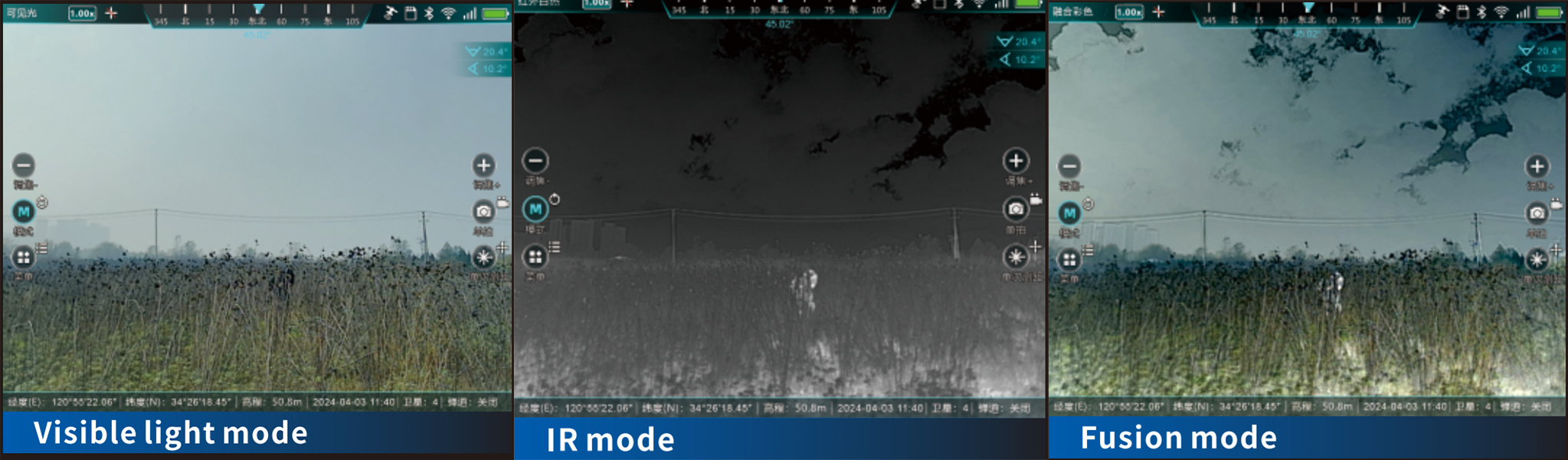

• Fusion mode with narrow field-of-view integration, delivering clear imaging and detailed rendering.
• Integrated with BD+GPS+GLONASS positioning, electronic compass, WiFi, and geolocation tracking.
• High-definition visible light sensor with fog penetrationfor complex environments.
• Rapid acquisition of local geographic coordinatesand azimuth data for accurate target identification.
• Battery undervoltage indicationand reverse polarity protection ensure safe operation.

Technical Parameters

IR Module

• Detector Type: Cooled IR FPA with HOT Technology 1024×768 @10μm
• FOV: 2.6°×2° ~ 8.2°×6.2°

Visible Light Module

• Detector Type: Color HD CMOS, 1/1.8”, 4MP
• FOV: 1.93°×1.54° ~ 8.84°×7.08°

Positioning & Orientation

• Mode: BD+GPS+GLONASS
• DMC Accuracy: ≤0.5°
• Self-Position Precision: CEP ≤5m, Pe ≤5m
• Target Locating Precision: CEP ≤30m (target at 3km)

Laser Designation

• Wavelength: 830nm / 660nm
• Range: >600m (Low), >2000m (High)

Laser Rangefinder

• Wavelength: 1.535μm (Eye-Safe)
• Range: 80m ~ 10000m
• Precision: ≤2m

Imaging

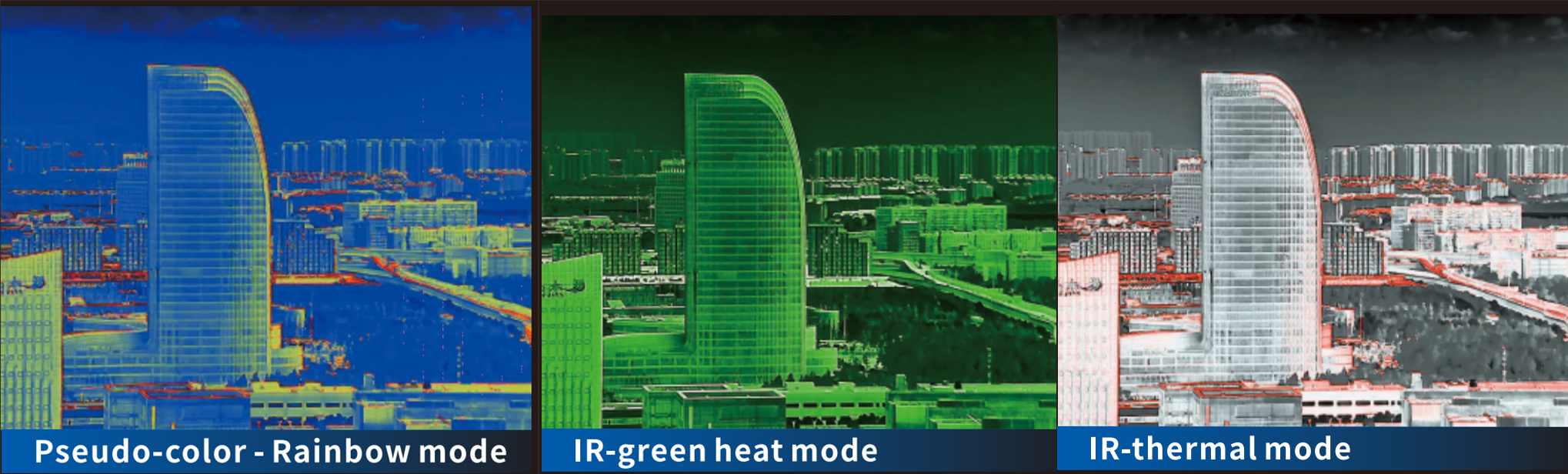

• Infrared: Supports brightness/contrast adjustment, white hot & black hot polarity switching
• Visible Light: Supports defogging, brightness, and contrast adjustment
• Magnification: 1.0×–4.0× continuous optical zoom & E-zoom

Other Specs

• Weight: ≤3kg (without battery)
• Operating Time: ≥6h
• Battery: 8 × Military 18650 Rechargeable Batteries
• Interface: USB / PAL / RS232 / HDMI / WiFi / Bluetooth
• Operating Temperature: -40℃ ~ +55℃
• Storage Temperature: -55℃ ~ +70℃
• Protection Level: IP67

Effective Range

• Visible Light:

• Personnel Recognition: 4km
• Vehicle Recognition: 8km
• Personnel Detection: 8km
• Vehicle Detection: 20km
  • Infrared:
• Personnel Recognition: 3.5km
• Vehicle Recognition: 7km
• Personnel Detection: 8.7km
• Vehicle Detection: 17.5km

FAQs

Q1: How fast does China Moneypro MY5221 reach operational readiness?
A1: The cooled IR detector achieves a cooling time of ≤2.5 minutes, ensuring rapid deployment in the field.

Q2: What’s the maximum detection range of China Moneypro MY5221?
A2: With its eye-safe 1.535μm laser rangefinder, the IR5221 can detect targets up to 10km with a precision of ≤2m.

Q3: Can it operate effectively in foggy or low-visibility environments?
A3: Yes, the visible light sensor features fog penetration and defogging functions, maintaining clear imaging in complex weather conditions.

Q4: Is the China Moneypro MY5221 suitable for long missions?
A4: Powered by 8 standard military 18650 batteries, it provides ≥6 hours of continuous operation, suitable for extended reconnaissance tasks.

Q5: How does the system enhance battlefield awareness?
A5: Through its fusion mode, GPS/GLONASS positioning, and WiFi real-time data transmission, it delivers multi-spectral target acquisition and tactical intelligence sharing in real time.
