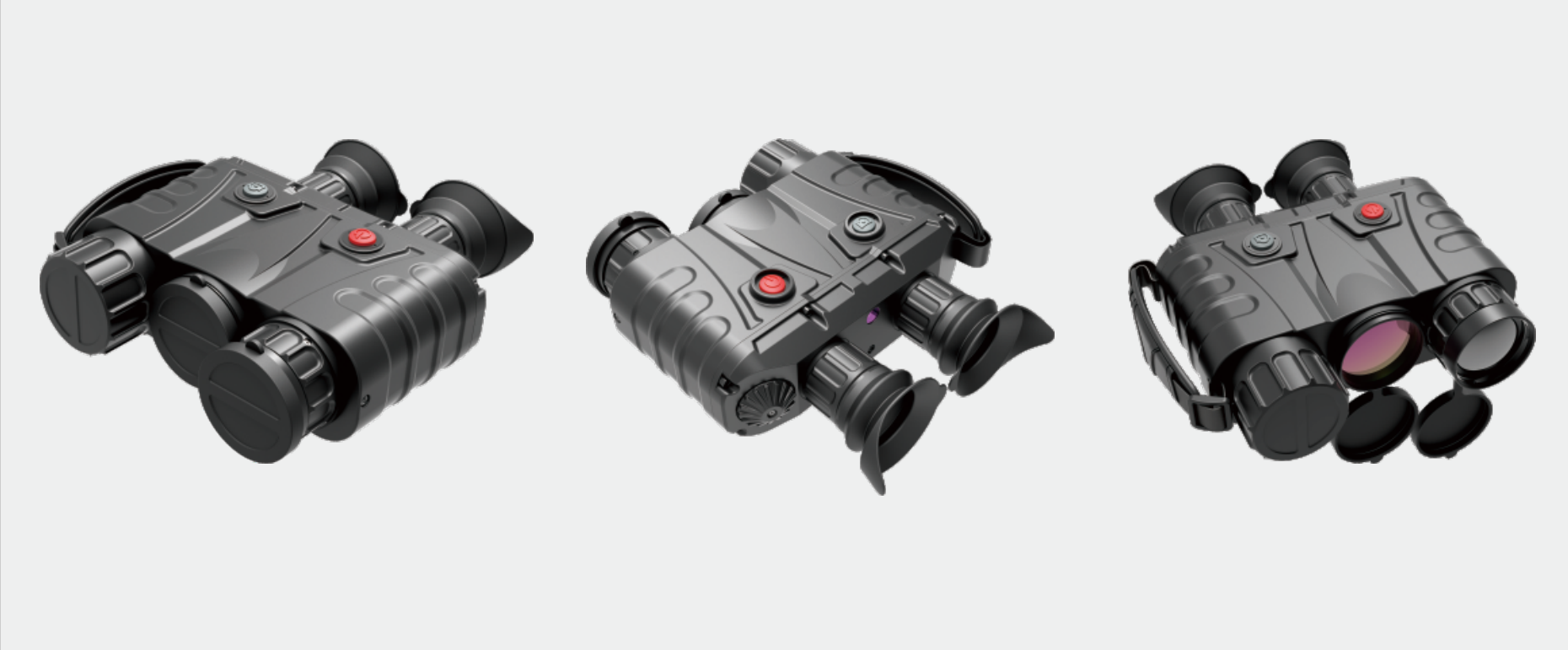

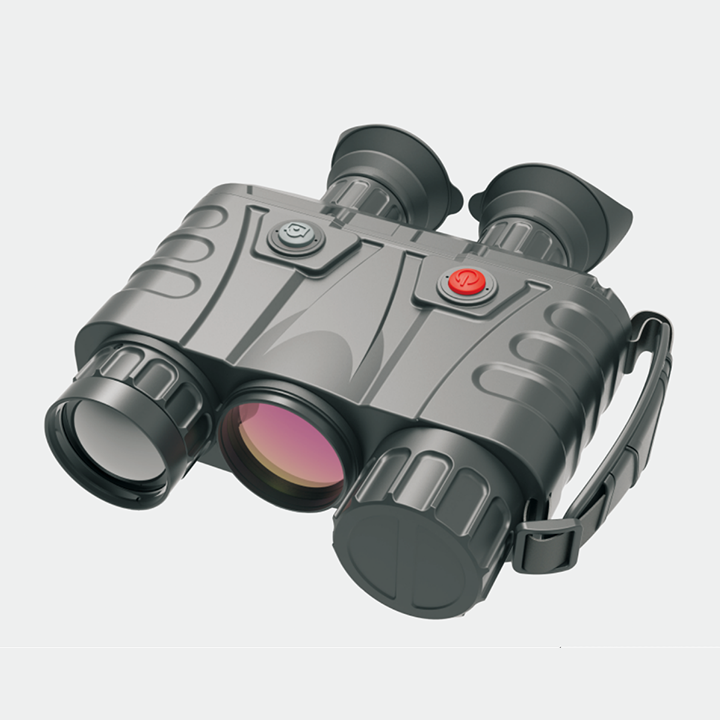

China Moneypro MY528B Fusion Binocular with Infrared and Low-Lux CMOS

China Moneypro MY528B Fusion Binocular is designed for individual handheld day/night battlefield observation, featuring camouflage detection capability and superior performance in diverse environments. This advanced binocular integrates multiple imaging modes for unmatched adaptability, including Low Light, IR Image, Black & White Fusion, and Color Fusion.

With cutting-edge infrared technology and low-lux CMOS sensor, it ensures precise observation and detection under challenging conditions such as darkness, low light, and camouflage. The dual-screen display and intelligent regulation system deliver enhanced clarity and operational efficiency for both professional and tactical applications.

Categories: ,
Description

Key Features

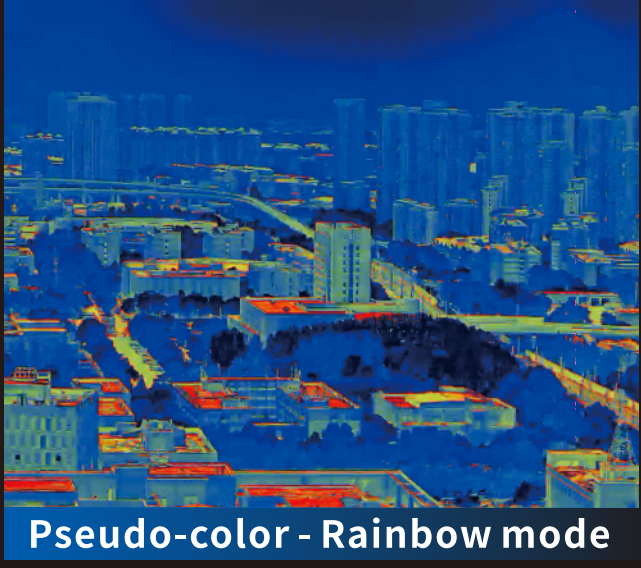

  • Supports four operation modes: Low light, IR image, Black & White Fusion, and Color Fusion.
  • High-definition displaywith large format imaging, supporting image and video recording playback, delete functions, and automatic backup for unexpected power failure.
  • Battery voltage indicatorand reverse battery protection for extended safety.
  • Adjustable focus, contrast, brightness, and quick polarity switch between white hot and black hot modes.
  • Video & data communication portensures high-quality and sensitivity images on OLED display or external monitor.



China Moneypro MY528B Fusion Binocular with Infrared and Low-Lux CMOS



Technical Parameters

Thermal Camera

  • Detector Type: Uncooled FPA
  • Resolution: 800 × 600
  • Wavelength: 17μm
  • FOV: 16° × 12°

Low-Light Camera

  • Resolution: 800 × 600
  • Wavelength: 18μm
  • FOV: 16° × 12°

Power

  • Battery: 4 × 18650 rechargeable batteries
  • Consumption: ≤5.5W
  • Operation Time: ≥6 hours (ambient temperature)

Built-in Storage

  • Stores ≥10,000 still images & ≥2 hours of video

Physical Characteristics

  • Weight: ≤1.2kg (including binocular, batteries, eye-cups, lens cap, wristband)

Environmental Adaptability

  • Operating Temperature: -40°C ~ +55°C
  • Storage Temperature: -55°C ~ +70°C

Accessories

  • Backup Batteries
  • Charger
  • Safety Case
  • USB Cable
  • Adapter
  • Tripod
  • Carrying Bag (optional)

Effective Range

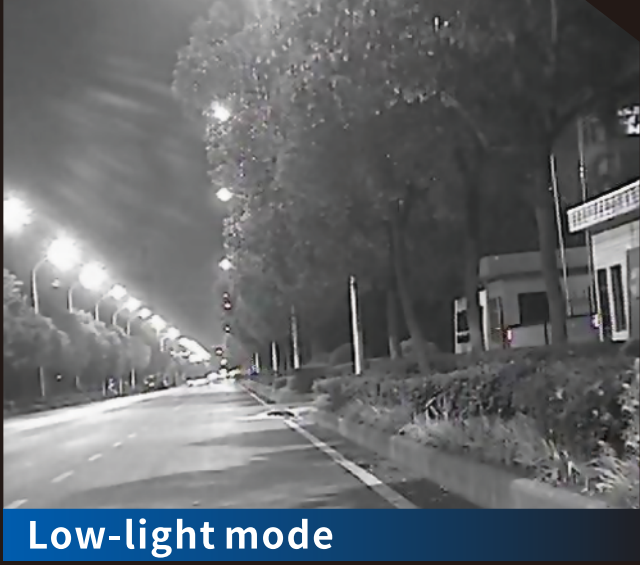

Low-Light Mode

  • Recognition: Personnel 0.2km | Vehicle 0.45km
  • Detection: Personnel 0.35km | Vehicle 0.7km

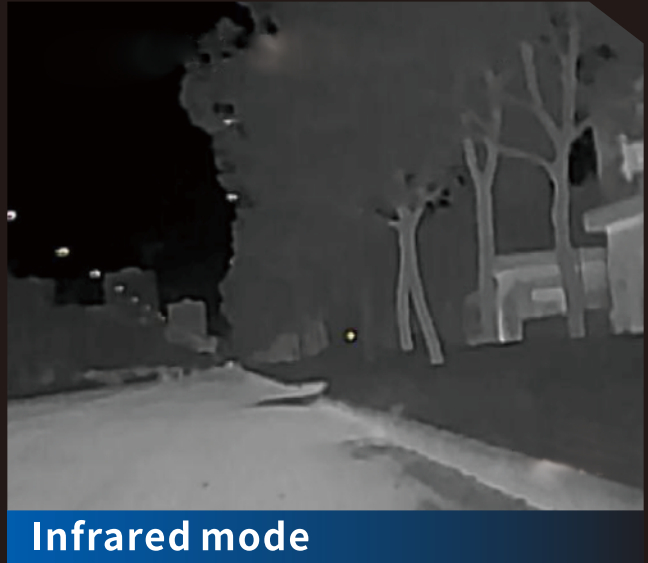

Infrared Mode (IR)

  • Recognition: Personnel 0.45km | Vehicle 0.9km
  • Detection: Personnel 0.9km | Vehicle 1.8km



China Moneypro MY528B Fusion Binocular with Infrared and Low-Lux CMOS China Moneypro MY528B Fusion Binocular with Infrared and Low-Lux CMOS China Moneypro MY528B Fusion Binocular with Infrared and Low-Lux CMOS





5 Professional FAQ

Q1: What makes China Moneypro MY528B unique compared to conventional night vision binoculars?
A1: Unlike standard night vision, China Moneypro MY528B integrates infrared and low-lux CMOS fusion, enabling camouflage detection and superior recognition in complex environments.

Q2: How long can the device operate continuously on a full charge?
A2: With 4 × 18650 rechargeable batteries, it offers over 6 hours of continuous operation under ambient conditions.

Q3: What storage capacity is available for images and videos?
A3: China Moneypro MY528B has built-in storage for up to 10,000 still images and 2 hours of video recording.

Q4: How effective is the camouflage detection feature in practical use?
A4: The fusion of multi-spectral imaging modes (IR + low-light) significantly improves detection of hidden personnel and vehicles, especially in woodland and urban terrains.

Q5: What environmental conditions can China Moneypro MY528B withstand?
A5: It is designed for extreme adaptability, with operating temperatures from -40°C to +55°C and storage temperatures from -55°C to +70°C, ensuring reliability in diverse climates.
