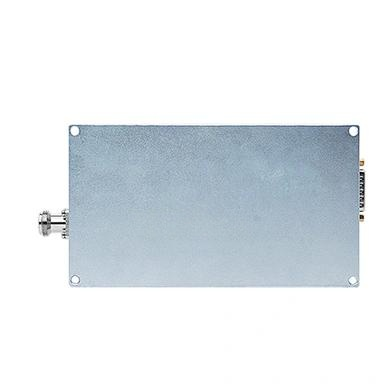

Unleashing the Power of the 2.5–6GHz 100W Wide Band RF Power Amplifier Module
nn
In the fast-evolving world of modern communication and radar technology, the demand for high-performance RF modules has never been more urgent. Engineers and system integrators require components that deliver exceptional power, wide frequency coverage, and unwavering reliability. Our Customized 100W 2.5–6GHz Wide Band RF Power Amplifier Module is engineered precisely to meet these demanding requirements. This robust module operates across the 2500–6000MHz frequency range, providing a saturated power output of 49±1dBm and a gain of 49±2dB. Such powerful amplification ensures signal integrity and stable transmission even in challenging environments. Designed for DC 32V input, the module maintains consistent performance, making it the ideal choice for radar systems, electronic warfare, and advanced communication platforms. Its superior in-band flatness and low VSWR further enhance signal quality, while the wide operating temperature range of -10 to +55°C guarantees reliable operation in diverse conditions. As a premium module provider, we offer comprehensive OEM customization services, allowing you to tailor frequency bands, power levels, and interfaces to your unique project specifications. Choosing this module means investing in proven engineering, rigorous quality control, and dedicated technical support that drives your success.
nn
Key Technical Specifications
nn
The 2.5–6GHz 100W Wide Band RF Power Amplifier Module is built with precision and performance in mind. Below are the critical parameters that define its capabilities and ensure seamless integration into complex systems.
nn
| Parameter | Value |
|---|---|
| Working Frequency | 2500 – 6000 MHz |
| Saturated Power Output | 49 ± 1 dBm |
| Gain | 49 ± 2 dB |
| In-Band Flatness | ≤ ±1.5 dB |
| Working Current | ≤ 9 A |
| Input & Output VSWR | ≤ 1.5:1 |
| Out-of-Band Spurious Emissions (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurious Emissions (1 GHz – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC 32 V |
| Power Supply Interface | 2W2 |
| RF Input Connector | SMA-KFD |
| RF Output Connector | N-F |
| Monitoring Interface | DB9 (Pin 1: TEMP, Pin 3: VSWR) |
| Amplifier Dimensions | 182 × 94 × 28 mm |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Storage Temperature | -25°C to +65°C |
nn
How the 2.5–6GHz 100W Wide Band RF Power Amplifier Module Enhances System Performance
nn
This module excels in environments where wideband agility and high output power are critical. Its ability to deliver 49 dBm saturated power across the 2.5 to 6 GHz spectrum makes it particularly valuable for radar applications, where accurate detection and target positioning depend on strong, clean signal amplification. The low VSWR and tight spurious emission limits ensure minimal interference and reflection, preserving system efficiency. Additionally, the integrated monitoring interface (DB9) provides real-time temperature and VSWR feedback, enabling proactive system management and fault prevention. Whether deployed in tactical communications, test instrumentation, or scientific research, the module’s rugged construction and thermal stability guarantee long-term reliability.
nn
Customization Options for Your Unique Requirements
nn
We understand that every project has distinct demands. That is why our 2.5–6GHz 100W Wide Band RF Power Amplifier Module is available with full OEM customization. Whether you need to adjust the frequency band, fine-tune power output, or modify connectors for specific integration, our engineering team works closely with you to develop a tailored solution. This flexibility ensures that the module fits seamlessly into existing systems without compromising performance or requiring extensive redesign. From raw material selection to final testing, each unit undergoes rigorous quality control to meet the highest industry standards.
nn
Conclusion: A Reliable Partner for Critical RF Applications
nn
The 2.5–6GHz 100W Wide Band RF Power Amplifier Module represents a perfect balance of power, precision, and adaptability. Its wide frequency coverage, robust output, and excellent linearity make it a trusted component for demanding RF systems. With a focus on quality assurance, technical support, and customization, we ensure that your project benefits from a module that performs consistently under real-world conditions. By selecting this module, you gain a competitive edge backed by decades of engineering expertise and a commitment to customer success. For any system requiring reliable high-power amplification across the 2.5–6 GHz range, this module is the clear choice.
