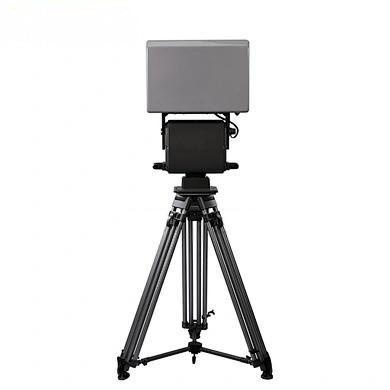

Understanding the MOP-DJ-3K Directional Drone Jammer
nnIn today’s rapidly evolving airspace, unauthorized drones pose significant threats to security, privacy, and safety. The MOP-DJ-3K directional drone jammer stands as a formidable solution, designed to create an electromagnetic shield that disrupts drone communications. By transmitting powerful radio signals, this advanced system forces rogue drones to return to their point of origin, land immediately, or hover harmlessly, effectively preventing them from entering controlled zones. This technology is not just about blocking signals; it is about establishing a secure perimeter that protects critical infrastructure, public events, and sensitive facilities.nn
How the Directional Drone Jammer Works
nnThe MOP-DJ-3K operates by emitting targeted radio frequency interference across multiple bands, effectively severing the communication link between a drone and its operator. When a drone enters the jamming field, it loses control signals and navigation data, triggering its fail-safe protocols. The result is predictable: the drone hovers, lands, or returns home, neutralizing the threat without physical destruction. This non-kinetic approach ensures minimal collateral damage and high operational safety.nn
Key Features and Performance
nnThe system is equipped with a high-speed gimbal that enables rapid tracking and engagement of moving targets. It integrates seamlessly with existing detection equipment, such as radar and RF scanners, to deliver real-time threat response. The MOP-DJ-3K is highly versatile, supporting a wide array of consumer and industrial drones, including model aircraft, FPV racers, and DIY builds. It covers major global navigation satellite systems, including GPS, BDS, GLONASS, and Galileo, ensuring compatibility with virtually any drone type.nn
Technical Specifications of the Directional Drone Jammer
nnThe following table details the critical technical parameters that define the MOP-DJ-3K’s capabilities. This structured data is essential for system integrators and security professionals evaluating its suitability for specific applications.nn
| Parameter | Specification |
|---|---|
| Working Frequency Range | 400 MHz – 5.9 GHz |
| Supported Protocols | GPS, BDS, GLONASS, Galileo |
| Jamming Modes | Disruption mode, Forced landing mode |
| Jamming Distance | 3 km (varies by environment and drone model) |
| Response Time | ≤ 3 seconds |
| PTZ Rotation Speed (Horizontal) | 0.02° ~ 60°/s |
| PTZ Rotation Speed (Vertical) | 0.01° ~ 12°/s |
| Antenna Horizontal Angle | 30° ~ 50° |
| Power Supply | AC 220V |
| Power Consumption | Customizable per configuration |
| Dimensions (L x W x H) | 470 mm x 250 mm x 700 mm |
| Operating Temperature | -40°C to +60°C |
| Protection Rating | IP66 |
nn
Customizable Frequency Options
nnThe directional drone jammer offers a comprehensive set of working frequencies that can be tailored to specific operational needs. Standard options include 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz. Customers can select single or multi-frequency jamming configurations, ensuring stable and strong signal output across the chosen bands. This flexibility allows the system to adapt to diverse threat environments, from civilian airspace to military zones.nn
Environmental Durability and Deployment
nnWith an IP66 protection rating, the MOP-DJ-3K is built to withstand harsh weather conditions, including heavy rain, dust, and extreme temperatures ranging from -40°C to +60°C. Its robust design ensures reliable performance in outdoor installations, whether on rooftops, towers, or mobile platforms. The system’s compact dimensions (470 mm x 250 mm x 700 mm) and low power consumption make it suitable for both fixed and semi-permanent deployments.nn
Applications for the Directional Drone Jammer
nnThis jammer is ideally suited for airspace security in key areas such as airports, government buildings, military bases, prisons, and large public events. Its ability to create a selective interference zone ensures that only unauthorized drones are affected, while allowing legitimate communications to continue unaffected. The MOP-DJ-3K’s rapid response time and precise directional control make it an invaluable tool for security teams managing complex airspace.nn
Conclusion: Securing Airspace with Confidence
nnThe MOP-DJ-3K directional drone jammer represents a mature, reliable choice for counter-drone operations. Its combination of wide frequency coverage, fast response, and robust environmental protection ensures that security professionals can maintain control over their airspace. By integrating this system into a layered security strategy, organizations can effectively neutralize drone threats, protect critical assets, and maintain public safety. As drone technology continues to advance, investing in a capable directional drone jammer like the MOP-DJ-3K is not just a precaution—it is a necessity.
