Unlocking Robust Connectivity with the MOP-DYA-5.8G-12/15-SMAM Patch Antenna
n
In the world of wireless communication, the antenna is the unsung hero that bridges the gap between signal transmission and reliable reception. The MOP-DYA-5.8G-12/15-SMAM is a compact yet powerful component designed to excel in high-frequency applications. Whether you are deploying wireless video systems, drone links, or point-to-point data bridges, this antenna delivers exceptional performance in the 5.8 GHz ISM band. Its robust construction and precise electrical characteristics ensure it can handle demanding environments while maintaining signal integrity. Below, we dive deep into what makes this antenna a standout choice for engineers and system integrators.
n
Key Electrical Specifications Explained
n
Understanding the electrical parameters of any antenna is crucial for system design. The MOP-DYA-5.8G-12/15-SMAM is engineered to operate efficiently within the 5.725–5.825 GHz frequency range, making it ideal for high-speed data transmission. With a gain between 12 and 15 dBi, it provides focused beamwidth for extended range while reducing interference from adjacent devices. Vertical polarization ensures compatibility with many standard systems, and the front-to-back ratio exceeding 16 dB means the antenna minimizes signal spillover behind its main propagation direction, which is vital for directional links. The low VSWR of ≤1.5 ensures minimal power loss, while DC grounding offers lightning protection, adding a layer of safety in outdoor deployments.
n
| Parameter | Value |
|---|---|
| Model Number | MOP-DYA-5.8G-12/15-SMAM |
| Frequency Range (MHz) | 5725–5825 |
| Gain (dBi) | 12–15 |
| Polarization | Vertical |
| Front-to-Back Ratio | >16 dB |
| VSWR | ≤1.5 |
| Maximum Input Power (W) | 50 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC Ground |
n
Mechanical Construction and Durability
n

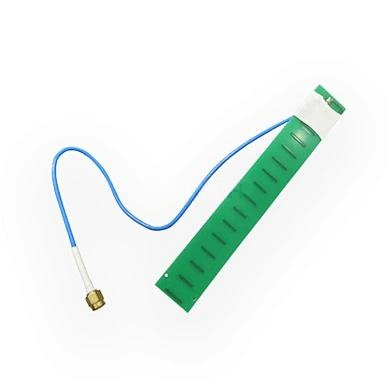

When selecting an antenna for real-world use, mechanical robustness is just as important as electrical performance. This model boasts a compact form factor with dimensions of approximately 65×25×2 mm, allowing it to be integrated into tight spaces without compromising performance. The integrated cable, an RG405 type, is precisely cut to 330 mm and terminates in an SMA male connector, ensuring secure connections with compatible transceivers. With a weight of only 0.04 kg, it is lightweight enough for unmanned aerial vehicles or portable equipment. Furthermore, the antenna is rated for wind velocities up to 60 m/s, and its PCB construction provides reliable operation across a wide temperature range from -40°C to +50°C, making it suitable for both indoor and outdoor installations.
n
| Parameter | Value |
|---|---|
| Connector Type | SMA Male |
| Dimensions (mm) | Approx. 65×25×2 |
| Cable | RG405, 330 mm length |
| Antenna Weight (kg) | 0.04 |
| Rated Wind Velocity (m/s) | 60 |
| Material | PCB |
| Operation Temperature (°C) | -40 to +50 |
n
Customization Options and Application Versatility
n
One of the standout features of this antenna series is its adaptability. While the standard model is optimized for the 5.725–5.825 GHz band, the manufacturer offers customization for other frequency ranges and gain levels to match specific project requirements. This flexibility means that whether you are building a long-range drone control link, enhancing Wi-Fi coverage in a niche application, or deploying a wireless surveillance system, the MOP-DYA-5.8G-12/15-SMAM can be tailored to your exact needs. The high gain and directional pattern make it particularly effective in applications where concentrating energy in a specific direction is critical, thereby reducing interference and extending communication range.
n
Conclusion: A Reliable Choice for High-Frequency Communication
n
In summary, the MOP-DYA-5.8G-12/15-SMAM is a precision-engineered, high-gain patch antenna that balances compact design with outstanding electrical performance. Its vertical polarization, low VSWR, and effective front-to-back ratio ensure clean signal propagation, while the rugged mechanical specifications guarantee longevity in challenging conditions. The ability to customize both frequency and gain further amplifies its utility across various industries. If you are looking to enhance your 5.8 GHz wireless system with a dependable and high-performance antenna, this model deserves serious consideration. For inquiries about custom configurations or to place an order, do not hesitate to reach out to the team behind this robust solution.
