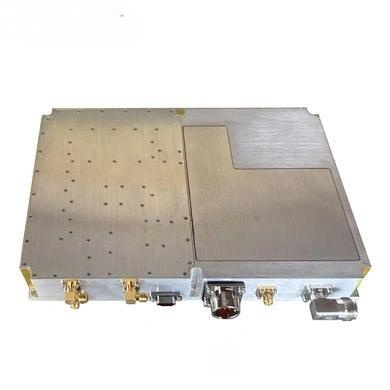

Unleashing Advanced Radar Performance with the X Band 8.5-9.6 GHz Transceiver Module
nn
In the demanding world of radar and professional communication systems, signal integrity and robust power handling are not just features—they are necessities. The X Band 8.5-9.6 GHz transceiver module stands as a pinnacle of engineering, combining a high-power transmitter with an ultra-low noise receiver in a single, integrated package. This bidirectional powerhouse is designed to meet the strictest requirements of modern defense, aerospace, and telecommunications infrastructure.
nn
At the heart of this module lies a high-performance architecture that delivers comprehensive signal processing capabilities. Whether you are upgrading legacy systems or designing next-generation phased-array radars, this receiver and transmitter module offers the flexibility, linearity, and protection needed for continuous, reliable operation in harsh environments. Let’s dive into the specifics that make this X-band solution a game-changer.
nn
Key Specifications and Technical Parameters
nn
To fully appreciate the capabilities of this X-band transceiver, it is essential to examine its detailed performance metrics. The following table breaks down the critical parameters for both the transmitter and receiver sections, providing a clear picture of its operational envelope.
nn
| Parameter | Specification |
|---|---|
| Model Frequency Band | X-Band 8.5 / 9.6 |
| TX Frequency Range | 8.5 – 9.6 GHz |
| Input Signal Type | Pulse |
| Input Pulse Width Range | 0.1 µs – 200 µs |
| Duty Cycle | 20% |
| Input Drive Level | -5 to +5 dBm |
| Output Power (N-type Connector) | ≥ 40 Watts |
| Maximum Pulse Droop | ≤ 0.5 dB |
| Spurious & Harmonics | ≤ -60 dBc |
| Group Delay Variation (IF BW) | Within specified bandwidth |
nn
Transmitter Section: High-Power Pulse Control
nn
The transmitter component of this X Band 8.5-9.6 GHz transceiver module is engineered for maximum reliability under extreme conditions. With a robust output power exceeding 40 watts and support for pulse widths ranging from 0.1 to 200 microseconds at a 20% duty cycle, it delivers the energy required for long-range detection and high-resolution imaging. Precise pulse control ensures minimal droop (≤0.5 dB), maintaining waveform integrity even at maximum pulse widths. The module also includes comprehensive protection features—backpressure, high voltage, high current, short circuit, and overheat safeguards—ensuring uninterrupted operation even under antenna open port conditions (VSWR=∞) without time constraints.
nn
Receiver Section: Low Noise and High Linearity
nn
On the receive side, the module excels with an exceptionally low noise figure, critical for maintaining sensitivity in dense signal environments. The receiver integrates a high-isolation SPST RF switch (-60 dB isolation) and a flexible IF attenuator with a 31.5 dB range in 0.5 dB steps, controlled via RS422. This allows dynamic gain adjustment to optimize signal-to-noise ratio. The following table details the receiver’s critical performance attributes.
nn
| Parameter | Specification |
|---|---|
| RX Input RF Frequency | 8.5 – 9.6 GHz |
| Noise Figure | Low (as per design targets) |
| Maximum Input Power | 10W (protection active) |
| RF Switch Isolation | SPST – 60 dB |
| Input P1dB (Gain = 20 dB) | -10 dBm |
| LO to IF Leakage | -60 dBc |
| IF Attenuation Range | 20 – 60 dB (31.5 dB step control via RS422, 0.5 dB steps) |
| Output P1dB | 10 ± 1 dBm |
| Frequency Gain Flatness | ±1 dB |
| Spurious & Harmonics (Output) | ≥ 70 dBc |
| Spur (Input Port Load) | ≥ 100 dBc |
| Image Rejection | ≥ 60 dBc |
nn
Integrated Protection and Control
nn
What sets this receiver and transmitter module apart is its intelligent protection suite. The system automatically guards against maximum duty cycle violations, open antenna conditions, backpressure, high voltage, high current, short circuits, and overheating. This ensures that the X Band 8.5-9.6 GHz transceiver module maintains operational integrity without the need for manual oversight, even under fault scenarios. Coupled with RS422-controlled IF attenuation and high linearity throughout the receive chain, this module delivers consistent, reliable performance across the entire X-band spectrum.
nn
Conclusion: Your Ultimate Solution for X-Band Demands
nn
From high-power transmission to ultra-sensitive reception, the X Band 8.5-9.6 GHz transceiver module provides a complete, integrated solution for the most challenging radar and communication applications. Its rugged design, advanced protection features, and precise control mechanisms ensure that your system operates at peak efficiency, whether deployed in fixed installations or mobile platforms. By choosing this module, you are investing in reliability, performance, and the future of X-band technology. Experience the difference that comprehensive engineering and robust design can make in your next project.
