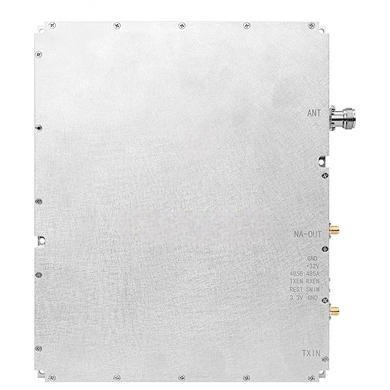

Unmatched Power and Precision: Introducing the 150W 5.6-5.8G Jammer Module
nn
In the demanding world of high-frequency communications, signal integrity and amplification power are non-negotiable. For engineers and RF specialists operating within the 5.6 to 5.8 GHz band, finding a component that delivers both robust power and pristine signal quality is a critical challenge. Our latest solution is a professional-grade jammer module engineered to meet these exacting standards. This high-power core model combines a 150W high-performance linear amplifier with the specialized architecture of a jammer module, creating a uniquely powerful and precise tool for complex communication scenarios. From infrastructure development to testing environments, this 150w jammer module redefines what is possible in the 5600-5800MHz range.
nn
Core Technical Specifications of the 150W Jammer Module
nn
The performance of any RF subsystem is ultimately determined by its core metrics. This module is built around a set of tightly controlled parameters that ensure consistent, reliable operation in the field. To provide a clear technical overview, all critical specifications are detailed in the table below, covering both downlink (transmit) and uplink (receive) paths where applicable.
nn
| Test Item | Indicator (Downlink) | Indicator (Uplink) | Unit | Remark |
|---|---|---|---|---|
| Frequency Range | 5600–5800 | 5600–5800 | MHz | |
| Maximum Output Power | 53 ± 0.5 | 15 | dBm | |
| Gain | 55 ± 1.5 | 25 ± 1.0 | dB | |
| Noise Figure | ≤ 15 | ≤ 3 | ||
| Flatness | ≤ 3 | ≤ 2 | dB | |
| PA Voltage | 32 | 32 | V | |
| Power Conversion Efficiency | > 15% (@52dBm) | |||
| Gain Adjustment Step Size | 1.0 | Not supported | dB | |
| Numerical Control Regulation Error | 1–16 dB ≤ 1.0 | Not supported | dB | |
| Spurious Emission (In-Band) | ≤ -36 dBm | Tested with CW signal at the center frequency and output power set to maximum | ||
| Spurious Emission (Out-of-Band 9KHz–1GHz) | No clutter above normal noise floor | |||
| Spurious Emission (Out-of-Band 1G–12.75GHz) | No clutter above normal noise floor | |||
| Maximum Allowable Input Power | ≤ +10 | ≤ -10 | dBm | No damage occurs for continuous operation for 1 min |
| Input VSWR | ≤ 1.50 | ≤ 1.50 | ||
| Output VSWR | ≤ 1.50 | ≤ 1.50 | ||
| Switching Delay | ≤ 2 | ≤ 4.8 | μs | |
| High and Low Temperature Test | Ambient Temperature: -10 to +55 ℃ | |||
| Starts normally at low temperatures, monitoring works normally | ||||
| Gain Stability | ± 2 dB | @-10℃ to +55℃ | ||
| Power Stability | ± 1.5 dB | @-10℃ to +55℃ | ||
| Current | ≤ 23A @ 32V | |||
| Power Interface | KF2EDG5.08-4P Male Connector | |||
| Monitoring Interface | XH2.54-8P Male Connector | |||
| RF Input/Output Connectors | RF-IN: N-K / LAN OUT: MCX-K / ANT: N-K | |||
| Uplink/Downlink Switching Methods | TX_EN and RX_EN signal; 10 = transmit, 01 = receive; 00 = both off; simultaneous 11 is prohibited | |||
nn
Exceptional Performance and Advanced Features
nn
Ultra-High Power with Low Distortion
n
At the heart of this 150w jammer module lies a robust linear amplifier that delivers an extraordinary 53±0.5dBm of downlink power. This 150W output is not just about raw strength; it is paired with exceptional linearity and low noise characteristics. The result is a clean, high-fidelity amplified signal crucial for maintaining data integrity in dense RF environments. The ±0.5dBm power accuracy guarantees that your system operates within its designed parameters, preventing overdrive or underpower conditions.
nn
Rapid TDD Switching and Precise Control
n
Modern communication systems, particularly those employing Time-Division Duplexing (TDD), demand incredibly fast switching between transmit and receive states. This module excels with a downlink switching delay of ≤2μs and an uplink delay of ≤4.8μs. This lightning-fast response is integrated with a jammer module architecture that supports seamless TDD synchronization. Furthermore, the built-in 0-16dB digital control attenuation allows for fine-grained output power adjustment in 1dB steps, giving you total command over signal levels. Parameter configuration and real-time status monitoring (including temperature, power, and VSWR) are handled effortlessly through the RS-485 interface.
nn
Robust Protection and Reliable Operation
n
Field-deployed equipment must withstand harsh conditions and protect itself from faults. This 150w jammer module is equipped with multi-level protection mechanisms against over-temperature, over-power, and VSWR anomalies. These safeguards automatically engage to prevent damage, ensuring long-term reliability. The industrial-grade design operates flawlessly across a wide temperature range of -10°C to +55°C, maintaining gain stability within ±2dB and power stability within ±1.5dB. With input and output VSWR both rated at ≤1.5:1, it integrates cleanly into 50-ohm systems with minimal reflected power.
nn
Versatile Interface and Easy Integration
n
Designed for practical deployment, the module features a comprehensive set of standardized interfaces. The power connection uses a reliable KF2EDG5.08-4P male connector, while monitoring and control are conducted via an XH2.54-8P male connector. RF signals are routed through rugged N-K connectors for the main antenna and RF input, and a compact MCX-K connector for the local area network output. This thoughtful selection of connectors simplifies cabling and ensures robust, repeatable RF performance in both lab and field settings.
nn
Conclusion: The Definitive 150W Jammer Module for 5.6-5.8G Systems
n
When your project requires a high-power, high-linearity solution for the 5.6-5.8 GHz band, this 150w jammer module stands alone. Its combination of ultra-high output power, low spurious emissions, rapid TDD switching, and comprehensive protection features makes it an indispensable building block for advanced RF links. Engineers will appreciate the precise control, stable performance across temperature extremes, and straightforward integration. Whether you are constructing a communication network, conducting rigorous testing, or developing specialized applications, this module delivers the performance and reliability you demand. Choose the 150w jammer module for your next project and experience the pinnacle of 5.6-5.8G RF amplification technology.
