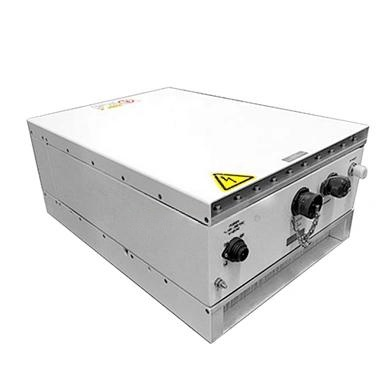

Unleashing the Power of X-Band: The 300W GaN Block Upconverter
nnIn the fast-paced world of satellite communications and defense, signal integrity and power are paramount. The 300W X-band GaN block upconverter from MOP Tech represents a significant leap forward, designed to meet the most demanding requirements. By bridging the gap between Intermediate Frequency (IF) signals and high-frequency X-band transmission, this device ensures reliable, long-distance uplink connectivity. Its core engineering leverages Gallium Nitride (GaN) technology, which delivers exceptional efficiency, higher power density, and superior thermal management compared to older Gallium Arsenide (GaAs) solutions. For professionals in tactical operations, emergency response, or commercial VSAT networks, this upconverter offers a compact, rugged, and powerful tool that guarantees data integrity even in the harshest environments.nn
The Core Innovation: GaN Technology in the Block Upconverter
nnThe heart of this system is its advanced GaN semiconductor architecture. This isn’t just a simple improvement; it’s a fundamental upgrade that redefines performance benchmarks. The high breakdown voltage and electron mobility of GaN allow the block upconverter to achieve a saturated power of 54.8dBm (300W) and a linear power of 51.8dBm (150W) without the bulky size and heat sink requirements of traditional designs. This translates directly into a smaller, lighter unit—crucial for mobile platforms like tactical satellite terminals and drone communications. The enhanced efficiency also means reduced energy consumption, lowering operational costs and thermal stress on surrounding components. For deployments where every watt and gram counts, this technology is a decisive advantage.nn
Military-Grade Reliability and Environmental Resilience
nnBuilt to withstand the elements, this block upconverter is engineered for unconditional reliability. It operates flawlessly across an extreme temperature range of -40°C to +60°C and tolerates 100% condensing humidity. Its robust construction also resists shock and vibration, making it ideal for airborne, ship-borne, and mobile ground station applications. The device complies with stringent military standards, ensuring that communication links remain stable under combat conditions or during natural disaster relief operations. This level of ruggedness is not an option but a necessity for mission-critical uplinks where failure is not an option.nn
Precision and Control for High-Order Modulation
nnTo maximize data throughput, the upconverter supports high-order modulation schemes like QPSK and OQPSK. Achieving spectral purity and low distortion at 300W is a formidable engineering challenge, yet this device delivers. Key performance metrics, such as spectral regrowth and intermodulation products, are tightly controlled to maintain signal integrity. Furthermore, the unit offers real-time gain adjustment in precise 0.1dB steps. This granular control is vital for optimizing link budgets in dynamic environments, whether you are fine-tuning signal strength for a high-throughput satellite gateway or compensating for atmospheric attenuation.nn
Seamless Integration and Remote Management
nnModern network operations demand smart, integrated components. This block upconverter excels in this area, providing both Ethernet and RS-232 interfaces for remote control and monitoring. Users can adjust gain, query diagnostic status, and configure parameters from a central network operations center (NOC). This facilitates easy integration into automation networks, reducing the need for on-site technicians and enabling proactive maintenance. An optional SNMP interface further enhances network management capabilities, making it a perfect fit for large-scale, distributed satellite communication systems.nn
Detailed Technical Specifications
nnThe following table outlines the critical performance parameters of this 300W X-band GaN block upconverter:nn
| Parameter | Specification |
|---|---|
| RF Output Frequency | 7.9 – 8.4 GHz |
| Input Level, No Damage | +10 dBm max |
| IF/REF Input Impedance | 50 Ohms |
| IF Input Frequency | 950 – 1450 MHz (other options available) |
| LO Reference Frequency | External 10 MHz |
| LO Reference Level | 0dBm ±5dB |
| Saturated Power, PSAT | 54.8dBm (300W) |
| Maximum CW Power, PMAX | 53dBm (200W) |
| Linear Power, PLIN (min) | 51.8dBm (150W) |
| Spectral Regrowth @ PLIN (QPSK, OQPSK @1SR offset) | -30 dBc max |
| Intermodulation Products @ PLIN (wrt sum of 2 equal carriers) | -25 dBc max |
| AM to PM Conversion @ PLIN | 2.0°/dB max |
| Small Signal Gain (typical) | 70dB ±5dB |
| Attenuation Range | 25dB in 0.1 dB steps |
| Gain Variation (over 40 MHz) | 1.0 dB p-p max |
| Gain Variation (over full band) | 3.0 dB p-p max |
| Gain Slope (max) | 0.04 dB/MHz |
| Gain Stability (over 24 hours) | 0.5 dB p-p max |
| Gain Variation over Temp | 4.0 dB p-p max |
| Noise Power (Transmit Band) | -75 dBW/4 kHz |
| Noise Power (Receive Band) | -75 dBW/4 kHz |
| Sum of All Spurious | -30 dBc |
| Single Sideband Sum | -36 dBc |
| Harmonics | -60 dBc |
| Output Spurious @ PLIN (Excludes 1 MHz Band) | -60 dBc |
| Phase Noise (max) | 100 Hz: -63 dBc/Hz 1 kHz: -73 dBc/Hz 10 kHz: -83 dBc/Hz 100 kHz: -93 dBc/Hz 1 MHz: -103 dBc/Hz |
| Reference Phase Noise (max) | 10 Hz: -125 dBc/Hz 100 Hz: -155 dBc/Hz 1 kHz: -165 dBc/Hz |
| Transmit Phase Linearity up to PLIN | over any 2 MHz: ±0.2 radian over any 36 MHz: ±0.4 radian over any 72 MHz: ±0.5 radian over any 90 MHz: ±0.6 radian over any 120 MHz: ±0.7 radian |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.3:1 |
| Prime Power | 90-264 VAC, 875W @ PLIN |
| Operating Temp Range | -40° to +60°C |
| Non-Operating Temp Range | -50° to +70°C |
| Altitude (max) | 12,000 ft. MSL |
| Humidity | 100% condensing |
| Shock/Vibration | Normal transportation |
| M&C Interface | Ethernet and RS-232 (SNMP Option) |
| Weight | 32 lb (14.5 kg) |
| Dimensions | 14.7cm x 12.95cm x 9.9cm |
nn
Conclusion: Elevating Your Communication Infrastructure
nnThe 300W X-band GaN block upconverter from MOP Tech is not just another RF component; it is a strategic enabler for the most demanding communication networks. Its blend of extreme power output, precise signal handling, and unmatched environmental durability makes it the definitive choice for defense, aerospace, and commercial VSAT applications. Whether securing a tactical satellite link, providing emergency connectivity, or powering a high-throughput gateway, this device delivers the performance and reliability required to keep the world connected. When your mission depends on a powerful, resilient block upconverter, this solution stands ready to perform at the highest level.
