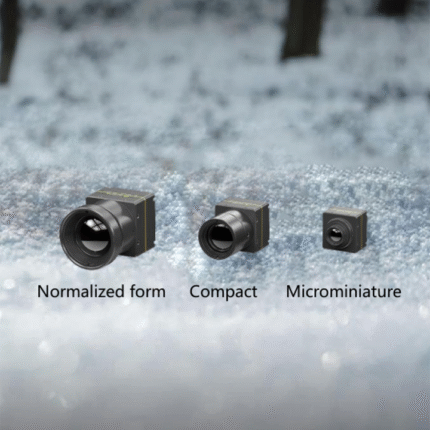

Uncooled Infrared Movement Components
Back to products

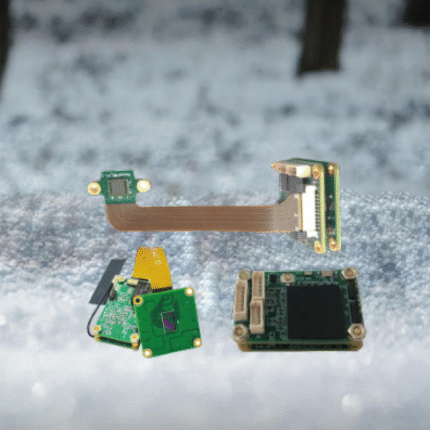

Video Image Acquisition/Transmission/Processing Component

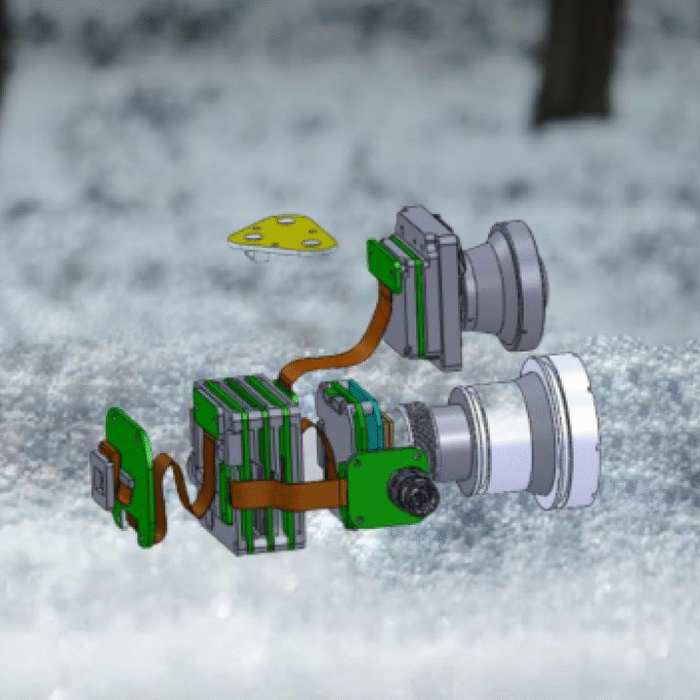

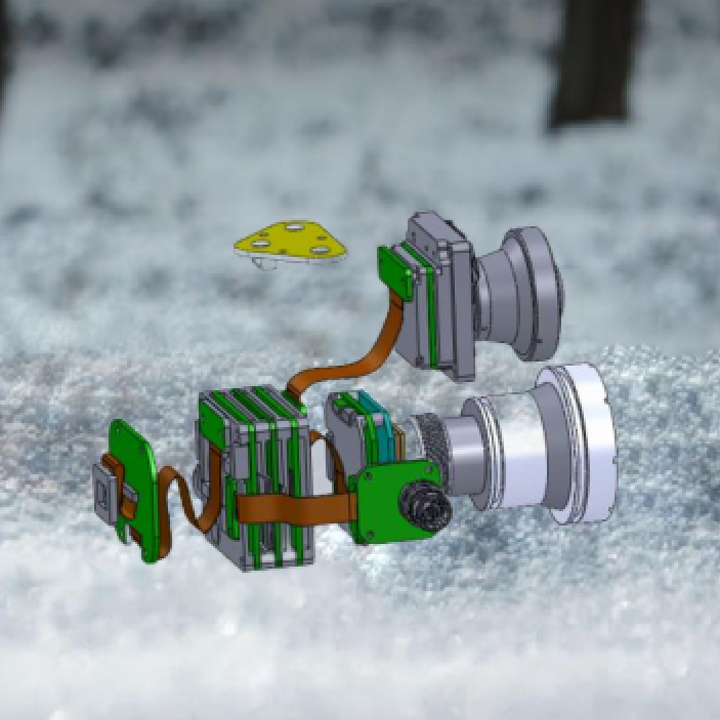

Infrared and Low-luminous fusion Modules

Module adopts uncooled infrared and low-light-level night vision enhancement technology, which has the dual advantages of infrared thermal imaging and digital low illumination, and has good environmental adaptability, meeting the requirements of helmet night vision, sight, hand-heldĀ observation equipment, vehicle-mounted photoelectric environmental perception and other products.

Categories: ,
Description

Infrared and Low-luminous fusion Modules Features

It can adapt to different environments, different product needs.

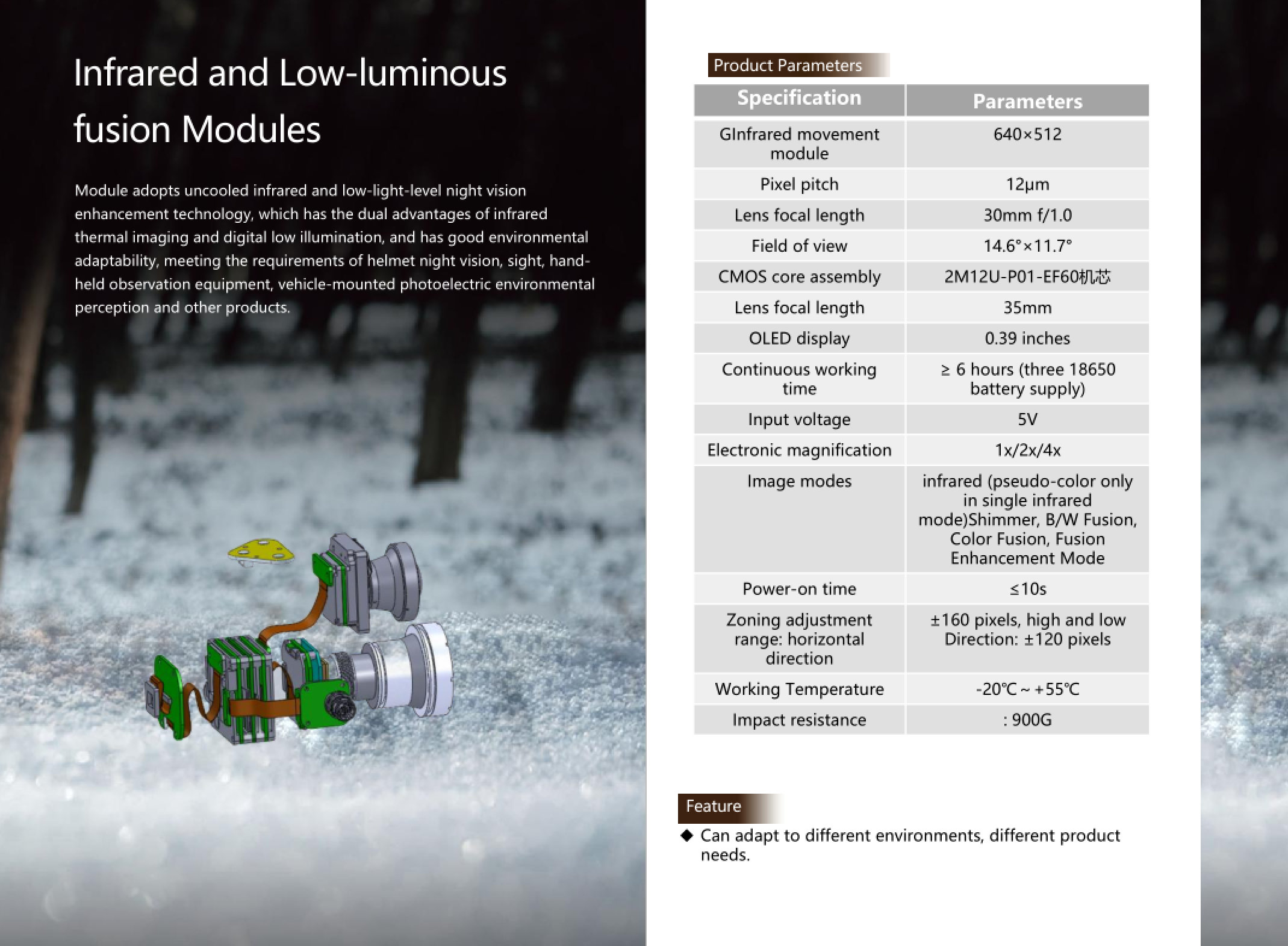

Infrared and Low-luminous fusion Modules Parameters

Specification Parameters
Glnfrared movement module 640×512
Pixel pitch 12Ī¼m
Lens focal length 30mm f/1.0
Field of view 14.6Ā°x11.7Ā°
CMOS core assembly 2M12U-P01-EF60ęœŗčŠÆ
Lens focal length 35mm
OLED display 0.39 inches
Continuous working time ā‰„ 6 hours (three 18650battery supply)
Input voltage 5V
Electronic magnification 1x/2x/4x
lmage modes infrared (pseudo-color onlyin single infraredmode)Shimmer,B/ Fusion.Color Fusion, FusionEnhancement Mode
Power-on time ā‰¤10s
Zoning adjustmentrange: horizontaldirection +160 pixels, high and lowDirection:Ā±120 pixels
Working Temperature -20ā„ƒ~+55ā„ƒ
lmpact resistance 900G

Infrared and Low-luminous fusion Modules

Related products

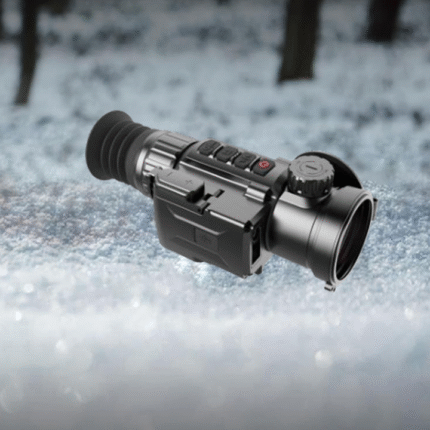

TS06 series infrared telescope

It's an infrared telescope; The 12um thermal imaging sensor can sense subtle temperature differences, giving you higher image resolution and image detail, the device can be used during the day and night, can be used in outdoor, security and other fields

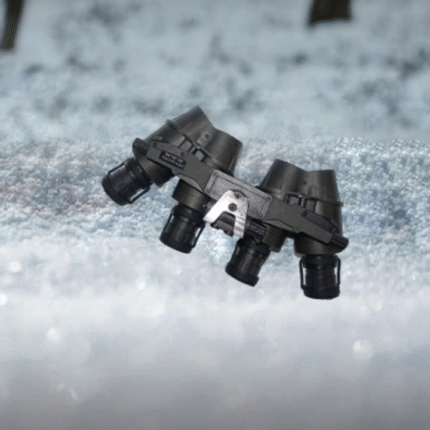

NV17 Four-Tube Night Vision Binocular

NV17 equipped with image intensifier tube 2 + generation, compact structure, versatile use, with a wide range of vision, easy to find the surrounding situation, can be used for night vehicle driving, maintenance, operation; night operations, night reconnaissance, anti-terrorism operations and other scenes. Mainly used for vehicle drivers, reconnaissance detachments and other special tasks, increasing the range of night perception of the team members.

M1200 Eye-Safe Laser Rangefinder Module

This module, which is based on a 905nm semiconductor laser, is specifically made for systems that have stringent weight and size constraints. We focus on developing multi-pulse rangefinding algorithms using reliable and well-established semiconductor lasers, as well as specially made reception detectors and a high-performance optical system. This has made it possible to develop a cutting-edge, market-leading tiny laser rangefinder module that may be used in a wide range of industries.

MTS625Miniature multipurpose infrared thermal imaging fast scope

MTS625 adopts highly integrated design, ultra-light and ultra-small, the volume and weight are comparable to red dot and holographic scopes. Adopting collimated eyepiece with 1X magnification, it has the same fast aiming ability as holographic and red dot sights.

China Moneypro ME210 – 5KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball

China Moneypro ME210Ā is a lightweight, vehicle-mounted photoelectric search and tracking ball, integrating advanced optical, mechanical, and electrical design to reduce weight without sacrificing performance. Designed for stability, adaptability, and intelligent operation, the ME210 provides high-precision tracking and stable imagery in diverse environments. With AI-enabled target recognition, anti-shake stabilization, and multi-environment adaptability, it is ideal for real-time surveillance, reconnaissance, and tracking missions.

Turing M256 Uncooled Infrared Module

The Turing M256 uncooled infrared module utilizes an advanced 256Ɨ192 wafer detector, offering compact dimensions, lightweight design, and low power consumption while fully complying with SWaPĀ³ requirements.
  • Split assembly designĀ enablesĀ flexible deploymentĀ in diverse applications.
  • Comprehensive auxiliary toolsĀ support multipleĀ ARM-based SOC platforms, ensuringĀ seamless integration and ease of development.
  • Dual-output capability: SimultaneousĀ thermal imaging and temperature data output.
Versatile compatibility: Works withĀ lightweight infrared lenses and extension components.

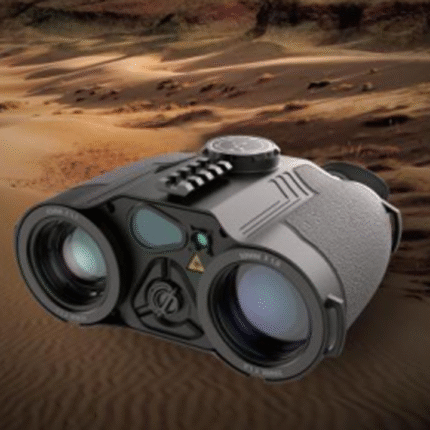

TF02 Infrared Fusion Telescope
