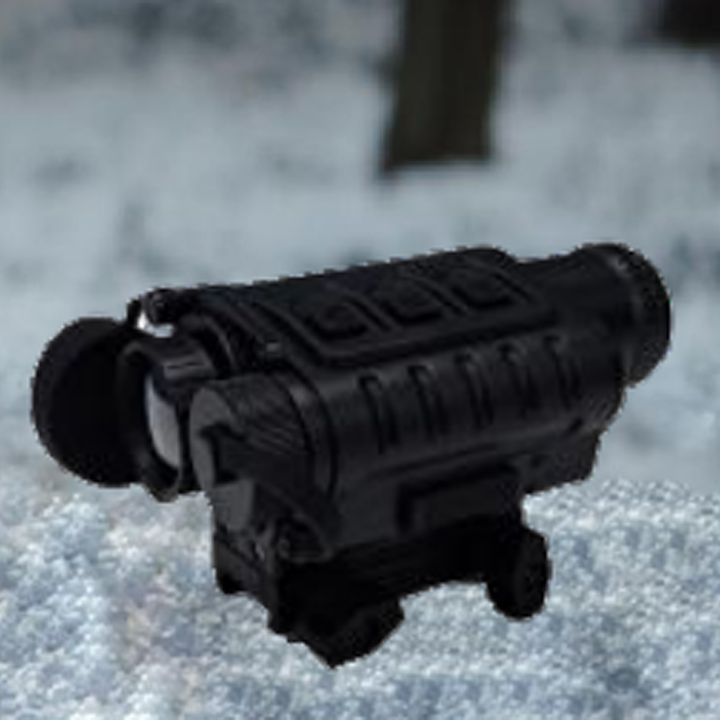

MTS625Miniature multipurpose infrared thermal imaging fast scope

MTS625 adopts highly integrated design, ultra-light and ultra-small, the volume and weight are comparable to red dot and holographic scopes. Adopting collimated eyepiece with 1X magnification, it has the same fast aiming ability as holographic and red dot sights.

Categories: ,
Description

MTS625Miniature multipurpose infrared thermal imaging fast scope Features

One machine, four uses：Multi-purpose and scalable to meet the needs of users in a variety of scenarios.
Compact and small：Highly integrated design, ultra-light and ultra-small, the volume and weight are comparable to red dot and holographic scopes, and far superior to ordinary infrared scopes.
High definition image：Adopting 12μm high performance infrared detector, it can present high quality infrared thermal image even under the condition of no light at all.
Quick aim：Collimating eyepieces with 1x optical magnification provide the same fast aiming capability as holographic and red dot sights.
Powerful function：Support recording, storage, playback, wifi, compass, good ergonomics.

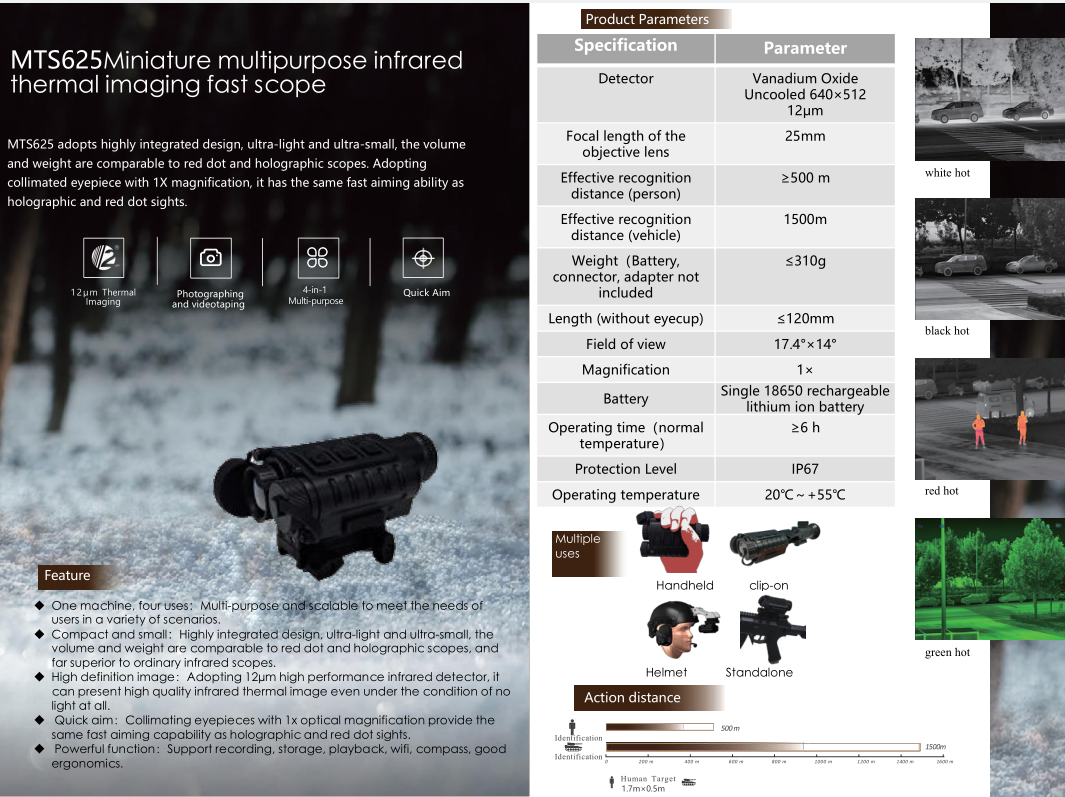

MTS625Miniature multipurpose infrared thermal imaging fast scope Parameters

Specification Parameter
Detector Vanadium Oxide Uncooled 640×512 12μm
Focal length of the objective lens 25mm
Effective recognition distance (person) ≥500 m
Effective recognition distance (vehicle) 1500m
Weight (Battery.connector, adapter not included ≤310g
Length (without eyecup) ≤120mm
Field of view 17.4°x14°
Magnification 1x
Battery Single 18650 rechargeable lithium ion battery
Operating time (normal temperature) ≥6h
Protection Level 1P67
Operating temperature 20℃~+55C
