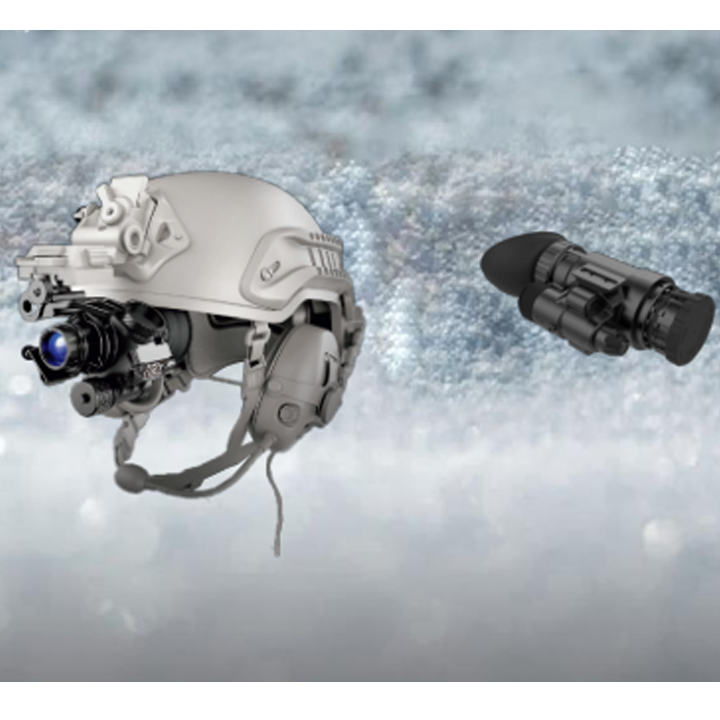

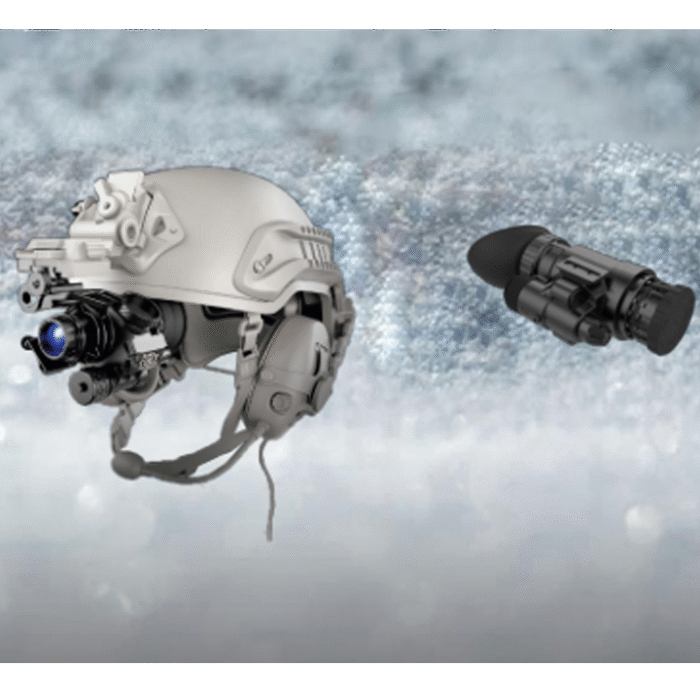

NV14 Night Vision Monocular

The product is portable and multi functional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x , 3x and 5x are available.Image Intensifier Tube – Generation 2+, power supply with built-in bright flash protection (with automatic brightness gain regulation). It can be equipped with digital camera, video recorder,CCD video camera and use super Gen 2+ or gen3 sophisticated Image Intensifier Tube with Anti-glare,function and built-in IR Illuminator.

Categories: ,
Description

NV14 Night Vision Monocular Features

Small in size, compact rugged Goggle system
Multi-purpose: Hand-held, head-mounted or helmet mounted
Comfortable, flip-up headgear,reliable and
Multi-coated all-glass optics,superior resolution
Wide angle infrared illuminator,long range viewing
Optional 3x, 5x lenses available
Waterproof Weather and fog resistant

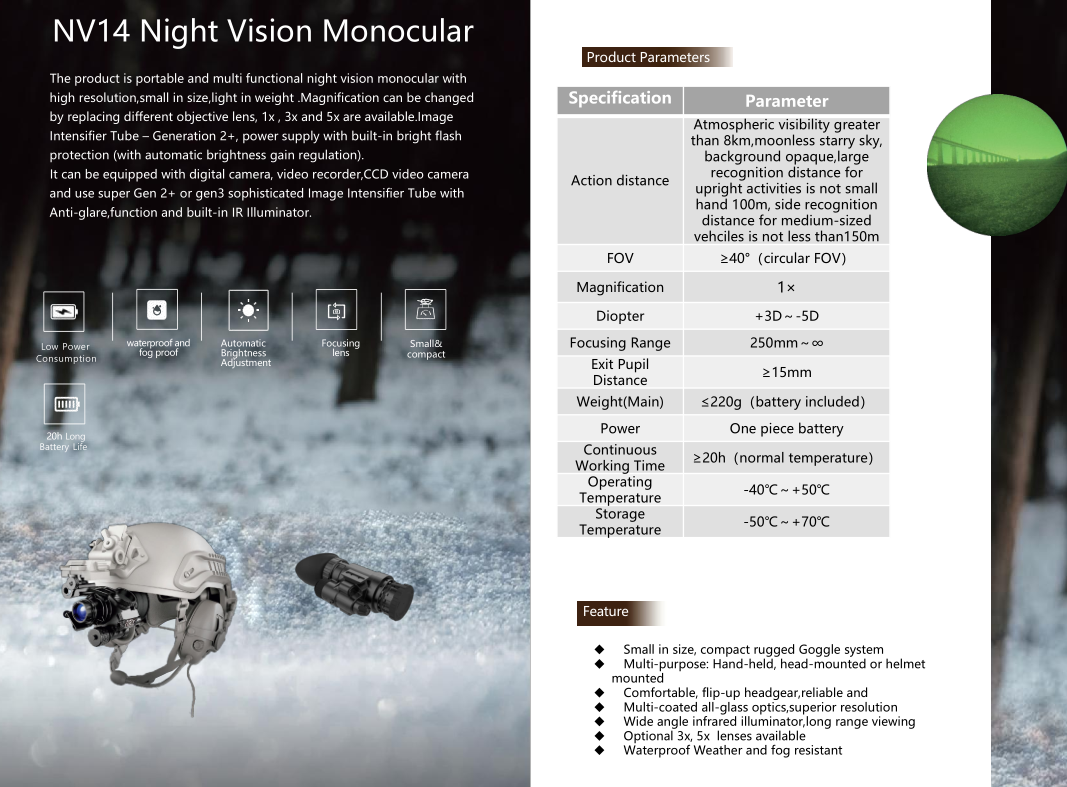

NV14 Night Vision Monocular Parameters

Specification Parameters
Action distance Atmospheric visibility greater than 8km,moonless starry sky. background opaque,large recognition distance for upright activities is not small hand 100m, side recognition distance for medium-sized vehciles is not less than150m
FOV ≥40° (circular FOV)
Magnification 1x
Diopter +3D~-5D
Focusing Range 250mm~ 00
Exit Pupil Distance >15mm
Weight(Main) ≤220g (battery included)
Power One piece battery
Continuous Working Time ≥20h (normal temperature)
Operating Temperature -40°C~ +50²C
Storage Temperature -50°C~+70℃

NV14 Night Vision Monocular
