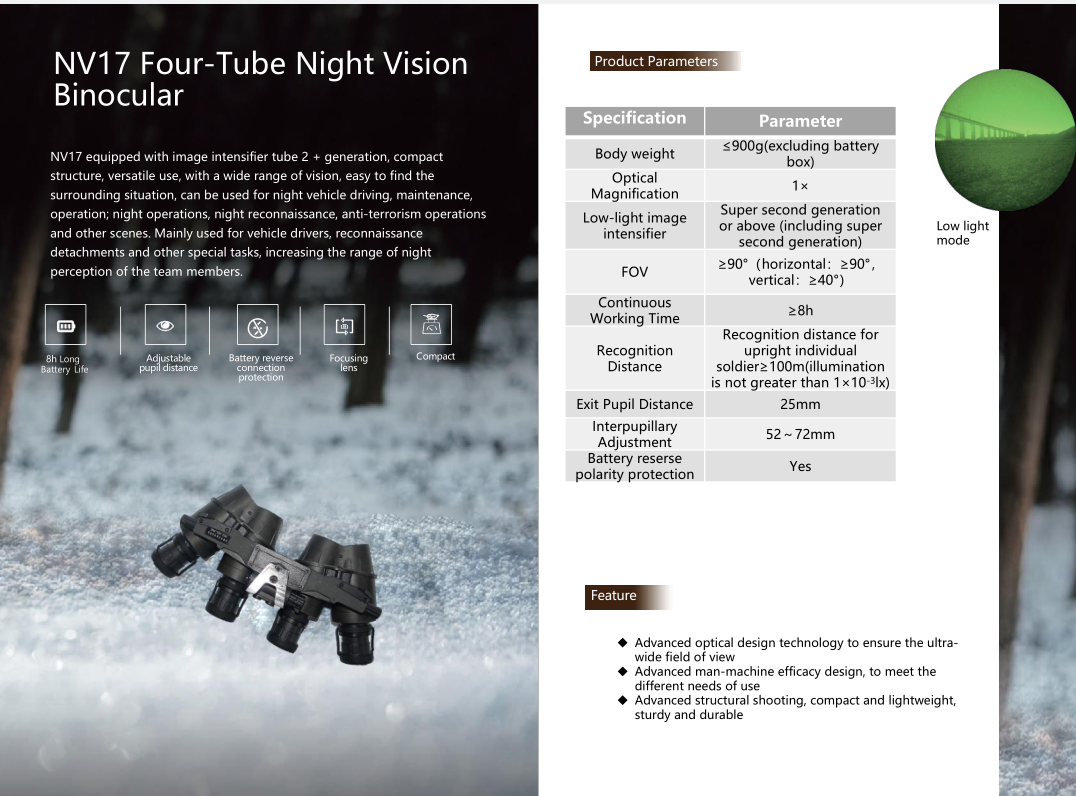

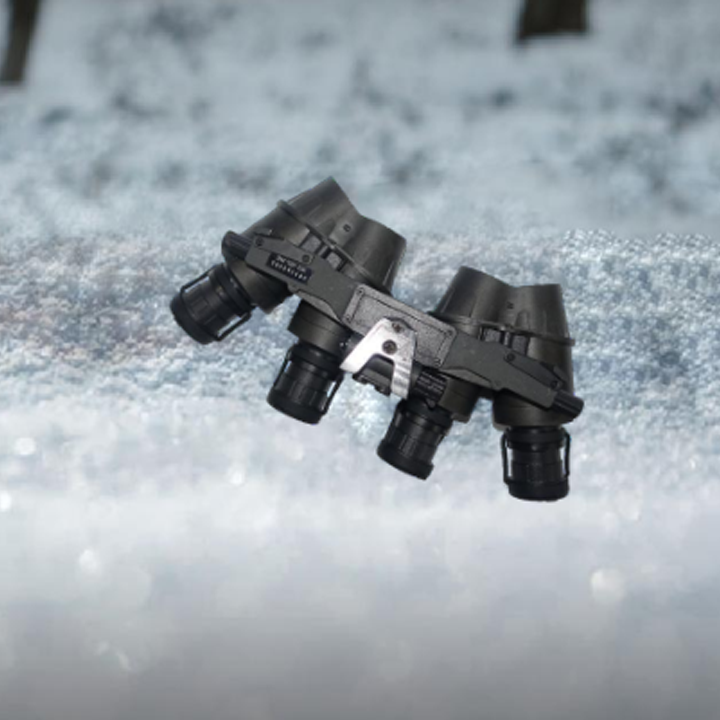

NV17 Four-Tube Night Vision Binocular

NV17 equipped with image intensifier tube 2 + generation, compact structure, versatile use, with a wide range of vision, easy to find the surrounding situation, can be used for night vehicle driving, maintenance, operation; night operations, night reconnaissance, anti-terrorism operations and other scenes. Mainly used for vehicle drivers, reconnaissance detachments and other special tasks, increasing the range of night perception of the team members.

Categories: ,
Description

NV17 Four-Tube Night Vision Binocular Features

Advanced optical design technology to ensure the ultra-wide field of view
Advanced man-machine efficacy design, to meet the different needs of use
Advanced structural shooting, compact and lightweight, sturdy and durable

NV17 Four-Tube Night Vision Binocular Parameters

Specification Parameter
Body weight <900g(excluding battery box)
Optical Magnification 1x
Low-light image intensifier Super second generation or above (including super second generation)
FOV ≥90° (horizontal: ≥90°, vertical: ≥40°)
Continuous Working Time ≥8h
Recognition Distance Recognition distance for upright individual soldier≥100m(illumination is not greater than 1×10-3Ix)
Exit Pupil Distance 25mm
Interpupillary Adjustment 52~72mm
Battery reserse polarity protection Yes

NV17 Four-Tube Night Vision Binocular

Related products

China Moneypro ME210 – 5KG-Class Vehicle-Mounted Photoelectric Search and Tracking Ball

China Moneypro ME210 is a lightweight, vehicle-mounted photoelectric search and tracking ball, integrating advanced optical, mechanical, and electrical design to reduce weight without sacrificing performance. Designed for stability, adaptability, and intelligent operation, the ME210 provides high-precision tracking and stable imagery in diverse environments. With AI-enabled target recognition, anti-shake stabilization, and multi-environment adaptability, it is ideal for real-time surveillance, reconnaissance, and tracking missions.

Image Processing Module

The product adopts high-performance image processing chip, can enough to acquire multi-channel camera data, realize communication, transmission, video decoding, video switching, video display control and other functions. The image processing board is interconnected with the display unit, and based on the display unit, it realizes the system's man-machine Interaction and image delivery and split display switching functions. It is mainly used in photoelectric pod, photoelectric turret, Multi-spectrum optoelectronic systems such as optical pods, optical turrets, vehicle driving aids, etc. It is mainly used for image acquisition, processing and transmission of multi-spectrum optoelectronic system integration such as optoelectronic pods, optoelectronic turrets and vehicle assisted driving.

NV15 Two-Tube Night Vision Binocular

It uses a Gen 2+ image intensifier tube and is a professional-grade portable night vision goggle that can be mounted on a military helmet, a portable headset stand, or handheld. It has the characteristics of high resolution, small size, low power consumption and light weight, and is suitable for night reconnaissance, combat, driving, reading, maintenance and support operations.

M1200 Eye-Safe Laser Rangefinder Module

This module, which is based on a 905nm semiconductor laser, is specifically made for systems that have stringent weight and size constraints. We focus on developing multi-pulse rangefinding algorithms using reliable and well-established semiconductor lasers, as well as specially made reception detectors and a high-performance optical system. This has made it possible to develop a cutting-edge, market-leading tiny laser rangefinder module that may be used in a wide range of industries.

Turing M256 Uncooled Infrared Module

The Turing M256 uncooled infrared module utilizes an advanced 256×192 wafer detector, offering compact dimensions, lightweight design, and low power consumption while fully complying with SWaP³ requirements.
  • Split assembly design enables flexible deployment in diverse applications.
  • Comprehensive auxiliary tools support multiple ARM-based SOC platforms, ensuring seamless integration and ease of development.
  • Dual-output capability: Simultaneous thermal imaging and temperature data output.
Versatile compatibility: Works with lightweight infrared lenses and extension components.

Uncooled Infrared Movement Components

384/640resolution,12microns,miniature,compact and standard series. Support a variety of communication protocols and video output formats, which are used for helmet night vision equipment, manned/unmanned aircraft pods, gun sights, hand-held observation equipment, vehicle-mounted photoelectric environment perception and other product requirements.

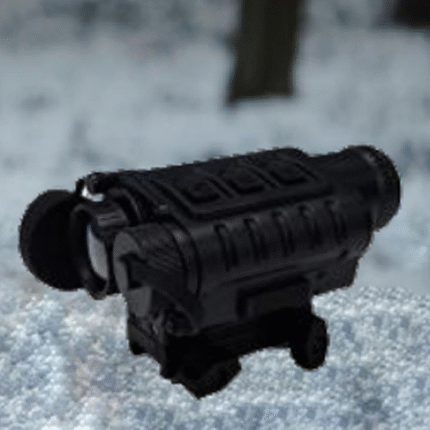

MTS625Miniature multipurpose infrared thermal imaging fast scope
