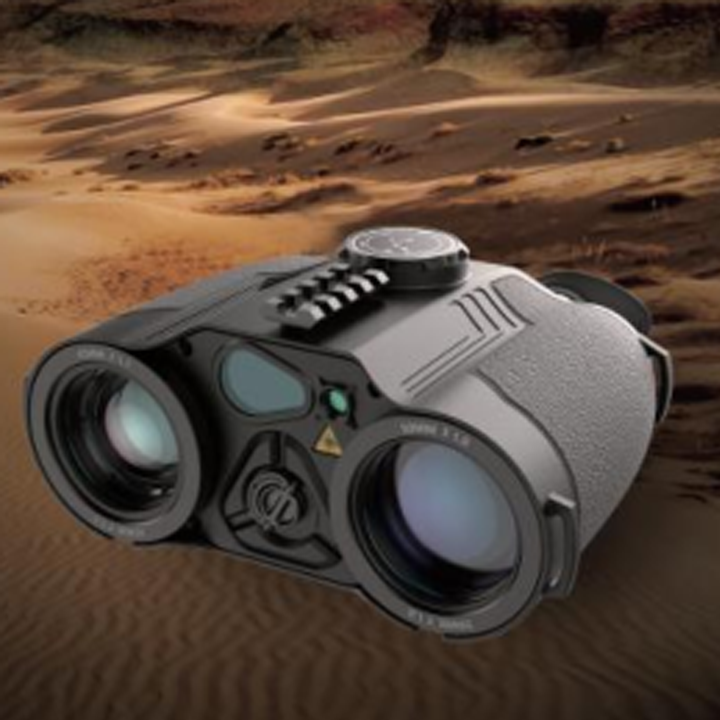

TF02 Infrared Fusion Telescope

The TF02 is an HD fusion binocular telescope with four optical channels catering to full-time observation day and night, rangefinding, and geo-location. The product is lightweight and portable, providing users with unprecedented situational awareness.LightWeight, the product has a battery life of up to 8 hours.

Categories: ,
Description

TF02 Infrared Fusion Telescope Features

High performance optoelectronic devices
Advanced fusion algorithms for superior imaging
Highly integrated design, compact and portable
Meets the requirements for use in harsh environments

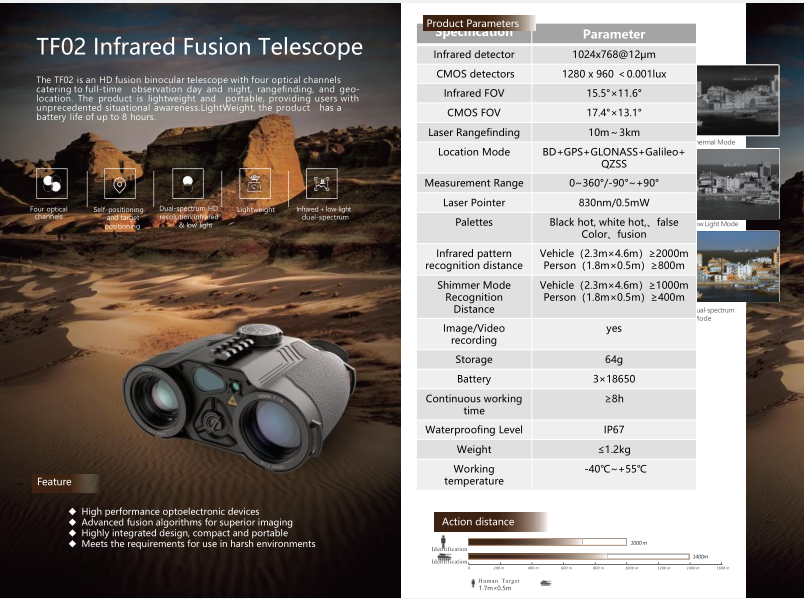

TF02 Infrared Fusion Telescope Parameters

Specification Parameter
Infrared detector 1024×768@12μm
CMOS detectors 1280 x 960 < 0.001lux
Infrared FOV 15.5°x11.6°
CMOS FOV 17.4°x13.1°
Laser Rangefinding 10m~3km
Location Mode BD+GPS+GLONASS+Galileo+QZSS
Measurement Range 0~360°/-90°~+90°
Laser Pointer 830nm/0.5mW
Palettes Black hot, white hot,、 false Color、fusion
Infrared pattern recognition distance Vehicle (2.3mx4.6m) ≥2000m
Person (1.8mx0.5m) ≥800m
Shimmer Mode Recognition Distance Vehicle (2.3mx4.6m) ≥1000m
Person (1.8mx0.5m) ≥400m
Image/Video recording yes
Storage 64g
Battery 3×18650
Continuous Working time ≥8h
Waterproofing Level IP67
Weight ≤1.2kg
Working temperature -40°C~+55°C

TF02 Infrared Fusion Telescope
