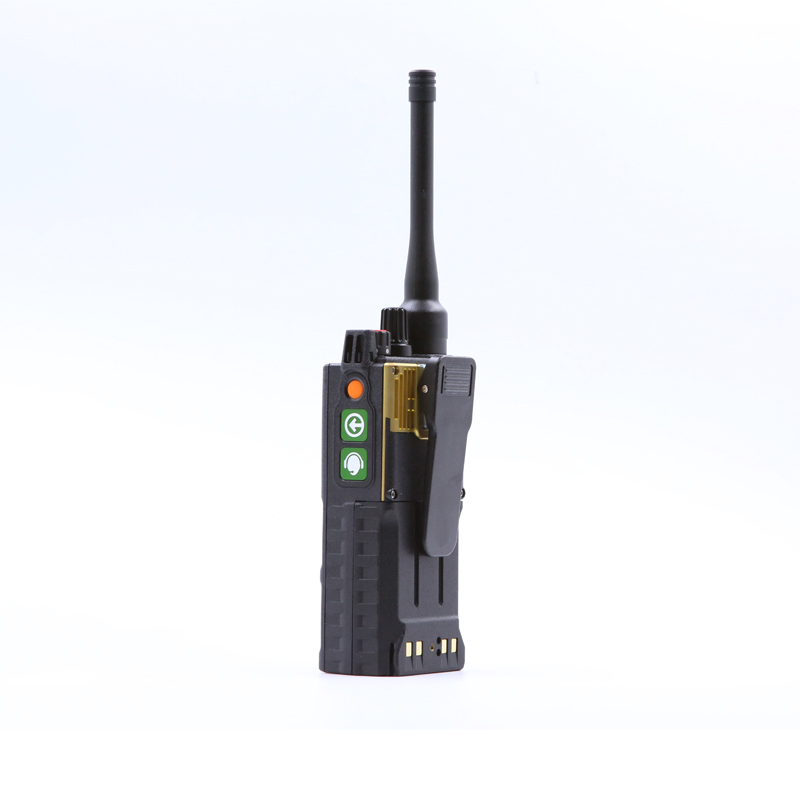

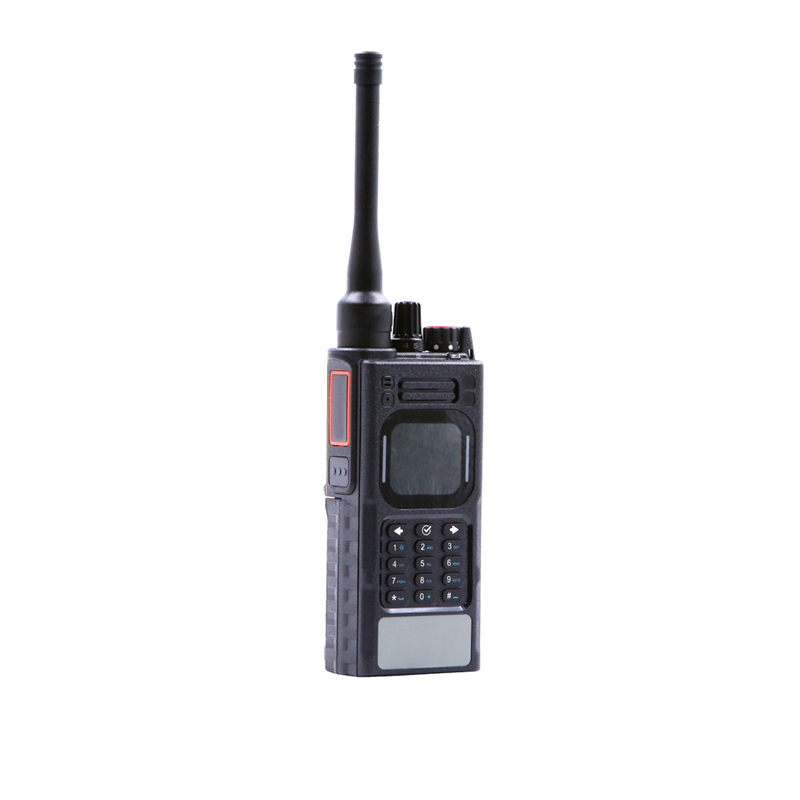

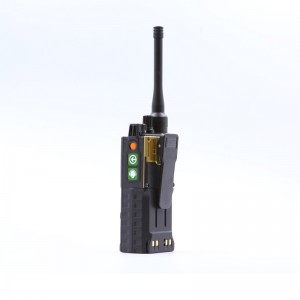

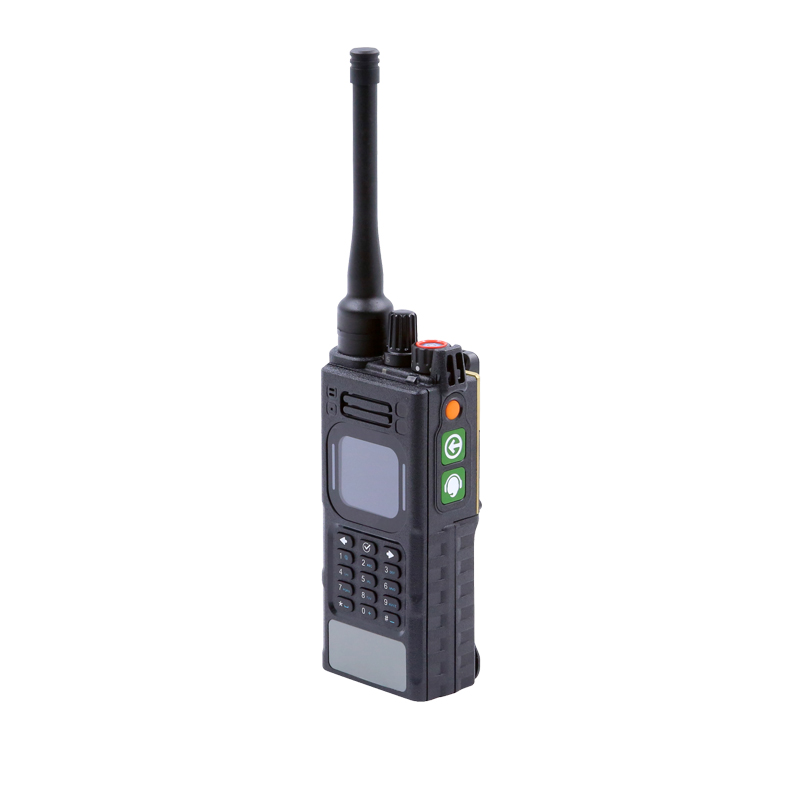

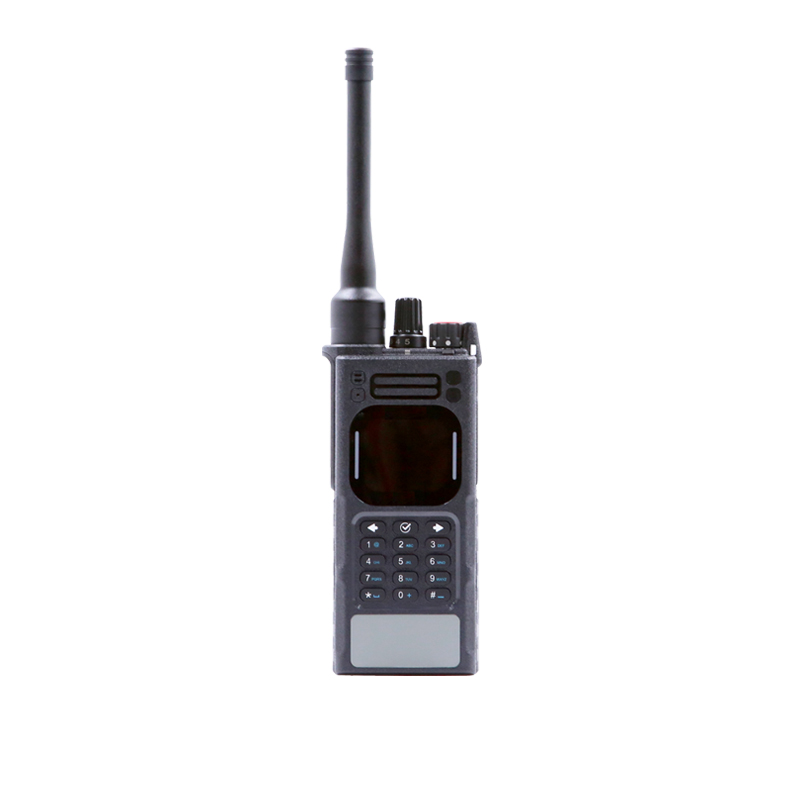

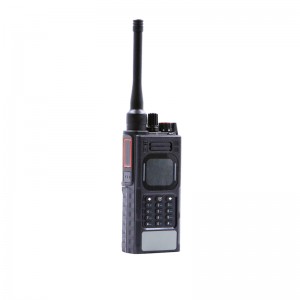

China Moneypro Handheld PTT MESH Radio Base Station

Features

Long-Range Communication

• Built on an ad-hoc network supporting up to 6 hops.

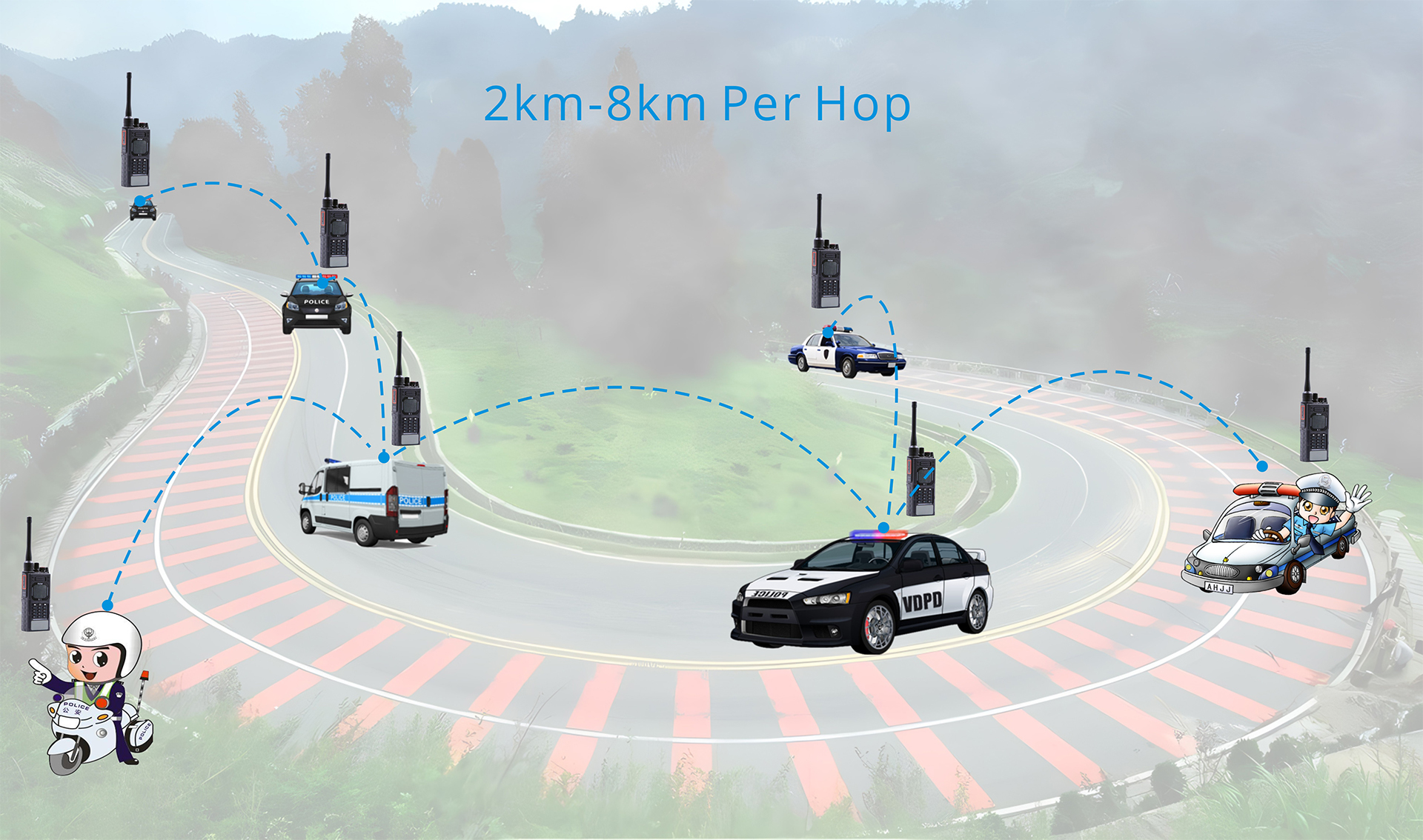

• Multiple TS1 units can form a multi-hop system, with each hop covering 2–8 km.

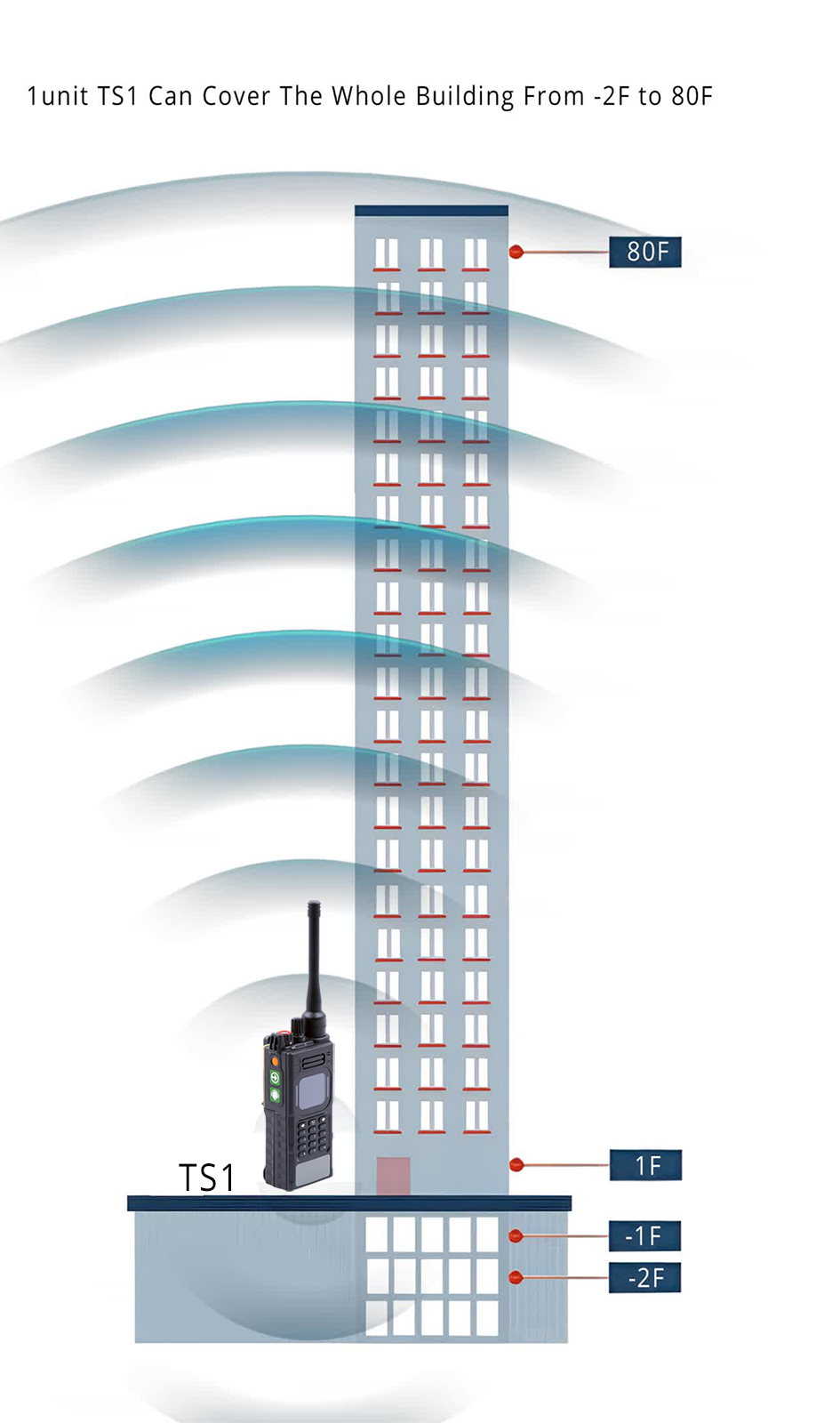

• A single TS1 unit can provide coverage across an entire building—from basement levels up to 80 floors—excluding elevator cabins.

Cross-Platform Connectivity

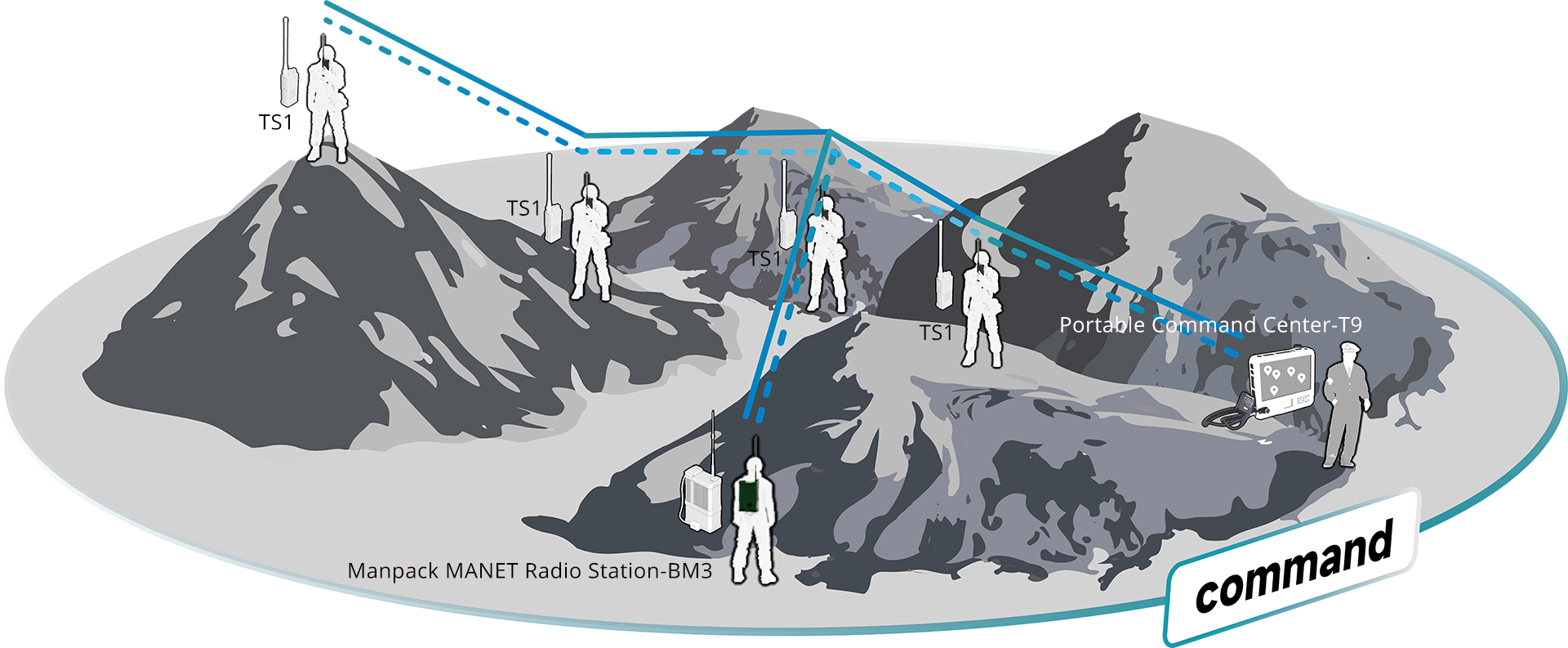

• IWAVE delivers a complete MANET radio solution, including on-site command centers, solar-powered base stations, portable terminals, airborne MANET stations, and manpack units—tailored for diverse operational needs.
• TS1 seamlessly integrates with all existing IWAVE MANET radios, command centers, and base stations. This enables ground personnel to automatically connect with manned and unmanned vehicles, UAVs, maritime assets, and infrastructure nodes—creating a resilient, unified network.





How PTT Mesh Radio Works: Seamless, Resilient Communication

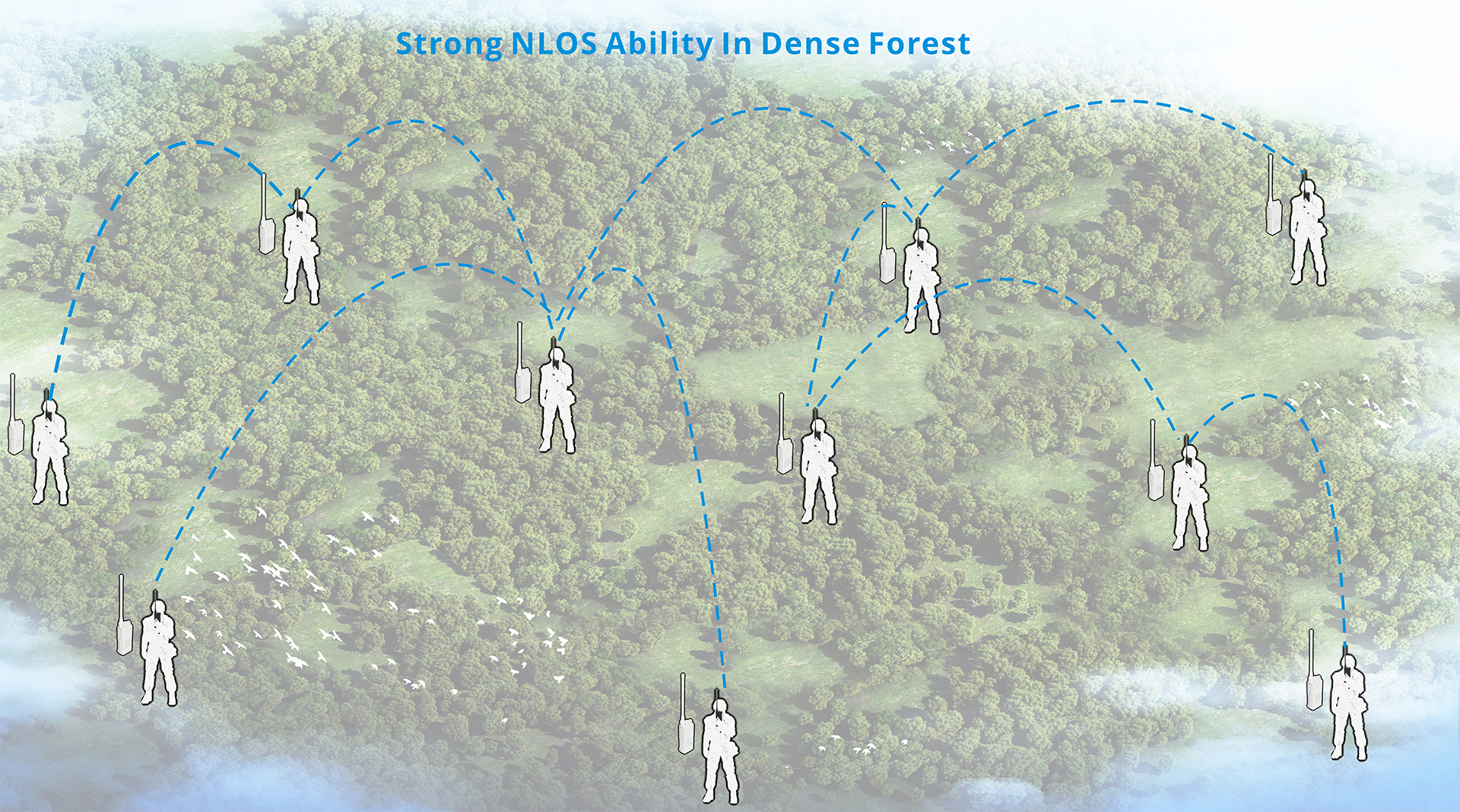

PTT Mesh Radio creates a dynamic, self-forming network where multiple TS1 devices communicate directly with each other—without relying on fixed infrastructure. Here’s how it delivers reliable, instant communication:

Key Principles:

• Multi-Hop Communication: Each TS1 unit acts as both a radio and a repeater, passing voice and data from one device to another until it reaches its destination.
• Self-Healing Network: If one path is blocked or a device goes offline, the network instantly reroutes transmissions through the best available alternative.
• Push-to-Talk Simplicity: Just press the PTT button—your voice or data is automatically sent through the most efficient route across the mesh.

Ad-Hoc Mesh Network Features

Flexible & Scalable

• Unlimited Nodes: Use as many TS1 devices as needed—the network grows with your team.
• Dynamic Connectivity: Devices can join, leave, or move freely; the network reorganizes itself in real time.
• Self-Organizing: No central control required. Each device establishes connections autonomously.

High-Capacity Configurations

• 12.5 kHz Carrier: Supports 2 hops on 2 channels, or 4 hops on 1 channel.
• 25 kHz Carrier: Enables advanced setups like 2 hops/3 channels, 3 hops/2 channels, or 6 hops/1 channel.
• Low Latency: Less than 30 ms delay per hop for near-instant communication.

Smart Network Management

• Automatic Synchronization: Syncs with network time and GPS for precision.
• Intelligent Signal Selection: Automatically connects to the strongest available base station.
• Seamless Roaming: Move between coverage areas without dropping calls.
• Rich Calling Features: Individual, group, and all-call options, plus priority interrupt.

Built-In Safety & Emergency Capabilities

Personal Protection

• Man-Down Detection: Automatically alerts if a user is motionless.
• Emergency Button: Instant alert with open microphone for situational awareness.
• Direct Command Center Call: One-touch emergency communication.

Enhanced Locating & Search

• Live Position Tracking: See the caller’s distance and direction during a call.
• Indoor Radio Location: Quickly find a missing device indoors.
• Emergency Power Boost: Optional 20W high-power mode for extended range in critical situations.

Why It’s Reliable:

The mesh design ensures continuous operation even in challenging environments. Whether for day-to-day operations or emergency response, PTT Mesh Radio provides robust, adaptable, and immediate communication—anytime, anywhere.Let me know if you’d like this tailored for a specific audience or formatted for a brochure, website, or presentation.
