- Built-in Integration
Control, telemetry, and payload data combined with real-time video transmission—all in a single RF channel. - Optimized for Long-Range Video
Stream full 1080P HD video up to 22 km with an embedded bi-directional data link. - Compact & Lightweight Design
Miniature size and low weight make it ideal for demanding, high-use applications.
Let me know if you’d like this tailored for a specific audience, such as a product webpage, brochure, or technical datasheet.
Enhanced Transmission System: Unmatched Performance & Reliability
Flexible & Powerful Connectivity
- Adjustable Bandwidth: Switch seamlessly between 4MHz and 8MHz transmission frequencies.
- Universal Compatibility: Works with a wide range of flight controllers and mission-planning software.
- Dual Serial Ports: Enable simultaneous, bi-directional data flow.
- Multi-Protocol Support: Fully compatible with TCP, UDP, TTL, RS232, and MAVLINK telemetry.
Built Tough for Demanding Environments

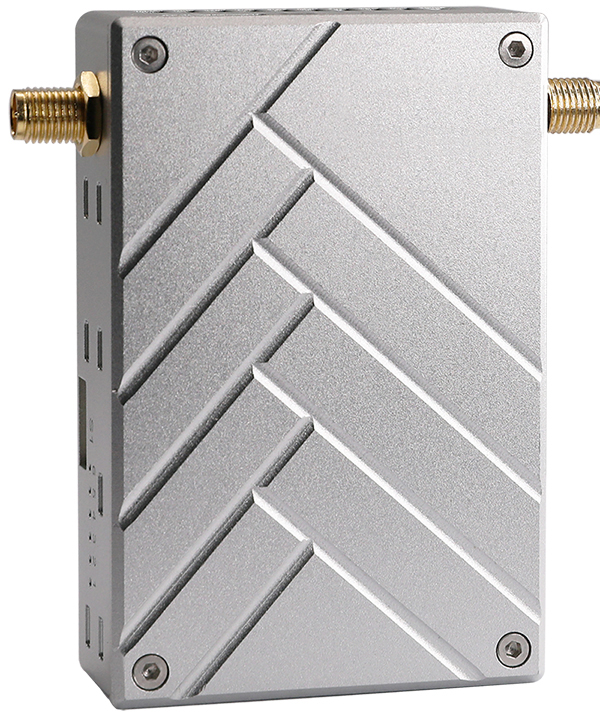

- Rugged Design: Features a conductive anodized, CNC-machined double aluminum alloy shell for superior durability and impact resistance.

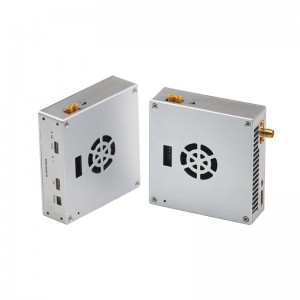

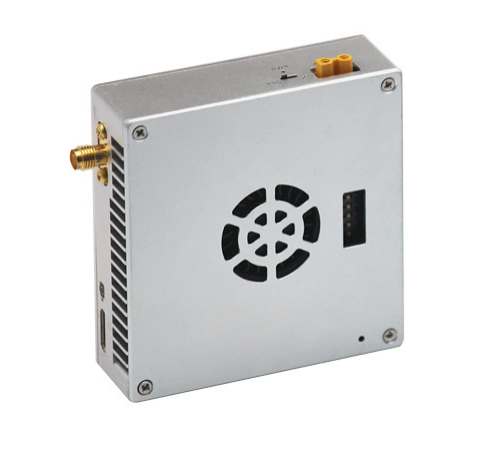

- Active Cooling: Dual integrated fans ensure optimal thermal management during extended operation.
Advanced COFDM Technology
- Coded Orthogonal Frequency Division Multiplexing (COFDM) effectively eliminates multipath interference, solves efficiency challenges, and dramatically improves transmission reliability.
Ultra-Low Latency Video & Data
- End-to-End Latency: Less than 33ms from transmitter to receiver.
- High-Efficiency Encoding: Uses CABAC entropy encoding and a high compression rate to deliver excellent video quality even at low bitrates.
- Consistent Frame Encoding: Each frame is encoded to a uniform size, preventing delays caused by large data spikes.
- Lightning-Fast Processing: Ultra-rapid decoding for immediate display output.
Long-Range, Stable Communication
- Optimized RF Performance: Combines advanced modulation, Forward Error Correction (FEC) algorithms, a high-performance Power Amplifier (PA), and an ultra-sensitive receiver module to maintain a robust and long-range wireless link between air and ground units.
Extreme Environment Ready
- Wide Operating Temperature: Functions reliably in temperatures from -40℃ to +85℃.
- Industrial-Grade Components: All chips and electronics are specially selected to meet rigorous industrial standards, ensuring performance in the harshest conditions.
Here’s a revised version for improved clarity and engagement:

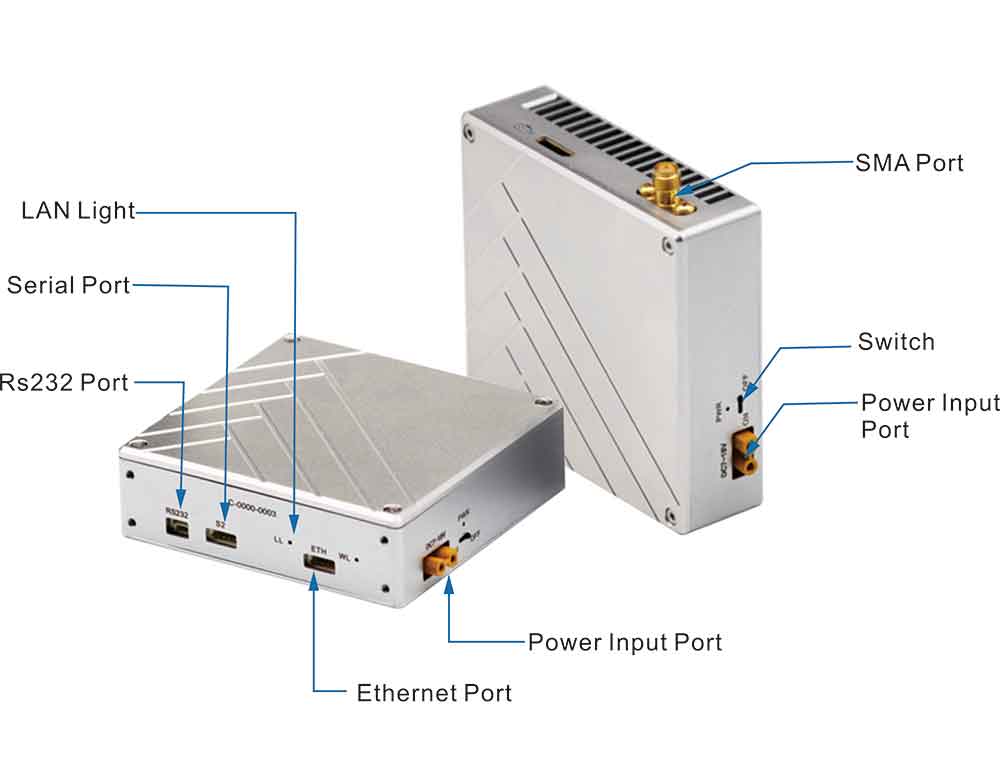

Versatile Connectivity Options
The FIP-2420 features multiple communication ports to support diverse networking needs:
- RJ45 and TTL Serial Ports for bi-directional serial communication
- RS232 Port for reliable industrial connectivity
This model enables wireless transmission of both serial and Ethernet data using standard TCP/IP/UDP protocols. Additionally, its SMA Port allows for direct antenna or feeder cable connections, ensuring flexible deployment options.
Key improvements:
- Clearer structure with bullet points for readability
- More active and engaging language
- Better technical flow from ports to functionality
- Professional yet accessible tone
- Elimination of grammatical issues (“can wireless transmit” → “enables wireless transmission”)

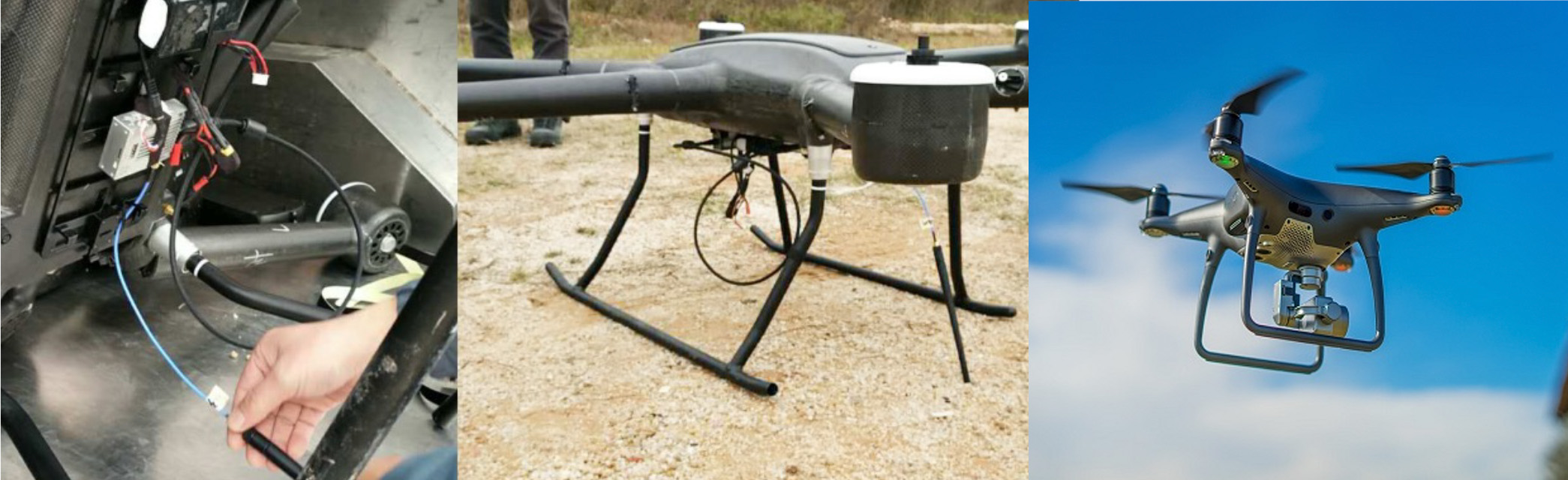

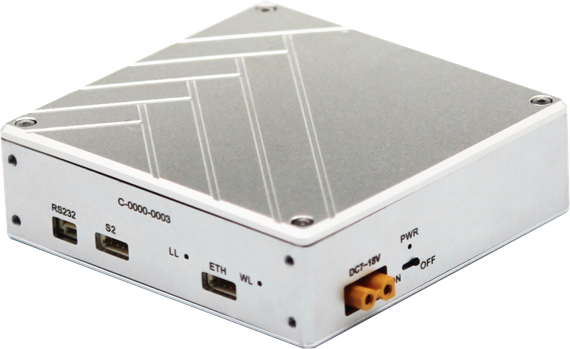

Introducing the FIP2420: High-Reliability Drone Video Transmission The FIP2420 is a powerful, bi-directional Ethernet video transmitter engineered for long-range drone and UAV operations. Built for reliability in demanding conditions, it delivers robust, real-time video and data transmission—ideal for unmanned aerial (UAV) and ground vehicles (UGV), long-range wireless telemetry, and mission-critical secure applications.
| Frequency | 2.4GHz (2.402-2.482GHz) 2.3Ghz(2304Mhz-2390Mhz) |
| RF Transmitting Power | 33dBm(air to ground 18-22km) |
| Frequency Bandwidth | 4/8MHz |
| Antenna | 1T1R |
| Adjust bit rate | Software adjustment |
| Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Link rebuilt time | ＜1s |
| Error Detection | LDPC FEC |
| Serial Data | TTL: 0-3.3v |
| RS232: ±13V | |
| Ethernet | Support TCP/IP/UDP |
| Transmission Rate | 3/6Mbps |
| Sensitivity | -100dbm@4Mhz |
|
|
-95dbm@8Mhz |
| Antenna | 1T1R(Omni Antenna) |
| Power | DC7-18V(DC12V Suggested) |
| Power Consumption | TX: 16Watts |
|
|
RX: 5Watts |
| Temperature | Operating temperature: -40 – +85°C |
| Storage temperature: -55 – +85°C | |
| Interface | Power input interface × 1 |
|
|
Antenna interface × 1 |
|
|
TTL Bidirectional Port × 2 |
|
|
RS232 Interface x 1(TTL and RS232 can not be used at same time) |
|
|
Ethernet Port x1 |
| Indicator | Power indicator light |
| Connection Status Indicator(4, 5, 6) | |
| Signal Strength Indicator(1, 2, 3) | |
| Metal Case Design | CNC technology |
| Double aluminum alloy shell | |
| Conductive anodizing craft | |
| Size | TX: 76.4×72.9×22.5mm |
|
Weight |
TX: 120g |
| Rx: 120g |
