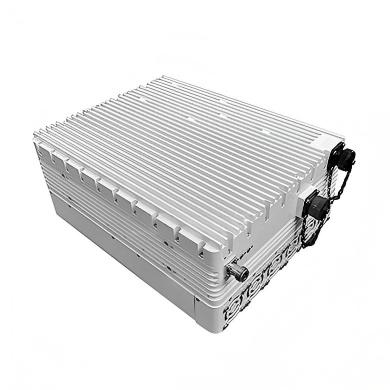

Unleashing the Power of Ku-Band: The 400W GaN Solid-State Amplifier
nn
Are you tired of dealing with insufficient power and poor environmental adaptability in your satellite communications? Look no further. The Ku-band 400W GaN solid-state amplifier (SSPA) and block upconverter (BUC) from MOP Tech is engineered to solve these persistent communication challenges. This powerhouse delivers exceptional performance, combining high output with outstanding reliability, ensuring your signals remain stable and efficient, even under the most demanding conditions. With a linear power of 200W and a saturated power reaching 400W, this amplifier effortlessly handles long-distance transmission and complex signal coverage, making it an ideal solution for a wide range of satellite communication applications.
nn
Superior Performance and Energy Efficiency
nn
This Ku-band 400W GaN solid-state amplifier is not just about raw power; it also excels in efficiency. When outputting 200W of linear power, the AC power consumption is a mere 1450W, offering significant energy savings and reducing operational costs. This balance of high output and low power draw makes it a smart, cost-effective choice for both fixed and mobile deployments. The gallium nitride (GaN) technology ensures superior linearity and thermal management, so you can count on consistent performance without compromising on energy use.
nn
Design and Environmental Adaptability
nn
The amplifier is built for real-world conditions. Its compact design, weighing just 58 pounds and measuring 8.0 x 14.0 x 19.0 inches, ensures easy installation and portability. This compact footprint allows for perfect integration into fixed base stations or mobile terminals. But what truly sets it apart is its exceptional environmental resilience. Operating reliably in extreme temperatures from -40°C to +60°C and meeting MIL-STD-810 standards, this Ku-band 400W GaN solid-state amplifier is built to withstand harsh conditions, from deserts to arctic environments. It will not fail when you need it most.
nn
Flexible Configuration and Remote Management
nn
Flexibility is a key feature of this product. It offers optional frequency bands of 12.75 – 13.25 GHz or 13.75 – 14.5 GHz, allowing you to tailor it to your specific requirements. The OpenBMIP Ethernet option enables convenient remote control and management, so you can monitor and adjust parameters from anywhere. With rich interface options including Ethernet, RS-422, RS-485, and Serial RS-232 (with optional SNMP), this amplifier seamlessly integrates with a variety of systems, ensuring a smooth and efficient workflow.
nn
Technical Specifications: Ku-band 400W GaN Solid-State Amplifier
nn
| Parameter | Value |
|---|---|
| Frequency and Input Levels | |
| Output Frequency | 13.75 to 14.5 GHz / 12.75 to 13.25 GHz |
| Input Level, No Damage | +10 dBm max |
| Input Impedance | 50 ohms |
| Input Frequency (with optional BUC) | 950 to 1450 MHz or 950 to 1700 MHz |
| LO Reference Frequency (with optional BUC) | External 10 MHz |
| LO Reference Level (with optional BUC) | +2 dBm ± 5 dB |
| Output RF Power and Linearity | |
| Eq. Saturated Power, PSAT | 400W (56 dBm) |
| Maximum CW Power, PMAX | 300W (54.8 dBm) |
| Linear Power, PLIN (min) | 200W (53 dBm) |
| Spectral Regrowth @ PLIN | -26 dBc with optional linearizer -30 dBc |
| Intermodulation Products @ PLIN wrt sum of 2 equal carriers | -25 dBc |
| AM to PM Conversion @ PLIN | 2.0°/dB max |
| Gain | |
| Small Signal (typical) | 70 dB |
| Gain Attenuation Range | 25 dB, 0.1 dB steps |
| Gain Variation (over any 1 GHz) | 1.0 dB p-p max |
| Gain Variation (over full band) | 3.0 dB p-p max |
| Gain Slope (max) | 0.04 dB/MHz |
| Gain Stability, over 24 hours | 0.5 dB p-p max |
| Gain Variation over Temp | 4.0 dB p-p max |
| Noise and Spurious | |
| Noise Power Transmit Band | -75 dBW/4 kHz |
| Noise Power Receive Band | -150 dBW/4 kHz |
| AC Line Spurious sum of all spurs | -30 dBc single sideband sum -36 dBc |
| Harmonics | -60 dBc |
| Output Spurious @ PLIN (excludes 1 MHz band) | -60 dBc |
| Phase Noise | |
| Phase Noise (max) 100 Hz | -63 dBc/Hz |
| Phase Noise (max) 1 kHz | -73 dBc/Hz |
| Phase Noise (max) 10 kHz | -83 dBc/Hz |
| Phase Noise (max) 100 kHz | -93 dBc/Hz |
| Phase Noise (max) 1 MHz | -103 dBc/Hz |
| Reference Phase Noise (max) 10 Hz | -125 dBc/Hz |
| Reference Phase Noise (max) 100 Hz | -155 dBc/Hz |
| Reference Phase Noise (max) 1 kHz | -165 dBc/Hz |
| Phase Linearity and VSWR | |
| Transmit Phase Linearity up to PLIN over any 2 MHz | ±0.2 radian |
| Transmit Phase Linearity over any 36 MHz | ±0.4 radian |
| Transmit Phase Linearity over any 72 MHz | ±0.5 radian |
| Transmit Phase Linearity over any 90 MHz | ±0.6 radian |
| Transmit Phase Linearity over any 120 MHz | ±0.7 radian |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.3:1 |
| Prime Power/Environment/Interfaces | |
| Prime Power | 90-264 VAC, 1450 @ PLIN |
| Operating Temp Range | -40° to +60°C |
| Non-Operating Temp Range | -50° to +70°C |
| Altitude (max) | 12,000 ft. MSL |
| Humidity | 100% condensing |
| Shock/Vibration | Normal transportation |
| M&C Interface | Ethernet/RS-422/RS-485 and Serial RS-232 (Optional SNMP) |
| Weight and Dimensions | |
| Weight | 26.3 kg (58 lbs) |
| Dimensions | 20.3 cm x 36.6 cm x 48.3 cm (8.0 x 14.0 x 19.0 in) |
nn
Empower Your Communication with the Ku-band 400W GaN Solid-State Amplifier
nn
Don’t wait any longer. Choose this 400W Ku-band gallium nitride solid-state amplifier/block upconverter to inject powerful, reliable power into your satellite communication system. This Ku-band 400W GaN solid-state amplifier ushers in a new era of efficient communication, ensuring your signals are strong, clean, and dependable. Whether for critical data links, remote broadcasts, or robust network backhaul, this amplifier delivers the performance and durability you require. Upgrade your system today and experience the difference that cutting-edge GaN technology can make.
