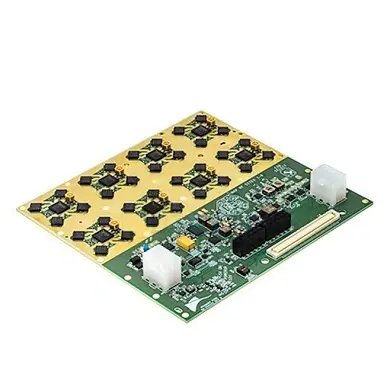

Unlocking Precision and Value: The Cost-Effective X-Band Phased Array Antenna
nnIn the rapidly evolving world of radar and communication systems, finding a balance between high performance and budget constraints is often a significant challenge. The X-band phased array antenna emerges as a compelling solution, designed specifically for applications where core functionality and affordability are paramount. This innovative product offers wide application potential across radar systems, communication links, and other specialized fields, all while maintaining a remarkably low cost. By operating in the critical X-band frequency range, it delivers the precision and reliability needed for modern sensing and connectivity tasks without the financial burden of custom, high-end solutions.nn
Core Technical Architecture and Performance
nnThe antenna is engineered to provide robust performance in a compact, easy-to-integrate form factor. Its design focuses on reducing signal interference and ensuring data accuracy, making it an ideal choice for both stationary and mobile platforms.nn
Frequency, Polarization, and Scanning Flexibility
nnOperating within the X-band spectrum of 9.2 GHz to 9.8 GHz, this antenna utilizes vertical polarization. This design choice effectively mitigates unwanted signal interference, ensuring clear and accurate communication and detection. One of its standout features is the impressive scanning range of ±55° in both azimuth and elevation. This wide coverage, combined with a beam switching time of ≥20 µs, allows the system to rapidly capture and track moving targets with exceptional agility.nn
Signal Quality and Interference Rejection
nnTo maintain high signal integrity, the antenna boasts a 60 dB image suppression capability. This feature significantly reduces the impact of clutter and spurious signals, thereby enhancing overall signal quality. Furthermore, the beam pointing accuracy reaches 1 degree, with a beamwidth of approximately 7 degrees (typically ranging from 6.8 to 7.2 degrees). This precision enables accurate target localization, crucial for both radar tracking and directional communication.nn
Receiver Performance and Dynamic Range
nnThe underlying receiver electronics are designed to handle a wide variety of signal environments. With a dynamic range of 60 dB, the system can adapt to both weak and strong signal inputs without distortion. The noise figure of ≥3.5 dB ensures effective reception even in weak signal environments, while the AGC (Automatic Gain Control) range of 60 dB provides consistent output levels across varying conditions. These combined features ensure that the X-band phased array antenna delivers reliable performance in real-world scenarios.nn
Detailed Specifications and Data Integrity
nnTo provide complete transparency and technical clarity, all relevant product specifications are outlined below. This structured data ensures that engineers and system integrators have the precise parameters needed for design and deployment.nn
| Parameter | Value |
|---|---|
| Frequency | X band (9.2 GHz – 9.8 GHz) |
| Polarization | Linear (Vertical) |
| Scan Range | ±55° (Azimuth & Elevation) |
| Beam Switching Time | ≥ 20 µs |
| Image Rejection | 60 dBc |
| In-Band Flatness | ≥ 2 dB (in RF Amplitude) |
| Max Instantaneous Bandwidth | 50 MHz |
| Element Power | 27 dBm (±0.5 dB) |
| Beam Pointing Accuracy | 1 degree |
| Monopulse Channel Isolation | ≥ 40 dB |
| Receiver Dynamic Range | 60 dB |
| Phase Consistency | ≥ 3 degrees (±3°) |
| AGC Control Range | 60 dB |
| Amplitude Consistency | ≥ 1 dB |
| Noise Figure | ≥ 3.5 dB |
| Beamwidth (Az & El) | About 7 degrees (6.8 – 7.2) |
| IF Bandwidth | 20 MHz |
| IF Channel Outputs | 3 |
| Null Depth | ≥ 30 dB |
| Elevation Difference Level in Azimuth Difference Channel (and vice versa) | ≥ 40 dB |
| Max SUM Channel Level vs Max Cross Channel Level | 3 dB (±1 dB) |
| Cross Polarization | 30 dB |
| Delta vs SUM SLL Difference (in ±1.5 Beamwidth) | Positive |
| Receiver Gain | 60 dB (±10 dB) |
| Spurious Level | -60 dBc |
| Pulse Width | 0.3 µs – 200 µs |
nn
Practical Considerations and Scalability
nnWhile the X-band phased array antenna delivers impressive performance for its price point, it is essential to understand its design philosophy. This product is a low-cost solution tailored for standard applications. For users with higher performance demands—such as superior phase consistency, lower noise figures, or a need for full compliance across all specifications—customized development is available. It is important to note that such enhancements will incur additional costs. However, for the vast majority of use cases, this antenna provides an economical and practical choice, effectively meeting core performance requirements while keeping budgets under control.nn
Integration and Installation Benefits
nnThe antenna’s compact size and structural simplicity facilitate easy integration into existing systems or new builds. Its robust design ensures reliable operation in various environmental conditions, further solidifying its role as a versatile component for communication and radar applications.nn
Conclusion: Balancing Performance and Affordability
nnIn summary, the X-band phased array antenna stands out as a cost-effective product that does not compromise on essential capabilities. Its wide scanning range, rapid beam switching, and robust signal handling make it an excellent choice for a variety of radar and communication fields. By delivering reliable performance at a fraction of the cost of premium systems, it empowers engineers and system designers to build effective solutions without breaking the budget. Whether for specialized detection tasks or reliable data links, this X-band phased array antenna offers a practical path to achieving project goals with confidence.
