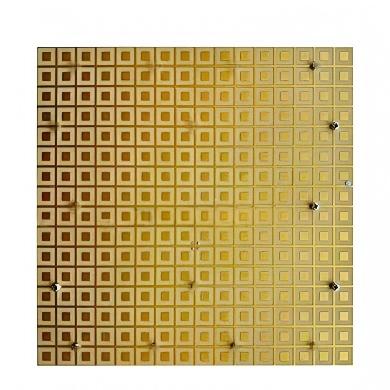

Unlocking Next-Generation Communication with the Ku-Band Receiving Phased Array Antenna
n
In the fast-evolving landscape of modern communication and radar systems, the demand for high-performance antenna solutions has never been more critical. Enter the Ku-band receiving phased array antenna, a standout innovation that marries superior technical specifications with versatile functionality. This advanced system redefines signal reception, offering unparalleled reliability and adaptability for applications ranging from satellite communications to defense radar. Whether you’re an engineer seeking robust performance or a decision-maker evaluating cutting-edge technology, this antenna delivers a compelling edge in a competitive field.
n
The core of this antenna’s prowess lies in its integrated advanced technologies, which ensure exceptional performance even under demanding conditions. By leveraging active two-dimensional scanning beamforming technology, it seamlessly combines antenna elements, beam control, and beam synthesis into a unified architecture. This integration enables efficient, coordinated signal processing through precise phase and amplitude adjustments across individual elements. As a result, the antenna dynamically controls beam direction and shape, guaranteeing robust signal reception and transmission in challenging environments like urban clutter or adverse weather. The Ku-band receiving phased array antenna thus becomes a cornerstone for systems where reliability is non-negotiable.
n
Intelligent Beamforming for Broader Application Scenarios
n
One of the standout features of this antenna is its intelligent beamforming capability, which opens doors to a wider range of applications. Equipped with sophisticated beamforming algorithms, the system offers powerful adaptive beam control. It intelligently calculates and applies beam weights based on real-time array usage requirements, enhancing desired signal strength while effectively suppressing interference. This results in significantly improved signal quality and communication reliability across diverse operating conditions. From tracking low-earth-orbit satellites to supporting high-throughput data links, the Ku-band receiving phased array antenna excels in scenarios where precision and adaptability are paramount.
n
Scalable and Highly Integrated Design Ready for Future Demands
n
Designed with foresight, this antenna embraces scalability and high integration to meet future communication needs. It supports modular expansion and tiling, allowing for the construction of large-scale antenna arrays that can tackle higher system performance metrics. The highly integrated multifunctional chipset minimizes both size and weight while retaining full functionality, making it an ideal fit for the ongoing trends toward miniaturization and lightweight design in next-generation equipment. This forward-thinking approach ensures that the Ku-band receiving phased array antenna remains relevant as technology evolves, reducing the need for costly upgrades.
n
Beyond its technical elegance, the antenna’s design prioritizes practicality. Its compact dimensions and low power consumption make it suitable for mobile platforms like drones, vehicles, or maritime vessels. The ability to switch polarization modes—between left-hand/right-hand circular and horizontal/vertical linear—adds versatility for multi-standard communications. Meanwhile, high-performance metrics, such as a gain of ≥50 dB and sidelobe suppression of ≥12 dB, ensure minimal signal degradation, enhancing overall system efficiency. These attributes collectively position the Ku-band receiving phased array antenna as a transformative solution for professionals seeking reliability, flexibility, and future-proofing in their communication systems.
n
Technical Specifications at a Glance
n
| Parameter | Value |
|---|---|
| Frequency Range | 17.7 GHz – 21.2 GHz |
| Polarization Modes | Left-hand/Right-hand circular polarization, Horizontal/Vertical linear polarization |
| Beam Scanning Angle | Azimuth: 0°–360°; Off-axis: ±60° |
| G/T @ 20.2 GHz (Normal, circular polarization) | ≥1.5 dB/K (80K) |
| Scan Gain Drop @ 20.2 GHz | Off-axis 30°: ≤2.5 dB; Off-axis 45°: ≤3.5 dB; Off-axis 60°: ≤5.5 dB |
| Sidelobe Suppression @ 20.2 GHz (Normal) | ≥12 dB |
| Axial Ratio @ 20.2 GHz | Normal: ≤2 dB; Off-axis 60°: ≤6 dB |
| VSWR | ≤2.0 |
| Gain | ≥50 dB |
| Dimensions (Width × Width) | 118.4 mm × 118.4 mm (±0.5 mm) |
| Thickness | Not specified |
| Weight | ≤1 kg |
| Supply Voltage | 12 V |
| Power Consumption | ≤55 W |
n
In conclusion, the Ku-band receiving phased array antenna offers a robust blend of advanced technology, intelligent design, and scalable architecture, making it a top choice for demanding communication and radar applications. Its ability to deliver high gain, low noise, and adaptive beamforming ensures superior performance where it matters most. As the industry pushes toward miniaturization and higher efficiency, this antenna stands ready to meet those challenges head-on. Embrace the future of signal reception with this cutting-edge solution, and experience the difference that precision-engineered phased array technology can make in your operations.
