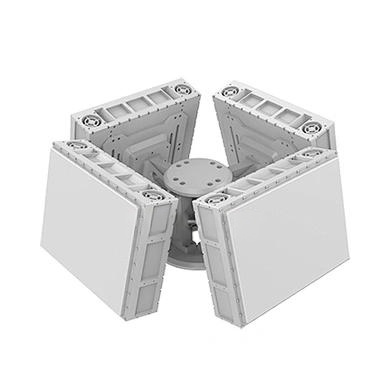

Next-Generation Ku Band Phased Array Radar for Unmatched Aerial Surveillance
nnThis advanced detection radar system represents a significant leap forward in aerial surveillance technology, seamlessly integrating Ku band phased array capabilities with high-precision sensing to deliver exceptional threat identification performance. Engineered for demanding security environments, this Active Electronically Scanned Array (AESA) radar employs a sophisticated two-dimensional active electronically scanned array, enabling the detection and tracking of small, low-altitude flying objects at distances up to 5 km. This makes it highly suitable for critical infrastructure protection, key facility security, and urban safety scenarios where conventional radar solutions often fall short.nnThe system’s innovative hybrid scanning architecture achieves full 360-degree coverage through a combination of electronic beam steering spanning -45° to +45° and mechanical rotation, effectively eliminating monitoring blind spots while maintaining outstanding tracking accuracy. Its advanced signal processing algorithms support real-time target classification, even in complex electromagnetic environments where traditional radar systems struggle to perform reliably. Built for stable operation in harsh conditions, this Ku band phased array solution features an IP65 rugged enclosure and functions consistently across extreme temperature ranges, ensuring dependable performance in the field.nn
Core Advantages of the Ku Band Phased Array AESA Architecture
nnThe AESA architecture at the heart of this system delivers core advantages that set it apart from other detection systems. Fast beam agility allows the radar to rapidly switch focus between multiple targets, while adaptive anti-interference nulling minimizes the impact of electronic jamming or clutter. The system supports reliable continuous operation, providing security teams with persistent situational awareness. As a professional detection radar system, it offers comprehensive monitoring with distance accuracy within 10 meters and angular precision better than 0.5 degrees, supporting clear identification of multiple targets within its 5 km detection range. Its modular design enables seamless integration with command centers and response systems, forming a layered security network that protects against emerging aerial threats.nn
Comprehensive Specifications for Critical Security Applications
nnFor users requiring detailed technical data, the following table outlines the key performance parameters of this detection radar system, ensuring clarity and precision for integration into security protocols.nn| Parameter | Specification |n|———–|—————|n| Frequency | Ku Band |n| Working System | Two-dimensional active phased array, three-coordinate radar |n| Target Speed Range | 1–100 m/s |n| Maximum Effective Detection Range | ≥5 km@tracking (typical target: DJI Phantom 4P 2.0) |n| Detection Direction (Electronic Scanning) | -45° to +45° |n| Detection Direction (Mechanical Scanning) | Covers 360° |n| Detection Pitch | -10° to +50° |n| Close-Range Blind Area (Tracking) | ≤150 m |n| Close-Range Blind Area (Searching) | ≤150 m |n| Distance Accuracy | ≤10 m |n| Azimuth Accuracy | ≤0.5° |n| Pitch Angle Accuracy | ≤0.8° |n| Ability to Search Multiple Targets Simultaneously | ≥64 |n| Protection Grade | IP65 |nn
Performance and Integration for Modern Security Needs
nnThe Ku band phased array radar offers higher resolution than lower-frequency systems while maintaining excellent atmospheric penetration, making it ideal for detecting small drones and other low-observable threats. Suitable for both fixed and mobile deployment, this detection radar system supplies security teams with accurate, actionable data to intercept potential aerial threats before they enter protected areas. Its high data update rates and strong multi-target tracking capability redefine small-target detection performance, setting new standards for perimeter protection in sectors such as airports, government buildings, and industrial facilities.nnBacked by a future-ready AESA architecture and scalable processing, this system serves as a long-term airspace security solution that adapts to new threat types via software updates. This ensures lasting operational effectiveness, allowing organizations to stay ahead of evolving risks without requiring hardware replacements. As a professional detection radar system, it integrates easily into existing security networks, providing comprehensive situational awareness and enhancing overall defense capabilities. The combination of 360-degree coverage, high precision, and robust design makes this Ku band phased array radar an indispensable tool for modern aerial surveillance, delivering peace of mind in an era of increasingly sophisticated threats.
