Introducing the MOP3308-20T6000: A Premier Fixed Mount Direction Finding Antenna Array
nn
In the dynamic field of radio frequency monitoring and signal intelligence, precision and reliability are non-negotiable. The MOP3308-20T6000 Fixed Mount Direction Finding Antenna Array stands as a professional-grade solution engineered for the demanding 20-6000MHz frequency spectrum. This advanced direction finding system is meticulously designed to deliver exceptional performance across a breathtakingly wide bandwidth, making it an indispensable tool for spectrum management, security surveillance, and electronic warfare applications. Whether deployed for long-term signal interception or critical threat localization, this antenna array provides the high-sensitivity and robust accuracy required for modern direction finding missions. Its seamless coverage from 20 MHz to 6 GHz ensures no signal goes undetected, bridging critical gaps that lesser systems often miss. When you require unwavering performance in a fixed installation, this specialized Fixed Mount Direction Finding Antenna Array sets a new industry standard for excellence.
nn
Unmatched Wideband Performance: The Core of the Antenna Array
nn

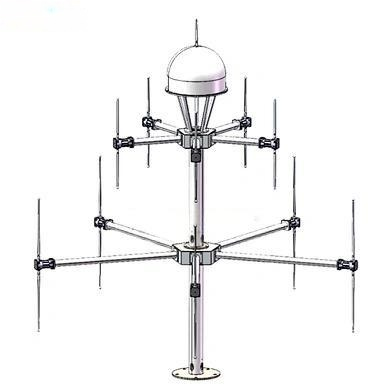

At the heart of the MOP3308-20T6000 lies a sophisticated four-layer, five-element uniform circular array architecture. This innovative design is perfectly tailored to address the unique direction finding needs of the entire 20-6000MHz band, ensuring comprehensive signal coverage without compromise. The device expertly manages four distinct frequency sub-bands: 20MHz-300MHz, 300MHz-600MHz, 600MHz-3000MHz, and 3000MHz-6000MHz. This layered approach allows for optimized signal capture in each segment, with the unit antenna gain increasing progressively as frequency rises. From a robust ≥5 dBi in the lower VHF/UHF regions to an impressive ≥12 dBi in the upper microwave spectrum, the antenna guarantees high-sensitivity reception even for faint or distant signals. Such performance is critical for precise direction finding in challenging electromagnetic environments.
nn
Exceptional Precision in a Fixed Mount Direction Finding Antenna Array
nn
Accuracy is the ultimate metric for any direction finding system, and the MOP3308-20T6000 delivers with outstanding reliability. Supporting 360° omnidirectional coverage, this lineup enables instantaneous signal localization from any azimuth. The system achieves a reference direction finding accuracy of 2° RMS, providing operators with the confidence to pinpoint signal sources with remarkable consistency. This level of precision is made possible by the carefully calibrated array geometry and advanced processing algorithms integrated into the design. Whether you are tracking intermittent transmissions or conducting persistent surveillance, the Fixed Mount Direction Finding Antenna Array ensures that your data is both actionable and trustworthy, reducing ambiguity in high-stakes operational scenarios.
nn
Technical Specifications of the Fixed Mount Direction Finding Antenna Array
nn
Understanding the exact parameters of the MOP3308-20T6000 is essential for integration and deployment. The following table outlines all critical technical data for this direction finding antenna array:
nn
| Parameter | Specification / Value |
|---|---|
| Product Model | MOP3308-20T6000 |
| Frequency Bands | 20MHz–300MHz, 300MHz–600MHz, 600MHz–3000MHz, 3000MHz-6000MHz |
| Polarization Mode | Vertical polarization |
| Direction Coverage | 360° |
| Characteristic Impedance | 50Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤2.5 (typical value) |
| Unit Antenna Gain (by band) | 20MHz to 300MHz: ≥5 dBi (typical) |
| 300MHz to 600MHz: ≥7 dBi (typical) | |
| 600MHz to 3GHz: ≥10 dBi (typical) | |
| 3GHz to 6GHz: ≥12 dBi (typical) | |
| Direction Finding Accuracy | ≤2° RMS (reference value) |
| Output Interface | N-50K or SMA-50K (optional) |
| Dimensions | ≤Φ2500mm × H2400mm |
| Weight | ≤56 kg |
| Color | Gray |
nn
Ruggedized Construction for Reliable Fixed Installations
nn
Designed exclusively as a fixed mount solution, the MOP3308-20T6000 is built to endure harsh outdoor environments. The array features excellent wind resistance and strong corrosion resistance, ensuring long-term performance even in coastal, high-altitude, or industrial settings. Its durable gray industrial finish not only provides a professional appearance but also adds a layer of protection against the elements. The output interface can be specified as either N-50K or SMA-50K, offering flexibility to integrate with common coaxial cabling and receiver systems. With a compact footprint of ≤Φ2500mm by H2400mm and a total weight of ≤56 kg, it is engineered for straightforward mounting on towers, rooftops, or dedicated masts. This robust construction makes it an excellent choice for permanent deployment where consistent, unattended operation is required.
nn
Conclusion: The Definitive Choice for Wideband Direction Finding
nn
The MOP3308-20T6000 represents the pinnacle of engineering for wideband direction finding applications. By combining a high-gain, four-layer array structure with wide-spectrum coverage from 20MHz to 6GHz, this antenna array delivers uncompromising performance for operators who demand the very best. Its impressive 2° RMS accuracy, 360° coverage, and reliable 50Ω impedance make it a versatile tool for everything from regulatory spectrum monitoring to advanced signal intelligence gathering. Furthermore, the rugged, weather-resistant design ensures that this Fixed Mount Direction Finding Antenna Array remains a trustworthy asset for years to come. For any agency or organization seeking to elevate their direction finding capabilities across a full octave of frequencies, the MOP3308-20T6000 is the definitive solution—combining precision, durability, and coverage in a single, integrated package.
